Quick Details
-
Application:
-
Hotel
-
Design Style:
-
Traditional
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Hitex
-
Model Number:
-
HCS-220
-
Product Name:
-
220g Fireproof Calcium Silicate Board
-
Color:
-
White
-
Density:
-
220(±10%)
-
Pressure Strength:
-
≥0.50Mpa
-
Flexural Strength:
-
≥0.35Mpa
-
Thermal Conductivity:
-
≤0.050 +0.00011t
Quick Details
-
Warranty:
-
NONE
-
After-sale Service:
-
NONE
-
Project Solution Capability:
-
NONE
-
Application:
-
Hotel
-
Design Style:
-
Traditional
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Hitex
-
Model Number:
-
HCS-220
-
Product Name:
-
220g Fireproof Calcium Silicate Board
-
Color:
-
White
-
Density:
-
220(±10%)
-
Pressure Strength:
-
≥0.50Mpa
-
Flexural Strength:
-
≥0.35Mpa
-
Thermal Conductivity:
-
≤0.050 +0.00011t

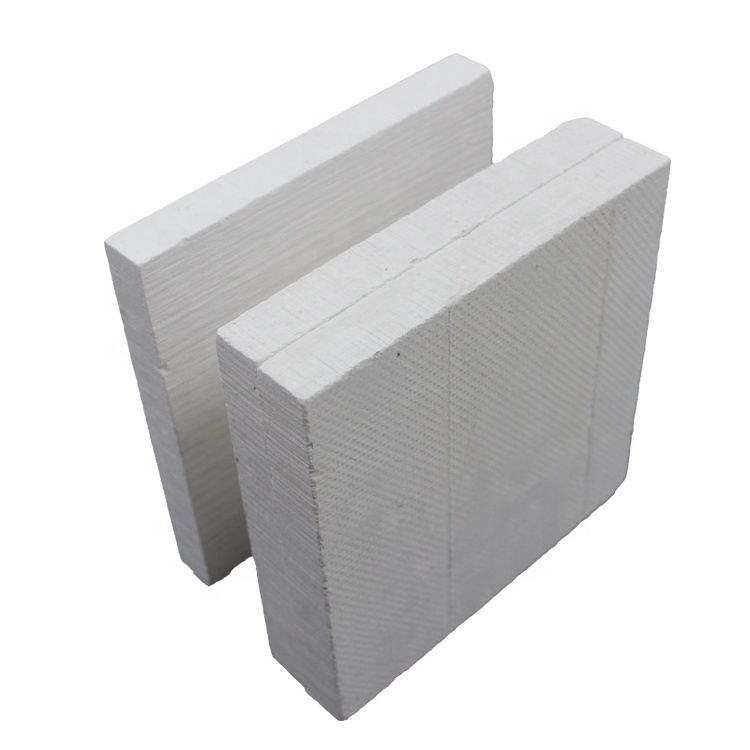

220g Fireproof Calcium Silicate Board
C alcium silicate board is composed of high-grade siliceous materials and lime refractory with the mixture of natural fiber as reinforcing material. It offers excellent fireproof performance and moisture-resistance and long life service.
*For External Wall & Ceiling
*For Internal Wall, Partition & Ceiling
*The Decorative applications
*The Sub-roof board
*The Underlay board for Floor and Wall tile
*Good durability, can bear high temperature within the limit of continuous heat load
*Low thermal conductivity, in the whole range is used with unmatched adiabatic performance
*Light weight, high strength. It is the highest in these hard thermal insulation products
*Better durability, use for a long time without powder
*Construction with ordinary carpenter applicability, tools can be optional to cut products
*Used safety, hygiene. Excluding asbestos, sulfur, chlorine such poisonous substances
*Fear water, but after drying also can be used
HCS Physical Performance Index:
| Items | Unit | HCS-170 | HCS-220 | HCS-270 |
| Bulk Density | Kg/m3 | 170 ( ±10% ) | 220 ( ±10% ) | 270 ( ±10% ) |
| Pressure Strength | MPa | ≥0.40 | ≥0.50 | ≥0.60 |
| Flexural Strength | MPa | ≥0.30 | ≥0.35 | ≥0.40 |
| Thermal Conductive | W/m.k |
≤0.048
+0.00011t |
≤0.050
+0.00011t |
≤0.056
+0.00011t |
| Temp. limit | ℃ | 1000 | 1050 | 1050 |
| Linear Shrinkage | % |
≤1.50
(1000℃,3hrs) |
≤1.50
(1000℃,3hrs) |
≤1.50
(1000℃,3hrs) |
Block Sizes and Dimensional Tolerances:
| Length ( ±3mm ) | Width ( ±3mm ) | Thickness ( +2mm,-1.5mm ) |
| 610 | 303 , 300 , 150 | 25—140 |
| 600 | 300 | 25—140 |
| 400 | 250 | 25—140 |
| 1000 | 500 | 25—140 |
| 1200 | 600 | 25—140 |
* We also supply special size and type.
Hitex is supplying various of high temperature fabrics &textiles for thermal insulation, fire fighting, welding & cutting protecting, sealing & gaskets, refractory and composite industries. The technical fabrics are available with difference coating & treatment to working for extreme temperature and conditions etc.
If you have any inquiry, welcome to ask for quote and we will relpy you as soon as possible.
Q1.You are a trading company or manufacturer?
We are manufacturer with more than 10 years production experience, and we have our own factory in yuyao
.
Q2.Can you send me a sample? Is it free?
Yes, the samples is free, but the courier charge should be on your side
Q3.Mode of transportation?
By sea or by air
Q4.How about the Delivery time?
Usually around 2-3 weeks after order confirmed
Q5.Can you product the customized goods?
Surely, we can be customized according to your demanding.
Q6.Do you have other production?
Certainly, We, Hitex are supplying various of high temperature fabrics &textiles for thermal insulation, fire fighting, welding & cutting protecting, sealing & gaskets, refractory and composite industries. The technical fabrics are available with difference coating & treatment to working for extreme temperature and conditions etc.
Q7.What kinds of payment you accept?
We accept T/T, D/A, L/C,D/P,O/A
