Quick Details
-
Brand Name:
-
EMCSOSIN
-
Model Number:
-
RV ESD
-
Product name:
-
emi/emc test equipment esd simulators for sale with emp gun
-
Application:
-
antistatic test for automotive/ road vehicles
-
Standard:
-
IEC/ EN 61000-4-2, ISO 10605
-
Discharge mode:
-
Contact and air discharge
-
Output voltage:
-
0.2~ 30kV
-
Discharge resistor:
-
2000Ω 330Ω
-
Power supply:
-
220V 50Hz (custom)
-
Weight:
-
25kg
-
Certificate:
-
ISO9001
Quick Details
-
Warranty:
-
12 Months, 1 Year
-
Power:
-
Electronic
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
EMCSOSIN
-
Model Number:
-
RV ESD
-
Product name:
-
emi/emc test equipment esd simulators for sale with emp gun
-
Application:
-
antistatic test for automotive/ road vehicles
-
Standard:
-
IEC/ EN 61000-4-2, ISO 10605
-
Discharge mode:
-
Contact and air discharge
-
Output voltage:
-
0.2~ 30kV
-
Discharge resistor:
-
2000Ω 330Ω
-
Power supply:
-
220V 50Hz (custom)
-
Weight:
-
25kg
-
Certificate:
-
ISO9001

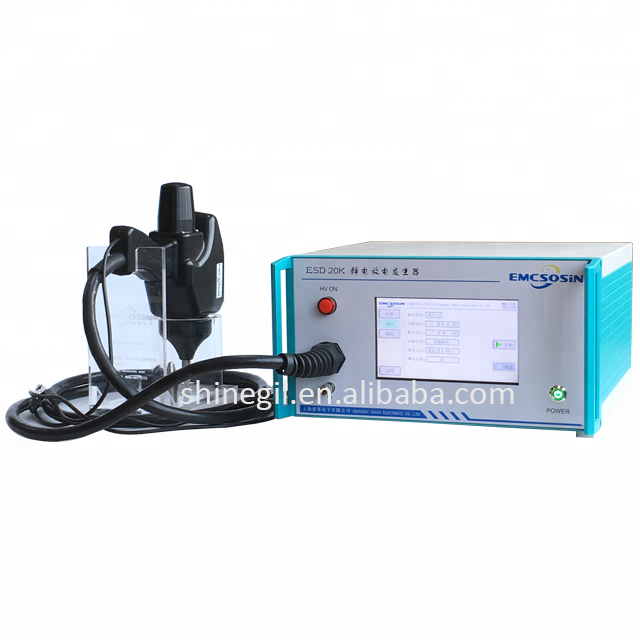

emi/emc test equipment esd simulators for sale with emp gun
Electrostatic discharge (ESD) is a common natural phenomenon. The effects of ESD on electrical and electronic equipments, devices or systems are everywhere. It is a very high degree of harmful electromagnetic energy. Only the improve the level of anti-static interference can ensure the safe use of electronic products.
The Electrostatic Discharge Immunity Test is the most common immunity test in the field of electromagnetic compatibility (EMC) testing and it is demanding a lot in the automotive field. RV ESD (Automotive Electrostatic Discharge Generator) is designed to evaluate the performance of automotive electronic products, devices and systems when subjected to electrostatic discharge as defined in the latest standard ISO 10605.
- Fully Compliant with latest Standard ISO 10605
- User friendly 7” Touch Panel Display
- Support multi-language & facilitate users
- Built-in environment self-test program
- Programmable operation
- Pre-programmed IEC/ EN 61000-4-2 test settings
- Very convenient to replace the discharge modules to meet different standards of the test requirements
- RS232 interface, PC control operation & printable test report
- Comfortable use and convenient operation
|
Model |
RV ESD |
|
Output Voltage |
0.2~±30KV |
|
Polarity of the output voltage |
Positive/ Negative/ Alternating |
|
Energy storage capacity |
150pF/ 330Ω 150pF/ 2000Ω 330pF/ 2000Ω 330pF/ 330Ω |
|
Discharge resistor |
2000Ω , 330Ω |
|
Discharge current rise time |
0.6~1ns |
|
Holding Time |
≥5s |
|
Discharge Mode |
Contact Discharge & Air Discharge |
|
Operating Modes |
Single discharge & Repetitive discharges |
|
Discharge Trigger |
Manual, automatic or remote |
|
Working Mode |
IEC level mode/ Program mode/ Auto voltage rising patterns |
|
Discharge Interval |
0.05~9.99s |
|
Discharge Count |
1~9999 |
|
Power Supply |
AC220V ±10%, 50/ 60 Hz |
|
Ambient Temperature |
15℃~35℃ |
|
Weight |
10kg |
