Quick Details
-
Use on:
-
The auto Industry
-
Work for:
-
Solar Photovoltaic
-
Glue type:
-
Hot melt Adhesive
-
Glue 1:
-
Silica Gel
-
Glue2:
-
EMI Conductive Adhesive
-
Glue3:
-
AB glue resin expoxy uv
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Application:
-
Electronics Industry
-
Use for:
-
LED lighting Industry
-
Use on:
-
The auto Industry
-
Work for:
-
Solar Photovoltaic
-
Glue type:
-
Hot melt Adhesive
-
Glue 1:
-
Silica Gel
-
Glue2:
-
EMI Conductive Adhesive
-
Glue3:
-
AB glue resin expoxy uv
Product Describtion

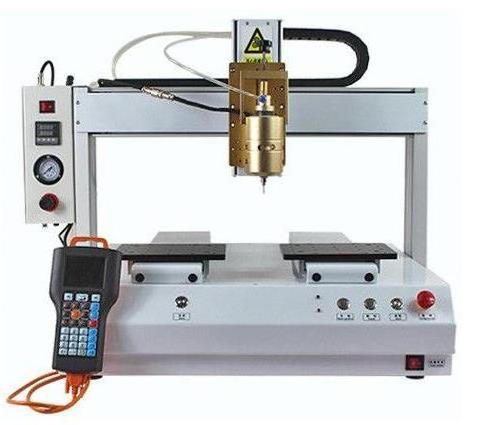

Parameter:
| Type Number | XHL-D661R |
| X | 600mm |
| Y1 | 600mm |
| Z | 100mm |
| U | 360° |
| L | 516 |
| W | 585 |
| H | 645 |
| Weight | 35kg |
| 300MM/S (Can be customized to Max 800MM) | |
| ±0.02MM--0.05MM | |
| Independent research and development | |
| Stepping motor + synchronous belt +CSK guide rail | |
| It can store 1,000 sets of processing data, and a single processing file can occupy 3M storage space at most (5,000 processing points). | |
| Handheld box 256M, offline card 32M, single processing file occupies 3M storage space at most (100,000 processing points) | |
| CAD,CORELDRAW | |
| AC220V 50--60HZ 350W | |
Product feature:
1.It has the functions of drawing points, lines, arcs, circles, irregular curves and continuous tween input programs, and can be used for three-dimensional dispensing.
2.any point, line, surface, arc and other irregular curve continuous dispensing function.
3.high-speed, low noise speed DC brushless motor makes dispensing better.
4.the static eliminator can eliminate static electricity within ±100V.
5.automatic compensation function of dispensing strength, making operation more convenient.
6.XY area array, translation rotation operation function, anti-use tray, suitable for different work positioning.
7.Support three-axis spatial linear interpolation, three-axis spatial circular interpolation, and elliptical arc interpolation.
8.support computer graphics import function, can import PLT file, TCF file and G code file.
Suitable Glue
Silicone, EMI conductive adhesive, UV adhesive, AB adhesive, instant adhesive, epoxy resin adhesive, sealant, hot glue, grease, silver glue, red glue, solder paste, thermal grease, solder paste, transparent paint, screw fixing Agents, etc. Main use: bonding, filling, coating, sealing, filling, dripping, linear/arc/round coating in product process.
Application
Sensors, relays, power adapters, electronic toys, sounders, electronic components, household appliances, electric vehicle controllers, computer digital products, crafts, mobile phone boards, coil products, button products, battery boxes, speakers Dot glue bonding; speaker packaging and dispensing, optical semiconductor, mobile phone battery, laptop battery packaging, PCB board bonding, COB, IC, PDA, LCD sealing, IC packaging, IC bonding, chassis bonding, Optical device processing, hardware parts packaging glue, quantitative liquid filling, chip bonding, automotive mechanical parts coating, mechanical seals, etc.
