Quick Details
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SARY
-
Certification:
-
NONE
Products Description
Products Description

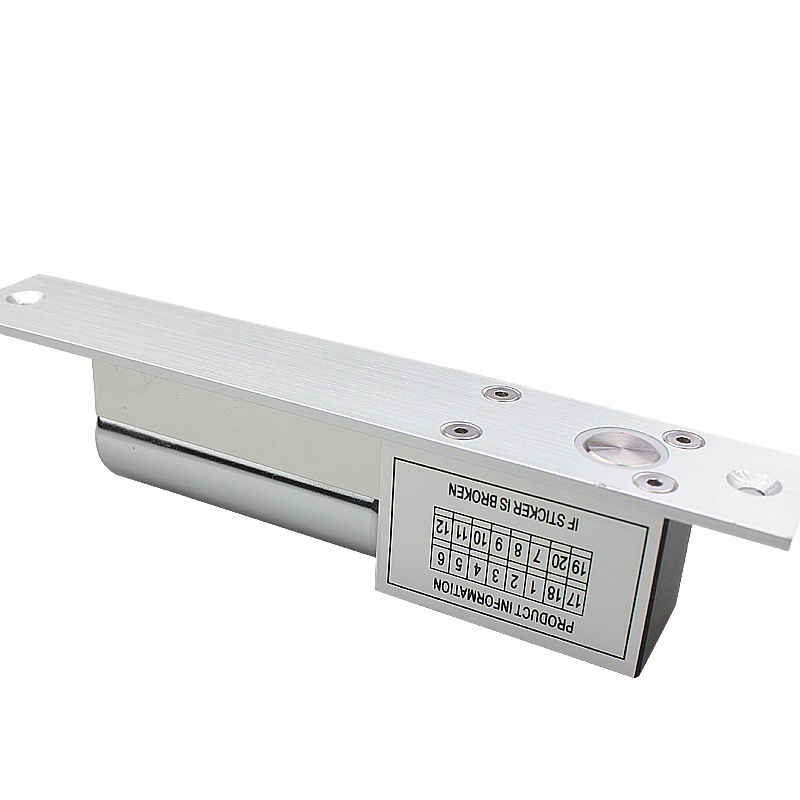

High Quality DC12V Fail Safe Electric Bolt Lock for Door Access Control Security System This door lock is special in design with durable material. It can protect your home or business shops. Low operational and standby current. It's especially suitable for glass doors. Great choice for you.
Features: 1]100% brand new and high quality. 2]500,000 times power locks durability. 3]High-strength aluminum lock body, stainless steel bolt. 4]Support 0, 3, 6 seconds time delay adjustable(Optional). 5]With no external interference, making it more stable and safer. 6]Ultra-low-power design, more durable and more environmentally friendly. 7]Secure mode: The door will lock while supplied with power, and unlocked without power.
8]Support lock status signal feedback
Product Paramenters
Product Paramenters
|
Model Number
|
SY-602
|
||||||
|
Product Name
|
5-wire delay electric mortise lock with feedback
|
||||||
|
Input Voltage
|
DC12V
|
||||||
|
Start Current
|
900mA
|
||||||
|
Standby Current
|
180mA
|
||||||
|
Extension of time
|
Extend the unlocking time, adjustable 0/3/6S three time periods
|
||||||
|
Feedback signal
|
With normally open and normally closed state signal output
|
||||||
|
Working Mode
|
Power-on induction magnetic lock / Power off to unlock
|
||||||
|
Product size
|
200*34*41mm
|
||||||
|
product weight
|
510g
|
||||||
Metal structure, safe and durable
The diameter of stainless lock core is 15mm, extending the length of 15MM
The electric bolt lock can extend the unlocking time
Support 0, 3, 6 seconds time delay adjustable
5-wire electric mortise lock, support lock status signal feedback
Red-Power supply(+)/Black Power ground(-)/Yellow-(NC)/White-(COM)/Green-(NO)
Product Size
Product Size
Details Images
Details Images
Apply wooden door, glass door, metal door, fireproof door, any frame doors, etc
If your door is glass frameless door, need to install the door holder
Wiring Diagram
(Both of the access control keypad, power supply, door exit button are not included in the package, need to buy extra)
