Quick Details
-
Model Number:
-
CHL-5100
-
Protection Level:
-
IP65
-
Operating Temperature:
-
-5℃ to +65℃
-
Max. Current:
-
10A
-
Name:
-
Limit Switch
-
Humidity:
-
<95% RH
-
Certification:
-
CE,CCC,ISO9001
Quick Details
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
TNHA
-
Model Number:
-
CHL-5100
-
Protection Level:
-
IP65
-
Operating Temperature:
-
-5℃ to +65℃
-
Max. Current:
-
10A
-
Name:
-
Limit Switch
-
Humidity:
-
<95% RH
-
Certification:
-
CE,CCC,ISO9001

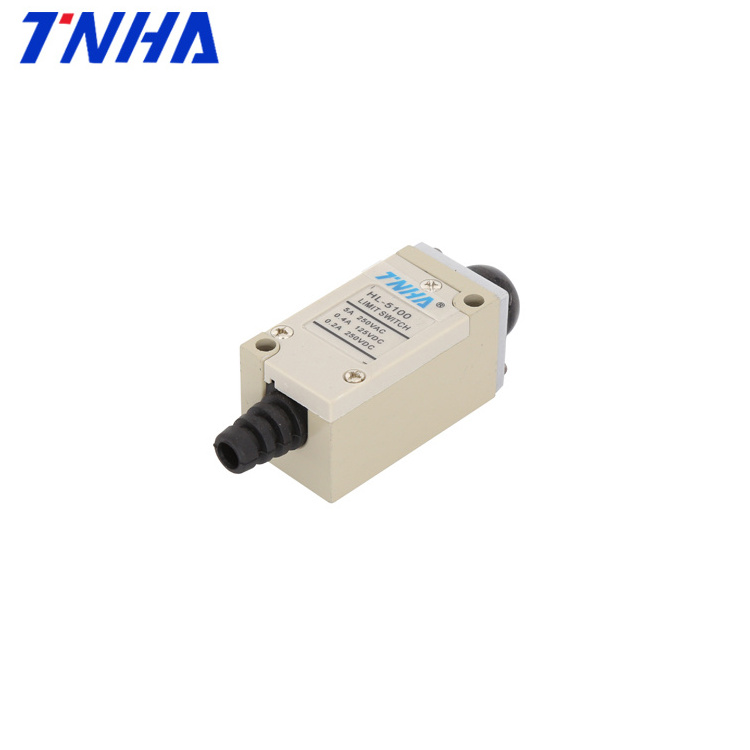

Product Pictures
Product Description
Model No. | CHL-5100 |
Name | Limit switch |
Double Break Mechanism | INO+INC Force Break snap action |
Rated Voltage/ Current | 10A, 125, 250VAC / 6A, 380VAC For inductance Load, Cos®=0.4 |
Contact Resistance | 25m Q max. (initial value) |
Insultation Resistance | 100mfi min. (at 500VDC) |
Dielectric Strength | 1000VAC,50/60 HZ for 1 minute between terminals of the same polarity |
1500VAC,50/60 HZ for 1 minute between current-carrying and non-current-carrying metal parts | |
1500VAC,50/60 HZ for 1 minute between each terminal and ground | |
Electrical Life | 500,000 at 10A 250VAC Resistive |
Mechanical Life | 10,000,000 operations min. (under rated conditions) |
Operating Speed | 5mm/s to 0.5m/s |
Degree of Protection | IP65 |
Ambient Temperature Rised | Max 30°C over ambient temperature at rated voltage/current |
Conformed Standards | Cenelec EN 50041,EN 50047,IEC 337-1,VDE 0660 |
Shock Resistance | Mechanical durable: 1000m/s²min. |
Malfunction: 300m/s²min. | |
Vibration Frequency | Malfunction: 10 to 55HZ 1.5mm double amplitude |
