- Product Details
- {{item.text}}
Quick Details
-
Port Size:
-
1''
-
Orifice Size:
-
25mm
-
Pipe Connection:
-
Female Threaded
-
Thread Type:
-
G
-
Body Material:
-
Plastic (Nylon)
-
Diaphragm Material:
-
NBR
-
Pressure Range:
-
1 to 10 bar
-
Standard Coil Voltage:
-
12VDC, 24VDC, 24VAC, 110VAC, 220VAC
-
Latching Coil Voltage:
-
DC9-20V, Pulse Width (20-500mSec)
-
Manual Flow Regulator:
-
With
Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
GG25-M
-
Port Size:
-
1''
-
Orifice Size:
-
25mm
-
Pipe Connection:
-
Female Threaded
-
Thread Type:
-
G
-
Body Material:
-
Plastic (Nylon)
-
Diaphragm Material:
-
NBR
-
Pressure Range:
-
1 to 10 bar
-
Standard Coil Voltage:
-
12VDC, 24VDC, 24VAC, 110VAC, 220VAC
-
Latching Coil Voltage:
-
DC9-20V, Pulse Width (20-500mSec)
-
Manual Flow Regulator:
-
With
Products Description

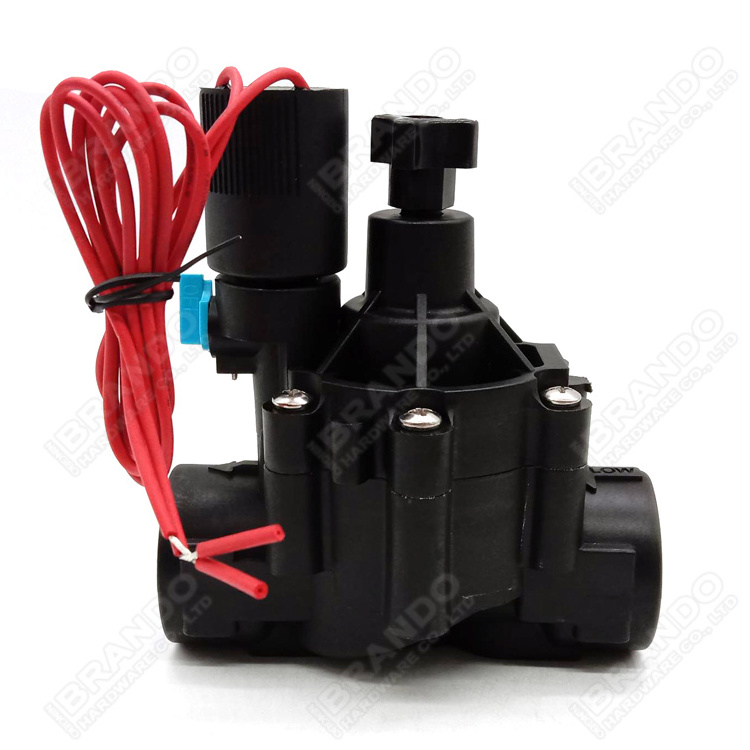

A water irrigation solenoid valve is an electrically controlled valve to regulate the flow of water. By applying a voltage over the coil, the valve opens and the liquid can flow through. They have a robust construction and are optionally equipped with manual flow control, so the desired flow can be adjusted. Most models have an override function, the valve can be opened manually if needed. Furthermore, they are equipped with a dirt particle filter. Our irrigation solenoid valves are available with a wide selection of control voltages: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC.
Technical Data
|
Model No
|
GG10
|
GG15
|
GG20
|
GG25
|
GG20-M
|
GG25-M
|
GG32-M
|
GG40-M
|
|||||||
|
Manual Flow Regulator
|
Without
|
|
|
|
With
|
|
|
|
|||||||
|
Orifice Size
|
10
|
15
|
20
|
25
|
20
|
25
|
32
|
40
|
|||||||
|
Port Size
|
3/8''
|
1/2''
|
3/4''
|
1''
|
3/4''
|
1''
|
1 1/4''
|
1 1/2''
|
|||||||
|
Max. Flow Range
|
2m³/h
|
3m³/h
|
5m³/h
|
9m³/h
|
5m³/h
|
9m³/h
|
15m³/h
|
21m³/h
|
|||||||
|
Working Pressure Range
|
1 to 10 bar
|
|
|
|
|
|
|
|
|||||||
|
Coil Voltage
|
Standard Coil: 220VAC, 110VAC, 24VAC (50/60Hz), 24VDC, 12VDC, 9VDC (Optional)
Latching Coil: DC9-20V, Pulse Width (20 to 500mSec)
|
|
|
|
|
|
|
|
|||||||
|
Body Material
|
Plastic (Nylon)
|
|
|
|
|
|
|
|
|||||||
|
Diaphragm Material
|
NBR (Standard), EPDM (Optional)
|
|
|
|
|
|
|
|
|||||||
|
Operation
|
Diaphragm Pilot Operated
|
|
|
|
|
|
|
|
|||||||
Main Dimension
|
Model Number
|
L
|
W
|
H
|
|||
|
Without manual flow regulator
|
|
|
|
|||
|
GG10
|
74mm
|
40mm
|
102mm
|
|||
|
GG15
|
76mm
|
40mm
|
104mm
|
|||
|
GG20
|
115mm
|
83mm
|
123mm
|
|||
|
GG25
|
115mm
|
84mm
|
125mm
|
|||
|
With manual flow regulator
|
|
|
|
|||
|
GG20-M
|
114mm
|
83mm
|
133mm
|
|||
|
GG25-M
|
115mm
|
84mm
|
135mm
|
|||
|
GG32-M
|
135mm
|
96mm
|
156mm
|
|||
|
GG40-M
|
136mm
|
97mm
|
167mm
|
|||
OEM ODM Service
Focus on your demands, Offer you best solution:
√
Contact us if some points you have doubt
√
Contact us if somewhere need to change
√
Contact us if not the one you are looking for
√
Contact us if you are doing designing
Irrigation Solenoid Valve Types
3/8'' to 1''
3/4'' to 1 1/2''
2'' to 6''
1 1/2'' to 2''
3'' to 4''
3/4'' to 1 1/2''
(Normally Open)
3'' to 10''
3/4'' to 1 1/2''
(Pressure Reducing)
(Pressure Reducing)
3/4'' to 1 1/2''
(Pressure Reducing)
