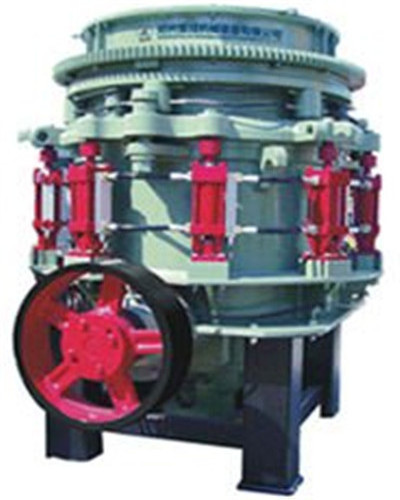

Latest full-automation high efficiency stone cone crusher with reasonable price
Cone Crusher has been developed to crush high or medium hardness material, such as iron ore ,copper ore, limestone, quartz, granite, and sand stones, etc., in metallurgical, construction, road building, chemical, silicate Industries. This crusher has the advantage of reliable construction, high prodactivity,easy adjustment and less cost in operation.Standard type is for PYZ (secondary crush); middle type is for PYD (tertiary crush); short-head type is for primary and secondary crush.
| Type |
Outside diameter
Of crushing cone(mm) |
Max feed size
(mm) |
The adjusting range of discharger
(mm) |
Crushing capacity
(t/h) |
Electric motor power
(kw) |
Speed of Eccentric shaft
(r/min) |
weight
(T) |
Overall dimensions
(L*W*H)(mm) |
|
| PYB | 600 | 600 | 65 | 15-25 | 40 | 30 | 356 | 5 | 2234*1370*1675 |
| PYD | 35 | 3-13 | 12-23 | 5.5 | 2234*1370*1675 | ||||
| PYB | 900 | 900 | 115 | 15-30 | 50-90 | 55 | 333 | 11.2 | 2692*1640*2350 |
| PYZ | 60 | 5-20 | 30-65 | 11.2 | 2692*1640*2350 | ||||
| PYD | 50 | 3-13 | 15-50 | 11.3 | 2692*1640*2350 | ||||
| PYB | 1200 | 1200 | 145 | 20-50 | 110-168 | 110 | 300 | 24.7 | 2790*1878*2844 |
| PYZ | 100 | 8-25 | 42-135 | 25 | 2790*1878*2844 | ||||
| PYD | 50 | 3-15 | 18-105 | 25.3 | 2790*1878*2844 | ||||
| PYB | 1750 | 1750 | 215 | 25-50 | 280-480 | 160 | 245 | 50.3 | 3910*2894*3809 |
| PYZ | 185 | 10-30 | 115-320 | 50.3 | 3910*2894*3809 | ||||
| PYD | 85 | 5-13 | 75-230 | 50.2 | 3910*2894*3809 | ||||
| PYB | 2200 | 2200 | 300 | 30-60 | 59-1000 | 280-260 | 220 | 80 | 4622*3302*4470 |
| PYZ | 230 | 10-30 | 200-580 | 80 | 4622*3302*4470 | ||||
| PYD | 100 | 5-15 | 120-340 | 81.4 | 4622*3302*4470 | ||||
For six years, our products and services have been enjoying a good reputation in this import and export market.
We provide the best pre-sale, sale and after-sale service. We have a professional working team that can design for you, to ensure that you buy the best quality and fittest machine in least money .
After sale, we provide one-year warranty to make sure that your machine runs functionally and consistently. We also provide lifelong services and spare parts for the machine.
Q: There are too many types of machines for choice, I don't know how to choose the fittest.
A: If you plan to buy machines, please contact me and tell us the detail requirements about the machine you need, and we will give you a good recommendation according to your requirements.
Q: Why choose Dafu?
A: 1) We are Alibaba Assessed 6-year Gold Supplier;
2) Our company owns a factory manufacturing gypsum powder production line, gypsum board production line, sandstone equipments, autoclaves applicable in various fields and oil press for household and bussiness use. We are professional .
3) We provide good before and after sale service;
4) 100 % QC inspection before shippment;
5) Competitive price.
Q: None of your machine on sell meets our capacity requirements.
A: We are professional in manufacturing all sizes of gypsum production machines and autoclaves. The machine can be customized as your requests.
