Quick Details
-
Model Number:
-

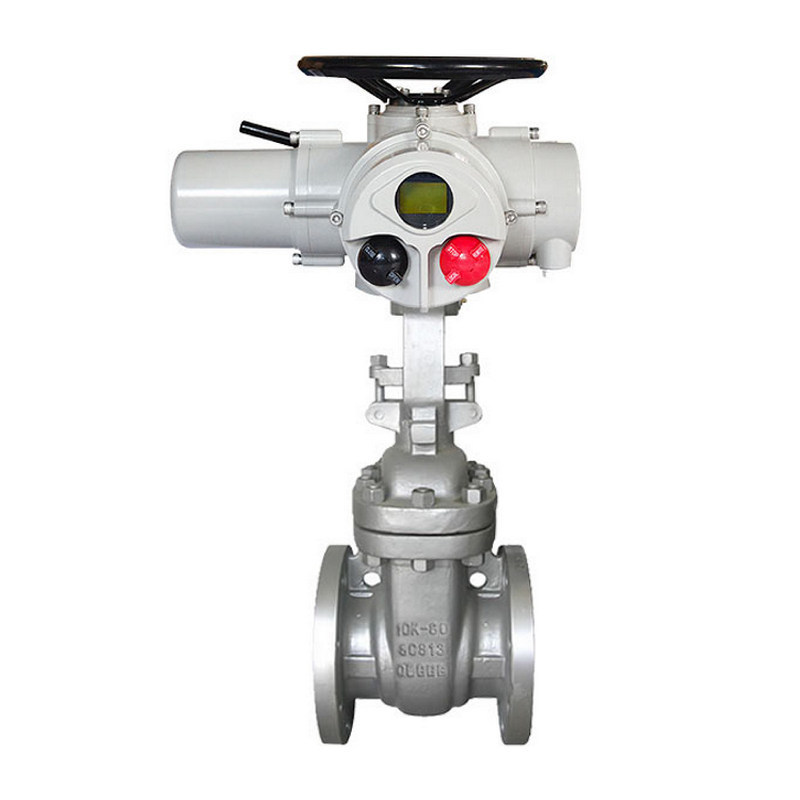

Z Series Multi-turn Motorized Gate Valve
-
Brand Name:
-
COVNA
-
Type:
-
Electric Gate Valve, Gate Valves
-
Control Mode:
-
Multi-Turn Electric Actuator
-
Number of Ways:
-
2 Way Gate Valve
-
Material:
-
SS304, SS316
-
Sealing Material:
-
PTFE
-
Pressure:
-
PN1.6MPa
-
End Connection:
-
Flanged
-
Voltage:
-
AC110~230V, 50/60Hz
Quick Details
-
Port Size:
-
2"~16", DN50~DN400
-
Warranty:
-
1 year
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
Z Series Multi-turn Motorized Gate Valve
-
Brand Name:
-
COVNA
-
Type:
-
Electric Gate Valve, Gate Valves
-
Control Mode:
-
Multi-Turn Electric Actuator
-
Number of Ways:
-
2 Way Gate Valve
-
Material:
-
SS304, SS316
-
Sealing Material:
-
PTFE
-
Pressure:
-
PN1.6MPa
-
End Connection:
-
Flanged
-
Voltage:
-
AC110~230V, 50/60Hz
Product Description
Advantage of COVNA Multi-turn Electric Gate Valve
●
Simple structure, easy to manufacturer and maintain
●
Small working stroke and short opening and closing time
● Good sealing performance, small friction between sealing surfaces and long life
● In the process of opening and closing, the friction of the sealing surface is smaller than that of the gate valve, which is
wear-resistant
● Usually only one sealing surface, good manufacturing process, easy to maintain
● Electric actuator is easy to operate
● Good sealing performance, small friction between sealing surfaces and long life
● In the process of opening and closing, the friction of the sealing surface is smaller than that of the gate valve, which is
wear-resistant
● Usually only one sealing surface, good manufacturing process, easy to maintain
● Electric actuator is easy to operate
|
Item
|
Z Series Intelligent Type Multi Turn Motorized Gate Valve JIS 10K Flanged Electric Gate Valve Stainless Steel Gate Valve
|
|
|
||
|
Applicable Standards
|
GB, DIN, ANSI, ASME, JIS, API
|
|
|
||
|
Size Range
|
DN15 to DN200
|
|
|
||
|
Operating Pressure
|
10bar, 16bar, 20bar, 40bar, 64bar, Class 150, Class 300
|
|
|
||
|
Body Material
|
Stainless Steel 304/316/316L
|
|
|
||
|
Temperature Of Media Normal Type
|
-22℉ to 356℉
|
|
|
||
|
High-Temperature Type
|
-22℉ to 842℉
|
|
|
||
|
End Connection
|
Flange
|
|
|
||
|
Gate Valve Body Design Standard
|
API600 / DIN3352 / KS B2361 / GB/T 12234
|
|
|
||
|
Suitable Media
|
Water, Air, Oil, Gas, Steam, Pulp, etc.
|
|
|
||
|
Voltage
|
DC-12V, 24VAC-24V, 110V, 220V, 380V
|
|
|
||
|
Actuator Type
|
ON OFF Type, Modulating Type or Intelligent Type
|
|
|
||
|
Application
|
Food & Beverage, Water & Wastewater, Ultra Pure Water, Desalination, Chemical, Textile, Pharmaceutical, Pulp & Paper, Mining, Boiler and Power Industries
|
|
|
||
Dimension:
Electric Actuator
Features Of COVNA Multi-Turn Electric Actuator:
●High torque range up to 10,000Nm
●Wide ambient temperature from -40℃ to 100℃
●Suitable for high humidity environment
●Suitable for high humidity environment
●High protection class and high corrosion protection
●Divided by control method: ordinary type, intelligent switch type, intelligent adjustment type(Profibus Fieldbus, Modbus
Fieldbus, Hart Fieldbus, FF Fieldbus, Device Net Fieldbus)
●Available in 3-phase AC,1-phase AC and DC motors
●Handwheel for manual operation
●Suitable for gate valve, globe valve, ball valve and butterfly valve to allow your automation easier
●Divided by control method: ordinary type, intelligent switch type, intelligent adjustment type(Profibus Fieldbus, Modbus
Fieldbus, Hart Fieldbus, FF Fieldbus, Device Net Fieldbus)
●Available in 3-phase AC,1-phase AC and DC motors
●Handwheel for manual operation
●Suitable for gate valve, globe valve, ball valve and butterfly valve to allow your automation easier
Technical Parameter of Valve Body
