Quick Details
-
Brand Name:
-
ulink
-
Model Number:
-
Ulink L-0012C
-
Product name:
-

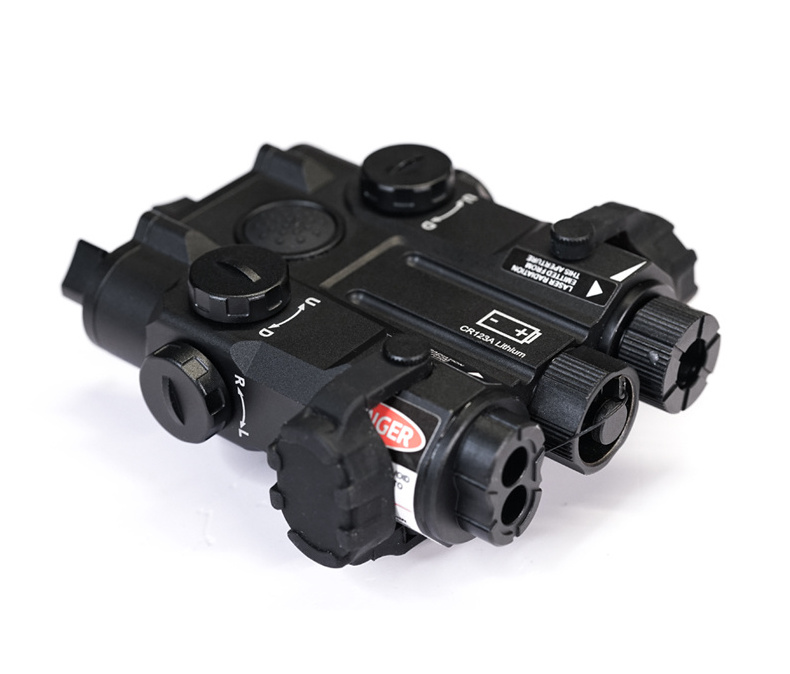

Ulink L-3in1
-
Green Laser:
-
520±10nm, <4mW/<10mW, Class 3B
-
Red Laser:
-
635±20nm, <4mW/<10mW, Class 3B
-
IR Laser:
-
830±15nm, <2mW/<24mW, Class 3B
-
IR Light Output:
-
830±15nm, <2mW/<30mW, Class 3B
-
Beam Divergence:
-
7 AT 30yd
-
Battery Type:
-
CR123A (1pcs)
-
Battery life:
-
8~23 hours
-
Weight:
-
354g
Quick Details
-
Type:
-
Scope Mounts & Accessories
-
Maximum Output Power:
-
5mw
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
ulink
-
Model Number:
-
Ulink L-0012C
-
Product name:
-
Ulink L-3in1
-
Green Laser:
-
520±10nm, <4mW/<10mW, Class 3B
-
Red Laser:
-
635±20nm, <4mW/<10mW, Class 3B
-
IR Laser:
-
830±15nm, <2mW/<24mW, Class 3B
-
IR Light Output:
-
830±15nm, <2mW/<30mW, Class 3B
-
Beam Divergence:
-
7 AT 30yd
-
Battery Type:
-
CR123A (1pcs)
-
Battery life:
-
8~23 hours
-
Weight:
-
354g
Products Description
|
Technical Details（Mechanics, Electronics & Environmental）
|
|
|
|
Dimensions (mm)
|
108 x 85 x 45
|
|
|
Weight without batteries (g)
|
340g
|
|
|
Weight with batteries (g)
|
354g
|
|
|
Shock resistance (G)
|
1000
|
|
|
Quick release
|
Yes
|
|
|
Battery type
|
CR123A
|
|
|
Battery life
|
8~23 HOURS
|
|
|
Operating temperature range (℃)
|
-20℃ to 50℃
|
|
|
Storage temperature range(℃)
|
-40℃ to 60℃
|
|
|
Waterproof
|
IP68
|
|
|
Specifications
|
Visible Laser
|
IR Laser
|
IR Illuminator
|
|
Eye safety
|
Class IIIb
|
Class IIIb
|
Class IIIb
|
|
Distance (m)
|
≥ 500m
|
400 - 2000m
|
200 - 2000m
|
|
Beam divergence, FWHM
|
0.5 ± 0.3
|
0.5 ± 0.3
|
1 - 105
|
|
Spot size@100m (mm)
|
50 ± 10
|
60 ± 10
|
/
|
|
Wavelength (nm)
|
520 ± 10
|
830 ± 15
|
830 ± 15
|
|
Laser colour
|
Green
|
/
|
/
|
|
Output power, L/H(mW)
|
< 4 / < 10
|
< 2 / < 24
|
< 2 / < 30
|
