Quick Details
-
Model Number:
-
XH-W3001
-
Material:
-
ABS
-
Temperature measuring range:
-
-50 ~ 110°C
-
Temperature control range:
-
-50 ~ 110°C
-
Accuracy:
-
±1℃
-
Resolution:
-
0.1°C
-
Power:
-
DC12V/DC24V/AC110V~220V
-
Output capacity:
-
10A
-
Product Size:
-
60 * 45 * 31 mm
-
Sensor Type:
-
NTC 10K waterproof sensor
-
Sensor wire length:
-
1meters including the porbe (Customized support)
-
Certification:
-
CE
Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
BONAJAY
-
Model Number:
-
XH-W3001
-
Material:
-
ABS
-
Temperature measuring range:
-
-50 ~ 110°C
-
Temperature control range:
-
-50 ~ 110°C
-
Accuracy:
-
±1℃
-
Resolution:
-
0.1°C
-
Power:
-
DC12V/DC24V/AC110V~220V
-
Output capacity:
-
10A
-
Product Size:
-
60 * 45 * 31 mm
-
Sensor Type:
-
NTC 10K waterproof sensor
-
Sensor wire length:
-
1meters including the porbe (Customized support)
-
Certification:
-
CE

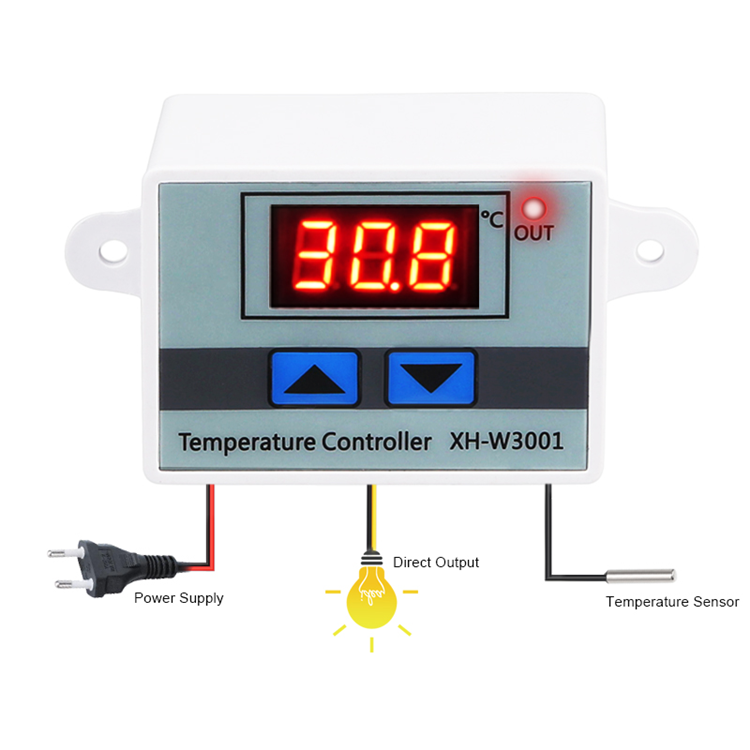

XH-W3001 Digital Temperature Microcomputer Thermostat 12V/24V/110V-220V with Probe Heat Cool Temp Thermostat Control Switch
Specification:
|
Temperature measuring range |
-50 ° C ~110 ° C |
|
Temperature Control Range |
-50 ° C ~110 ° C |
|
Resolution |
0.1 ° C |
|
Accuracy |
±1° C (-50 ° C ~ 70 ° C) |
|
Power supply |
110-220VAC 50/60Hz, 12VDC , 24VDC |
|
Output Relay |
Two Relay Cool 10A/220VAC; Heat 10A/220VAC |
|
NTC sensor |
1m |
|
Size |
60*45*31mm |
How to set
1. Press up button show the starting temperature.
2. Long press UP button the temperature display Flashing , Press the UP or Down button.
3. Set the start temperature value.
4. Press Down button show the Stop temperature.
5. Long press Down button the temperature display Flashing , press the UP or Down.
6. Button Set the stop temperature valu
e
