Quick Details
-
Material:
-
304 Stainless Steel Peanut Butter Grinder
-
Application:
-
Peanut Butter Grinding Machine
-
Function:
-
Multifunction Skippy Peanut Butter Grinder
-
Capacity:
-
200-300kg/h
-
Usage:
-
Peanut Butter Grinding Machine
-
Raw material:
-
Peanut, cocoa, sesame, beans,etc.
Quick Details
-
Place of Origin:
-
Henan, China
-
Product name:
-
Peanut Butter Maker Machine Skippy Peanut Butter Grinder
-
Name:
-
Peanut Butter Grinder
-
Material:
-
304 Stainless Steel Peanut Butter Grinder
-
Application:
-
Peanut Butter Grinding Machine
-
Function:
-
Multifunction Skippy Peanut Butter Grinder
-
Capacity:
-
200-300kg/h
-
Usage:
-
Peanut Butter Grinding Machine
-
Raw material:
-
Peanut, cocoa, sesame, beans,etc.
Commercial Grinding Machine Peanut Butter Maker Machine Skippy Peanut Butter Grinder

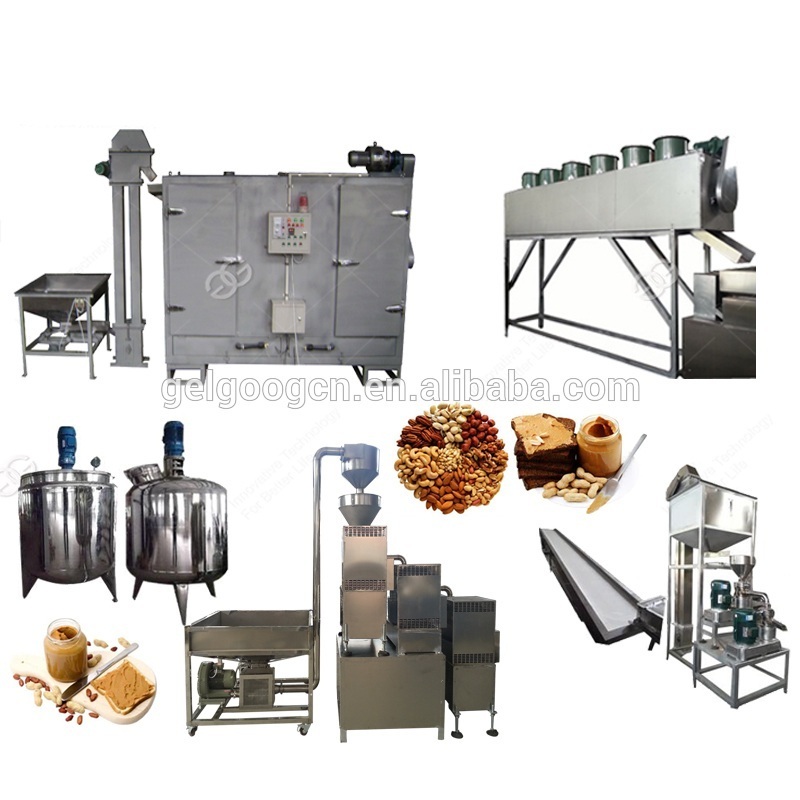

Instruction of Peanut Butter Production Plant:
Peanut butter production plant-----Roasting:
Batch roaster’s working temperature is 200-210 ºC, 20
30 minutes. Use batch roaster will bake some delicious smells.
Peanut butter production plant-----Cooling:
Peanut will be send cooling belt to cool.
Peanut butter production plant-----Peeling:
Put the roasted peanuts into peeler to take off the red skin, the double rollers will frication the red skin, the simple cyclone system will suck the red skins, most of them will be put in half-piece, then fall to the selecting conveyor, the over-roasted andun-blanched peanut kernel is picked up by manual or mechanical.
Peanut butter production plant-----Primary grinding:
Using steel grinder to make the first grinding.
Peanut butter production plant-----Second grinding:
Using colloid grinder to make the second grinding, the fineness of grinding is controlled below 7μm, temperature of grinding is controlled below 68C.
Peanut butter production plant-----Mixing:
Make the butter more homogeneous.
Peanut butter production plant-----Cooling:
The butter through second grinding should be cooled immediately. The temperature should go down 45C.
Peanut butter production plant-----Degasser:
Take out the air from peanut butter.
Peanut butter production plant-----Storage tank:
Settling down in the storage tank till the temperature drop to air temperature.
|
No. |
Name |
Power(kw) |
Size(mm) |
Quantity(set) |
|
1 |
Feeding Machine |
0.55 |
700*700*800 |
1 |
|
2 |
Hoister |
0.75 |
1000*500*2800 |
1 |
|
3 |
Continuous Roaster Machine |
24 |
3000*1200*2600 |
1 |
|
4 |
Elevator |
0.75 |
1000*500*2800 |
1 |
|
5 |
Continuous Cooling Machine |
5 |
3200*800*2400 |
1 |
|
6 |
Peeling Machine |
0.74 |
1100*350*1100 |
1 |
|
7 |
Selection Belt |
0.75 |
5000*800*1000 |
1 |
|
8 |
Elevator |
0.75 |
1000*500*2800 |
1 |
|
9 |
Storing and Feeding Machine |
0.55 |
700*700*2200 |
1 |
|
10 |
Grinding Machine |
5.5 |
900*350*900 |
1 |
|
11 |
Storage tank |
|
150L |
1 |
|
12 |
Paste pump |
2.2 |
1200*300*350 |
1 |
|
13 |
Mixing tank |
2.2 |
200L |
1 |
|
14 |
Vacuum tank |
2.2 |
200L |
1 |
|
15 |
Paste pump |
2.2 |
1200*300*350 |
1 |
|
16 |
Control cabinet |
|
|
1 |
|
17 |
Pipeline |
|
|
1. Which kind of Henan Gelgoog Company?
-- Henan Gelgoog Commercial & Trading Co.,LTD,has twenty years experience of the industry development .We have well-experienced managers. Outstanding engineers as well as well trained technical workers . By constant technical exchange with well wellknown firms of the same line in the world and also by introduction of advanced techniques and experiences into our company ,we have extablished a strong technical guarantee system .
-- We normally make voltage into 220V/50HZ/Single phase or 380V/50HZ/Three Phase.But it can be made accourding to clients' demand, like 110V/60HZ/Three phase.
3. What kind of packing box is?
-- we pack machines in a standard exporting plywood case, no vermin,germs.
help get better protection while transporting.
4. How long is the guarantee?
-- we promise guarantee as one year for non-human damage factor.
5. How should I do if meet some trouble while using?
-- don't worry about that. we are always be pleased to provide using support to
clients. we can take a video for showing how to resolve the problem. and write
detail resolution to you.
6. What's the payment mode?
--T/T,L/C,Western Union or MoneyGram.
