- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
supertech
-
Model Number:
-
ST-520B
-
Keyword:
-
Calendar Wire 3 :1 and Wire 2 :1 book double loop wire Binding machine
-
Way of working:
-
Semi-Automatic
-
Binding Capacity:
-
1/4" - 3/4"
-
speed:
-
1000books/h
-
Max. Binding width:
-
520mm
-
Air Pressure::
-
5-8Bar
-
Workbench Dimension::
-
680*310mm
-
Power::
-
1PH 220V 50/60HZ (other voltage on request)
-
Function:
-
double wire binding calendars, notebooks etc.
-
Related machine:
-
automatic paper punching machine, double wire binding
Quick Details
-
Type:
-
Wire Binding Machine
-
Power:
-
Electricity
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
supertech
-
Model Number:
-
ST-520B
-
Keyword:
-
Calendar Wire 3 :1 and Wire 2 :1 book double loop wire Binding machine
-
Way of working:
-
Semi-Automatic
-
Binding Capacity:
-
1/4" - 3/4"
-
speed:
-
1000books/h
-
Max. Binding width:
-
520mm
-
Air Pressure::
-
5-8Bar
-
Workbench Dimension::
-
680*310mm
-
Power::
-
1PH 220V 50/60HZ (other voltage on request)
-
Function:
-
double wire binding calendars, notebooks etc.
-
Related machine:
-
automatic paper punching machine, double wire binding
Book Binding wire making machine spiral wire binding machine calendar notebook binder A4 A3 sheet binding iron wire machine
Specification of Book Binding wire making machine spiral wire binding machine calendar notebook binder A4 A3 sheet binding iron wire machine

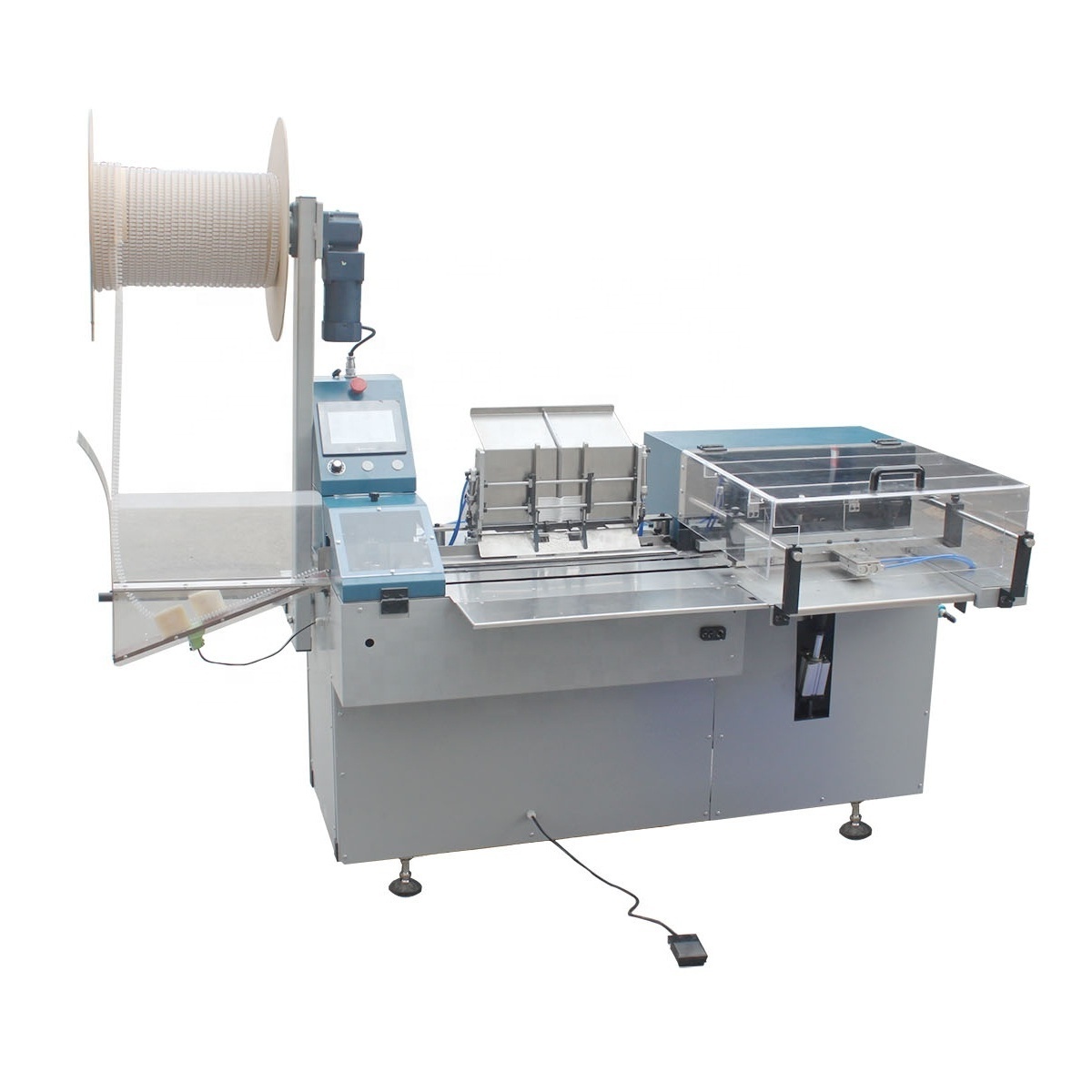

ST-RZ420 semi automatic Book Binding wire making machine spiral wire binding machine calendar notebook binder A4 A3 sheet binding iron wire machine is widely used for binding double loop wire notebooks, desk calendar and wall calendar etc. It can bind from size 1/4” to 1+1/4” without changing the binding tools. It will cut, convey and close the wire then drop on a conveyor. It increases the production efficiency and lowers the cost remarkably.
Specification of Book Binding wire making machine spiral wire binding machine calendar notebook binder A4 A3 sheet binding iron wire machine
| Max binding size | 420*420mm |
| Min binding size | 70*100mm |
| Wire binding capacity | 1/4”-1+1/4” |
| Binding thickness capacity | 1.5mm -27mm |
| Binding speed | 600-1100books/hour |
| Power | AC220V/1PH/50(60)HZ |
| Machine weight | 255KG |
| Max hanger length | 380mm |
| Compressed air pressure | 6-8bar |
| Dimension | 2220mm *1000mm*1800mm |
Main Feature of Book Binding wire making machine spiral wire binding machine calendar notebook binder A4 A3 sheet binding iron wire machine
1 , No need to change the binding tools as the binding height is adjustable for all the sizes from 1/4” to 1+1/4”
2 , It can be used to bind books or calendars with overhanging cover
3 , Option for calendar hanger feeder system and conveyor
4 , Controlled by computer, easy to setup
Please click the following pictures to see detailed information:
550*600mm automatic paper punching machine
double wire forming machine
Paper feeding&double wire binding & punching inline machine
Packaging and shipping
|
Packaging Detail: |
Strong wooden case for Book Binding wire making machine spiral wire binding machine calendar notebook binder A4 A3 sheet binding iron wire machine |
|
Delivery Detail: |
15 days after confirming the order |
