Quick Details
-
Brand Name:
-
AELAB
-
Model Number:
-
AE-40V328E
-
Temperature Range:
-
-20℃ ~-40℃
-
Ambient Temperature:
-
+10 ~ 32℃
-
Controller:
-
Microprocessor
-
Display:
-
LCD
-
Power Supply:
-
220V/50Hz
-
Rated Power:
-
300 W
-
Electrical Current:
-
1.6 A
-
Power Consumption:
-
4 kWh/24h
-
Capacity:
-
328L
-
Package Size(W*D*H)mm:
-
770*770*2040
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
AELAB
-
Model Number:
-
AE-40V328E
-
Temperature Range:
-
-20℃ ~-40℃
-
Ambient Temperature:
-
+10 ~ 32℃
-
Controller:
-
Microprocessor
-
Display:
-
LCD
-
Power Supply:
-
220V/50Hz
-
Rated Power:
-
300 W
-
Electrical Current:
-
1.6 A
-
Power Consumption:
-
4 kWh/24h
-
Capacity:
-
328L
-
Package Size(W*D*H)mm:
-
770*770*2040
Product Description

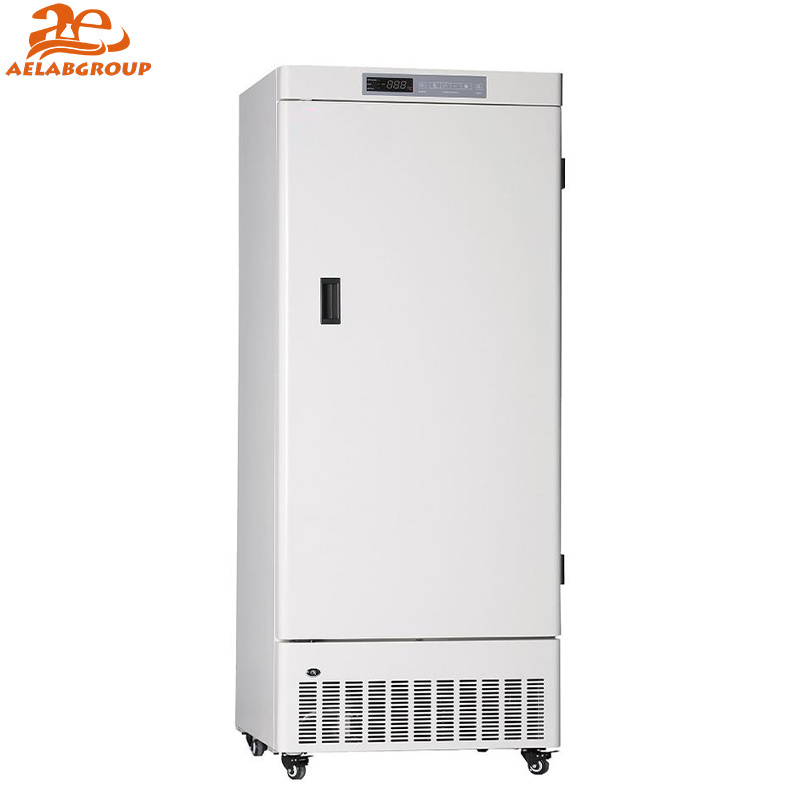

-40°C Medical Freezer
★ Precise temperature control, ensure good temperature uniformity.
★ Standard power failure alarm, 8 hours backup battery.
.
Application
:
-40°C medical deep freezers are designed to store vaccines, blood plasma, reagent and many other biological materials which is widely use in research institution, clinics, electronic and medical fields.
Features:
■ Accurate microprocessor controller to ensure the inside temperature uniformity.
■ HC green refrigerant for energy saving and environmental protection.
■ Upright freezers use quality color sprayed steel panel inside and outside.
■ Wide available voltage range: 187V~242V.
Security
:
■ Safety door lock and controller setting password to prevent unauthorized access.
■ Build-in back-up battery to display temperature and to operate audible and visual alarm system when power failure(Some models).
■ Inner doors to prevent cold air from leaking out when the outside door is opening (Some models).
■ Visual and audible alarm system: High/low temperature, power failure, sensor error, door ajar, low battery.
■ Power failure protection: turn on delay of the cooling system after power failure.
■ Controller error protection: the cooling system will remember the normal working cycle and keep working depending on this memory when controller or sensor failed.
Optional parts
:
■ Test hole, Data logger, Chart recorder, 115V/60HZ customized product.
Technical Specifications:
|
Model No.
|
AE-40V328E
|
|
|
Performance
|
|
|
|
Temperature Range
|
-30℃ ~-40℃
|
|
|
Ambient Temperature
|
+10 ~ 32℃
|
|
|
Controller
|
Microprocessor
|
|
|
Display
|
LCD
|
|
|
Noise
|
46 dB
|
|
|
Electrical Data
|
|
|
|
Power Supply
|
220V/50Hz
|
|
|
Rated Power
|
300 W
|
|
|
Electrical Current
|
1.6 A
|
|
|
Power Consumption
|
4 kWh/24h
|
|
|
Refrigeration System
|
|
|
|
Compressor
|
Chinese Brand * 1
|
|
|
Refrigerant
|
R290
|
|
|
Cooling Type
|
Direct
|
|
|
Defrost Type
|
Manual
|
|
|
Alarm
|
|
|
|
High/Low Temperature
|
Y
|
|
|
Sensor Error
|
Y
|
|
|
Door Ajar
|
Y
|
|
|
Power Failure
|
Y
|
|
|
Dimensions
|
|
|
|
Capacity
|
328L
|
|
|
Interior Size(W*D*H)mm
|
508*455*1393
|
|
|
Exterior Size(W*D*H)mm
|
673*676*1886
|
|
|
Package Size(W*D*H)mm
|
770*770*2040
|
|
|
N.t./G.t.(approx.)
|
113/131 kgs
|
|
|
Accessories
|
|
|
|
Castor
|
4
|
|
|
Shelf
|
4
|
|
|
Inner Door
|
5
|
|
|
Test Hole
|
25mm * 1
|
|
※ Specifications are subject to change without notice. Performance data herein is based on independent testing at time of publication. For latest specification information contact our sales representatives.
