Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Forwon
-
Liquid Flow Rate:
-
4m3/h
-
Maximum Working Pressure:
-
4.5MPa
-
Weight:
-
1 KG
-
Dimension(L*W*H):
-
193*84mm
-
Working Temperature Range:
-
-196~200C
-
Heating Capacity:
-
1-5kw
-
Certifications:
-
CE/ISO9001/ISO14001
-
Plate material:
-
Stainless steel
-
Solder material:
-
Copper
-
Installation:
-
Upright
-
After Warranty Service:
-
Online support
-
Local Service Location:
-
None
-
Application:
-
HVAC, heat pump, boiler, etc
-
Marketing Type:
-
New Product 2021
Quick Details
-
Structure:
-
Plate Heat Exchanger
-
Voltage:
-
220V
-
Core Components:
-
heat exchanger
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Forwon
-
Liquid Flow Rate:
-
4m3/h
-
Maximum Working Pressure:
-
4.5MPa
-
Weight:
-
1 KG
-
Dimension(L*W*H):
-
193*84mm
-
Working Temperature Range:
-
-196~200C
-
Heating Capacity:
-
1-5kw
-
Certifications:
-
CE/ISO9001/ISO14001
-
Plate material:
-
Stainless steel
-
Solder material:
-
Copper
-
Installation:
-
Upright
-
After Warranty Service:
-
Online support
-
Local Service Location:
-
None
-
Application:
-
HVAC, heat pump, boiler, etc
-
Marketing Type:
-
New Product 2021

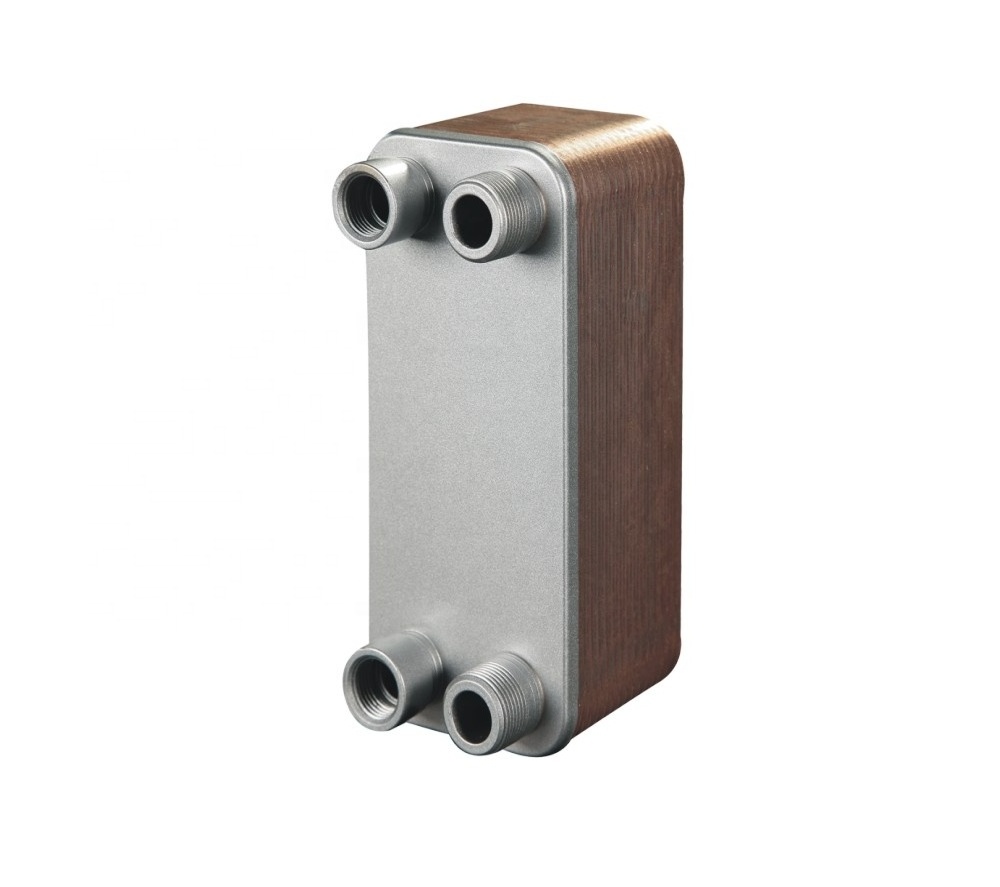

Plate Heat Exchanger FHC030
Features
1.Compact structure : adopt thin stainless steel, high heat transfer factors.
2.Reliability : adopt 316L and copper as well as high quality brazing works. Endure high pressure and temperature. Long life and no maintenance need.
3.Reduce water require : with the high heat transfer efficiency, only needs 1/3 water usage compare to shell and tube exchanger under same condition
4.Lightly : Only 20-30% weight compare to shell and tube heat exchanger and reduce the logistics cost.
5.Low fouling factors : high disorderly flow lower the fouling condition, reduce the maintain.
6.With distributor : increase the refrigerant evaporating efficiency and reduce the risks by using distributor to force the refrigerant flow direction.
