FOB Reference Price: Get Latest Price
≥40 Square meters
US $4580
≥60 Square meters
US $3380
≥100 Square meters
US $1250
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Brand Name:
CN
Model Number:
CN-VFGW-002
Door Panel Weight:
Max 150kg/㎡
Door Width:
DW=6000mm~15000mm
Height:
HW=3500mm~9000mm
Power:
AC150V~250V
Frequency:
50~60HZ
Motor:
4.7KW
Closed force:
200N
Manual Force:
<200N
Sound Insulation:
≤50dB
Ambient Temperature:
-20℃~+60℃

Quick Details

Application:
Home Office, Outdoor, Hotel, Office Building, Hospital, School, Mall, Other
Design Style:
Modern
Place of Origin:
Guangdong, China
Brand Name:
CN
Model Number:
CN-VFGW-002
Door Panel Weight:
Max 150kg/㎡
Door Width:
DW=6000mm~15000mm
Height:
HW=3500mm~9000mm
Power:
AC150V~250V
Frequency:
50~60HZ
Motor:
4.7KW
Closed force:
200N
Manual Force:
<200N
Sound Insulation:
≤50dB
Ambient Temperature:
-20℃~+60℃

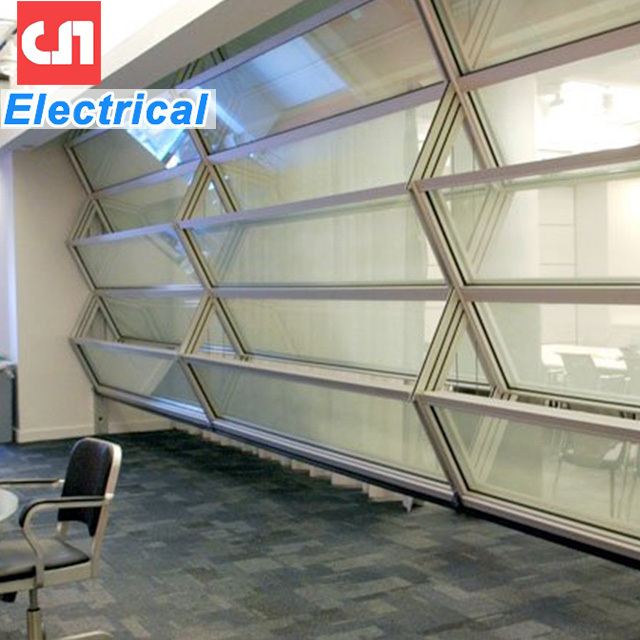

Airport Electrical Vertical Folding Glass Partition Walls Automatic Vertically Retractable Glass Wall System

This Automatic Vertical Folding Glass Partition Walls contains folding glass walls that can be scaled to fit a maximum height of 7M, with virtually unlimited lengths. No manual labor is required to operate this product. A simple turnkey is all that is needed to operate the fully-automated glass wall. This sophisticated partitioning system has a closed loop hydraulic checking system built into its hardware, which can provide sufficient braking if the gear motor should ever lose power.


Glass panels come in either clear laminated glass, frosted glass, or privacy glass—enabling you to decide how much is seen through the other side, while still maximizing the amount of light that passes through.

Why choose our CN Electric Folding Partition Doors :

1. Independently developed full intelligent control system, which is safe, stable and has a long service life.

2. Built-in infrared safety system ensures the safety of use. When encountering resistance, it will automatically stop, and when the resistance is eliminated, it will resume the original automatic operation.

3. Automatically retract to the ceiling, saving valuable floor space and improving space utilization rate.

4. Easy full intelligent control system without manual operation.

5. Customized production can be made, different schemes can be customized according to different places to meet different needs. Each lifting partition wall model is unique and designed to provide a specific design solution. Each lifting partition wall model is comprised of single-source components engineered for that particular system.

6. The choice of exterior decoration is diversified, breaking the traditional design style, and modern decorative materials can be used.

7. The Electric Folding Partition System is suitable for many Commercial, Retail, and Residential applications including, sports complexes, restaurants, patios, bar and countertops, as well as residential applications which allows customers the versatility to accommodate individual design needs.

From concept to completion, provides turnkey service that includes specified finish, installation, and service. Single source provides customers with confidence that all aspects of the project are properly coordinated and designed while providing a single warranty for entire system.

FAQ

How about the price per square meter for the automatic lifting partition wall?

Automatic lifting partition can be divided into light, medium, heavy three types, the price for each kind is different.

Light type automatic lifting partition: the maximum height is 6m, the maximum bearing capacity of a single door is 250kg, the minimum thickness of the panel is 50mm, the maximum width is 1200mm, the ceiling height is 300mm, and the power is 40w

The reference price for a conference hall is RMB150,000 ~ RMB300,000

Medium type automatic lifting partition: the maximum height is 12m, the maximum bearing capacity of a single door is 450kg, the maximum width is 1200mm, and the power is 60w

The reference price for a large banquet hall is RMB300,000 ~ RMB600,000

Heavy type automatic lifting partition: maximum height 16 meters, single door body maximum bearing 600kg, maximum width 1200mm, power 100w

The reference price for a regular stadium is RMB600,000 ~ RMB1.5 million

Related Products
Product Description

Automatic Movable Vertical Folding Partition Walls

Features:

1.Full Automatic, Intelligent Microcomputer Control.

2.Surface Treatment Optional

3.Safety Protect Function

4.Heavy & Light Type Optional

5.Vertical Folding , Space Saving

Door Panel Weight
Max 150kg/sq.m.
Door Width
DW=1000mm~15000mm
Height
HW=3500mm~16000mm
Power
AC150V~250V
Frequency
50~60HZ
Motor
4.7kW
Closed Force
200N<F<400N
Manual Force
<200N
Noise
≤50dB
