Quick Details
-
Insulation Material:
-
Silicone Rubber
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Shenyuan
-
Model Number:
-
JG
-
Product name:
-

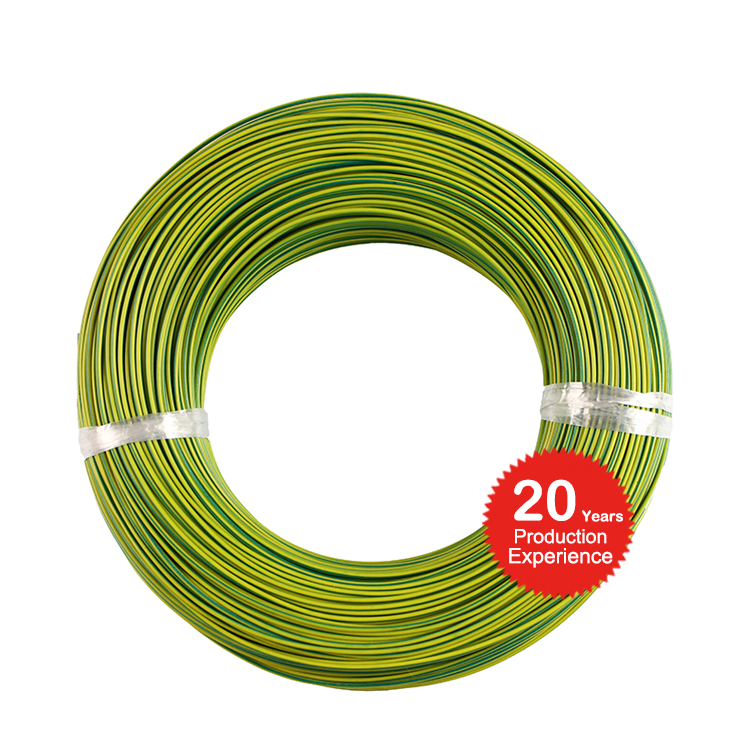

silicone insulated green yellow earth/ground wire
-
Color:
-
White-Blue-Red-Black-Brown-Yellow-Green-Transpanrent-Yellow/Green
-
Insulation:
-
silicone
-
Rated Voltage:
-
500/1000V
-
Certification:
-
ROHS/UL/CCC/VDE/CCC/SGS/ISO9001:2008
-
Temperature range:
-
-60'C~ +180 'C
-
Advantage:
-
20 Years Production Experience
Quick Details
-
Application:
-
Various
-
Conductor Material:
-
Copper
-
Conductor Type:
-
Stranded
-
Insulation Material:
-
Silicone Rubber
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Shenyuan
-
Model Number:
-
JG
-
Product name:
-
silicone insulated green yellow earth/ground wire
-
Color:
-
White-Blue-Red-Black-Brown-Yellow-Green-Transpanrent-Yellow/Green
-
Insulation:
-
silicone
-
Rated Voltage:
-
500/1000V
-
Certification:
-
ROHS/UL/CCC/VDE/CCC/SGS/ISO9001:2008
-
Temperature range:
-
-60'C~ +180 'C
-
Advantage:
-
20 Years Production Experience
"Protecting high-temperature electricity safety" is our development policy, Carefully manufacturing every meter cable, protect the high temperature environment electricity safety is the mission of the company.
Description
1) Product :
SILICONE WIRE
2) Style No.:
Silicone rubber wire
3) Size:
32AWG~4/0AWG; 0.1~100sqmm;
4) Rated Voltage:
600V
5) Rated Temperature:
-60°C~+180°C
6) Conductor:
Stranded silver plated copper wire or nickel plated copper wire
7) Insulation:
silicone rubber
8) Color: red / yellow / blue / white / black/ yellow green / brown / orange / purple / green / etc
Product features
*
excellent resistance to high temperature
* low temperature resistance
* excellent electrical insulation performance
* high voltage resistance
* aging resistance
* long service life
Applications
* Electronic industry
temperature compensation wire, low temperature wire
high temperature heating wire, anti-aging wire and flame retardant wire
* household appliances industry
air conditioners, microwave ovens, electronic disinfection cabinet, rice cookers
electronic thermos, Electric oven, lighting and other internal wiring.
| Section Area mm 2 | Conductor construction NO.×mm | Insulation Thickness mm | Outer Diameter mm | m/coil | ||
| 500V | 1000V | 500V | 1000V | |||
| 0.5 | 28×0.15 | 1 | 1.2 | 2.9 | 3.3 | 200 |
| 0.75 | 24×0.20 | 1 | 1.2 | 3.2 | 3.6 | 200 |
| 1 | 32×0.20 | 1 | 1.2 | 3.3 | 3.7 | 200 |
| 1.5 | 48×0.20 | 1 | 1.2 | 3.6 | 4 | 200 |
| 2.5 | 49×0.25 | 1 | 1.2 | 3.9 | 4.3 | 200 |
| 4 | 56×0.30 | 1.2 | 1.4 | 5.2 | 5.6 | 200 |
| 6 | 84×0.30 | 1.2 | 1.5 | 6 | 6.6 | 200 |
| 10 | 84×0.40 | 1.4 | 1.6 | 7.4 | 7.8 | 100 |
| 16 | 126×0.40 | 1.4 | 1.6 | 8.6 | 9 | 100 |
| 25 | 196×0.40 | 1.6 | 1.8 | 10.8 | 11.2 | 100 |
| 35 | 494×0.30 | 1.8 | 2 | 12.4 | 12.8 | 100 |
| 50 | 396×0.40 | 2 | 2.2 | 14.6 | 15 | 100 |
| 70 | 551×0.40 | 2 | 2.2 | 16.8 | 17.2 | 100 |
| 95 | 760×0.40 | 2.2 | 2.5 | 19.2 | 19.8 | 100 |
| 120 | 608×0.50 | 2.2 | 2.5 | 21 | 21.5 | 100 |
| 150 | 760×0.50 | 2.4 | 2.6 | 23 | 23.4 | 100 |
| 185 | 925×0.50 | 2.4 | 2.6 | 24.8 | 25.2 | 100 |
| 240 | 1221×0.50 | 2.6 | 2.8 | 28.2 | 28.6 | 100 |
