Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
YUGONG
-
Model Number:
-
YG-PB350
-
Voltage:
-
220V 50Hz
-
Dimension(L*W*H):
-
10000x2700x2000mm
-
Weight:
-
35000 KG
-
Product name:
-
Fully Automatic Paper Bag Making Machine
-
Application:
-
producing paper bag
-
Usage:
-
Paper bag Forming Machine
-
Bag Width:
-
70-350mm
-
Paper bag speed:
-
30-400pcs/min
-
Paper thickness:
-
35-80g/㎡
-
Working gas:
-
0.12m³/min, 0.5-0.8mpa
-
Power:
-
380v 3phase 4line 24kw
-
Total weight:
-
4500kg
-
Outline:
-
9100*1900*1950mm
Quick Details
-
Machine Type:
-
Bag Forming Machine
-
Bag Type:
-
Shopping Bag
-
Material:
-
Paper
-
Place of Origin:
-
China
-
Brand Name:
-
YUGONG
-
Model Number:
-
YG-PB350
-
Voltage:
-
220V 50Hz
-
Dimension(L*W*H):
-
10000x2700x2000mm
-
Weight:
-
35000 KG
-
Product name:
-
Fully Automatic Paper Bag Making Machine
-
Application:
-
producing paper bag
-
Usage:
-
Paper bag Forming Machine
-
Bag Width:
-
70-350mm
-
Paper bag speed:
-
30-400pcs/min
-
Paper thickness:
-
35-80g/㎡
-
Working gas:
-
0.12m³/min, 0.5-0.8mpa
-
Power:
-
380v 3phase 4line 24kw
-
Total weight:
-
4500kg
-
Outline:
-
9100*1900*1950mm
Product Description

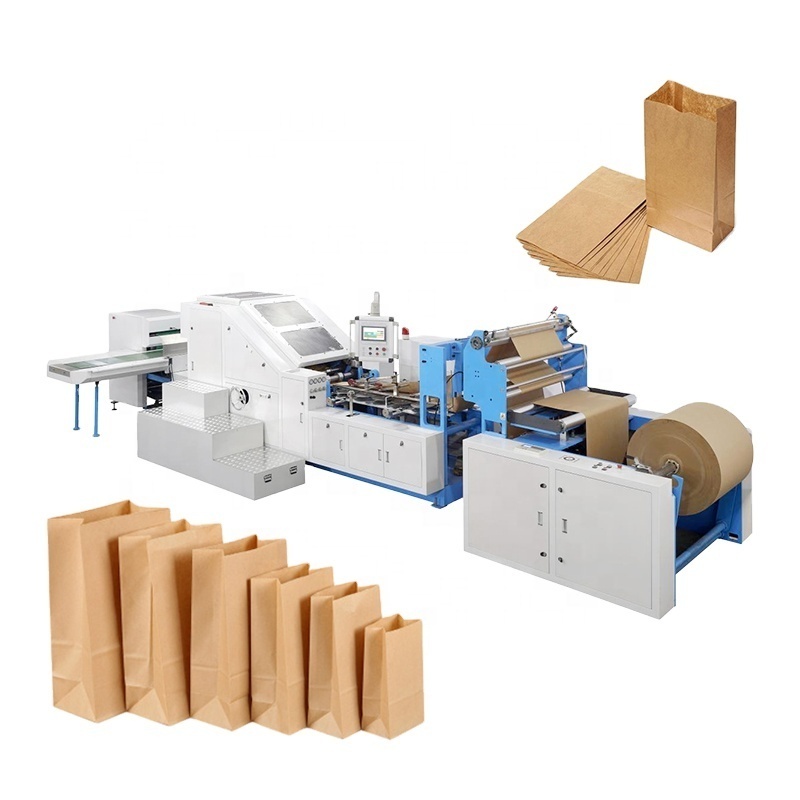

Yugong Brand Paper Bag Making Machine Snack German Paper Bag Making Machine
Full automatic high speed paper bag making machine use primary color rolling paper or printed rolling paper such as kraft paper, striped brown paper, slick paper, food coated paper,medico paper and SO on, bag making process consist of puncture, side gluing, sidefolding, bag forming, cut off, bottom folding, bottom gluing, finish product delivered in onetime. Our machine have advantage of easy operation, high effeciency, more steady, it is an idealmachine for make differnt kind of paper bag, snack food paper bag, bread paper bag, dry fruitpaper bag and environment friendly paper bag.


Working Features
1.Using Willon touch screen man-machine interface, the operation function is clear at a glance, easy to control
2.Adopt the Japanese original Mitsubishi motion controller, through the integration with the optical fiber, operation stability
3.Japanese Mitsubishi servo motor with German Schick color standard eye correction, accurate tracking printing bag size
4.The raw material loading and unloading adopts hydraulic dynamic lifting structure, and the unwinding adopts automatic constant tension control.
5. The raw material correction adopts servo motor to reduce the adjustment time of paper roll alignment.
Application


Parameter
Item
|
Data
|
Model
|
YG-PB350
|
Cutting Length(total)
|
230-370mm
|
Paper Bag Width(total)
|
140-220mm
|
Bottom Width
|
60-140mm
|
Paper gsm(total)
|
50-140g/㎡
|
Material Width(total)
|
140-220mm
|
Mechanical Speed
|
30-200pcs/min
|
Paper Bag Production Speed
|
30-18pcs/min
|
Total Weight
|
15000Kg
|
Machine Overall Dimension
|
11000*4400*1800mm
|
Product Real Shot
Principle
