Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
AIBEIKEN
-
Model Number:
-
PS30B-TNOF-E/S
-
Product Name:
-
Waterproof Piezo Switch 12V
-
Mounting Hole Size:
-
30mm
-
Operation Type:
-
Momentary
-
Switch Combination:
-
1NO(Normally Open)
-
Head Type:
-
Chamfer Head
-
Enclosure Material:
-
Stainless Steel
-
Terminal Type:
-
300mm Long 26AWG
-
Life Expectancy:
-
50 Million cycles
-
Operating Temperature:
-
-40°C ~+75°C
-
Accessories:
-
Nut, Rubber Waterproof O-ring
Quick Details
-
Protection Level:
-
IP68
-
Max. Current:
-
2A
-
Max. Voltage:
-
24V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
AIBEIKEN
-
Model Number:
-
PS30B-TNOF-E/S
-
Product Name:
-
Waterproof Piezo Switch 12V
-
Mounting Hole Size:
-
30mm
-
Operation Type:
-
Momentary
-
Switch Combination:
-
1NO(Normally Open)
-
Head Type:
-
Chamfer Head
-
Enclosure Material:
-
Stainless Steel
-
Terminal Type:
-
300mm Long 26AWG
-
Life Expectancy:
-
50 Million cycles
-
Operating Temperature:
-
-40°C ~+75°C
-
Accessories:
-
Nut, Rubber Waterproof O-ring

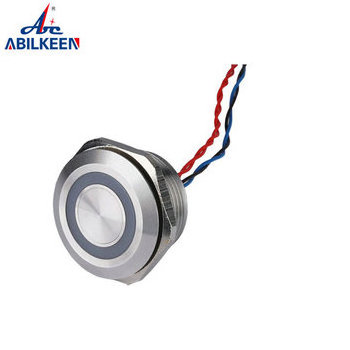

30mm Piezo Switch With 2A 24V IP68 Waterproof Momentary Normal Open Push Button Stainless Steel Switch
Product description:
30mm piezo switch with 2A 24V IP68 Waterproof
Material: Stainless Steel
Function: Momentary normal open
Flying leads: AWG26 Length 300mm
Life expectancy : 50 million cycles
Switch body length: about 20mm
Item specifics:
Item type: Switches
Switch type: Pressure Switch
Features: IP68 Waterproof
Material: Stainless steel
Head: Chamfer head 3.0
Function: Momentary normal open
Ratings: 2A 24V
|
Product Name |
IP68 Waterproof Piezo Switch |
|
Model |
PS30B-TNOF-E/S |
|
Mounting Hole |
30mm |
|
Operation Type |
Momentary (Reset) |
|
Switch Combination |
1NO |
|
Actuator Shape |
Chamfer Round Head |
|
Cable Length |
300mm long |
|
Current |
2A |
|
Led Voltage |
12V (or 3V/5V/6V/24V) |
|
Led Color |
Blue (Red, Green, Yellow, White, Purple, Bi-color, Tri-color available) |
|
Illuminated Type |
Ring Led |
|
Enclosure Material |
Stainless Steel 316L (or Silver Aluminum oxidized) |
|
Operating Force |
6 to 15N |
|
Life Expectancy |
50 Million cycles |
|
Waterproof Degree |
IP68 |
|
Operating Temperature |
-40°C ~+75°C |
|
Customized colored housing or Connector |
Acceptable and with fast shipping |
|
Accessories |
Nut, Rubber Waterproof O-ring |
|
Customized Order Confirm |
1. What Led Color? 2. What Led Voltage? |
|
What You Get |
1X Piezo Switch: 30mm, Momentary, 12V Blue LED, Stainless steel |
Note: If you need Customized LED, please inform us by mail:
1. What Led Color? 2. What Led Voltage?
