Quick Details
-
Model Number::
-
BL-STE-9-Customized
-
Decking Material::
-
18mm thickness plywood with PVC
-
Seats::
-
Low backrest seat
-
Seat Material::
-
Heavy duty HDPE
-
Rows::
-
9 rows
-
Size::
-
Standard 85ft / 26meter
-
Structrue Material::
-
Steel Q235B with black power coating
-
Wheels::
-
soft non-marring wheels
-
Certificate::
-
ISO9001,TUV,CE,SGS
-
Application::
-
Stadium, cinema, multimedia hall, conference hall
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Smart Bleachers
-
Model Number:
-
BL-STE-9
-
Model Number::
-
BL-STE-9-Customized
-
Decking Material::
-
18mm thickness plywood with PVC
-
Seats::
-
Low backrest seat
-
Seat Material::
-
Heavy duty HDPE
-
Rows::
-
9 rows
-
Size::
-
Standard 85ft / 26meter
-
Structrue Material::
-
Steel Q235B with black power coating
-
Wheels::
-
soft non-marring wheels
-
Certificate::
-
ISO9001,TUV,CE,SGS
-
Application::
-
Stadium, cinema, multimedia hall, conference hall
Smart Bleachers
We are athletic retractable bleacher design, service and installation specialists. We have installed andserviced over 1000
bleacher installations throughout the world. Clients say that our most valuable services include our ability to listen and help them design the best retractable bleacher system to meet their safety, budget and user goals. And they appreciate our quality repair service.
Smart Group's idea:
Less space, more seats.
We don't sell products, we sell projects.
Product Paramenters
|
Product Name
|

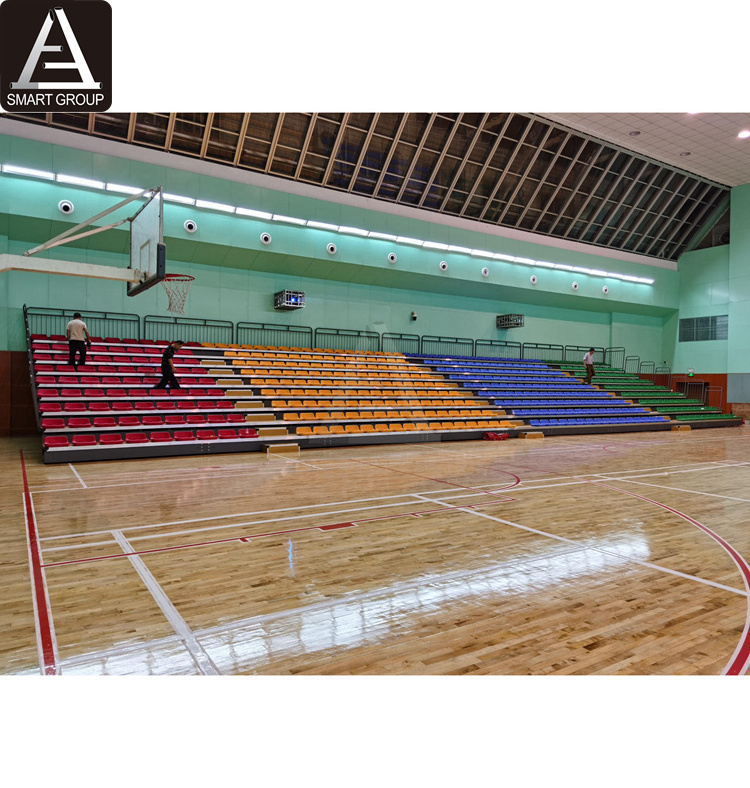

9 Rows 85ft Basketball Court Retractable Bleachers
|
|
Operation mode
|
Electric remote control
|
|
Length
|
Customized length : 85ft/ 26meters
|
|
Rows
|
9 rows
|
|
Capacity
|
465 people
|
|
Rise Height
|
300mm
|
|
Rows Width
|
800mm
|
|
Seats
|
HDPE low backrest seat
|
|
Material
|
Seats: HDPE plastic & steel
|
|
|
Understructure:Q235 Steel (High-quality cold-rolled plates, surface treatment powder coated.
|
|
|
Deck: 18mm thickness plywood with raised PVC. Aluminum edges
|
|
|
Edges: Aluminum alloy with anti-skid wear-resistant rubber and plastic strips
|
|
Loading Capability |
Understructure: minimum force 600N, no overturning. Vertical force 100N, horizontal force 40N, no overturning.
|
|
|
Seat: 200KG/ seat
|
|
|
Deck: 420KG/square meter
|
|
|
Guardrail : 110kg / m , designed standard higher than GB-50352-2005
|
|
Wheels |
Standard size φ100XW40 , Cast iron wheel covered with soft polyurethane,
3 pcs each support beam |
|
Installation Type
|
Portable Units (Wall Atached / Recessed / Travelling Unites for options)
|
|
Features
|
Anti-aging, Anti-UV, Fireproof, Fire resistant.Movable,Xtreme logo,flexible
|
|
Delivery Time
|
15-45 Days (the delivery date is according to the project plan to implement)
|
|
Suitable places
|
Basketball stadium, Gym, Playground, Training Field, Schools, Clubs etc.
|
|
Warranty
|
Free warranty period: 2 years
|
Products Description
Customized Options
Product After-sales Service Commitment
1. Basic situation of after-sales
There are 30 professional installers in our company, and there is a technical service center in Macao China, Hanoi Vietnam, Manila Philippines, Bangalore India . After strict professional training, we are proficient in products and fully qualified for the installation, repair and maintenance of our products.
2.Warranty
There are 30 professional installers in our company, and there is a technical service center in Macao China, Hanoi Vietnam, Manila Philippines, Bangalore India . After strict professional training, we are proficient in products and fully qualified for the installation, repair and maintenance of our products.
2.Warranty
2.1 warranty period: 2 years
2.2 During the warranty period, all product repair services are on-site services and do not charge any fees.
2.3 After the warranty period, provide life-long maintenance services, only charge the cost of accessories and consumables
3. Regular return visit and maintenance
Establish a database for each customer. After the acceptance, our company will return to the customer by telephone to understand the use of the product and make a record.
4. Free training
We provide free training, installation, commissioning, and maintenance training for the buyer's technical personnel, users, and maintenance personnel for the movable spectator seats and fixed spectator seats.
Training content including product material understanding, structural characteristics, maintenance and common failure analysis solutions.
2.3 After the warranty period, provide life-long maintenance services, only charge the cost of accessories and consumables
3. Regular return visit and maintenance
Establish a database for each customer. After the acceptance, our company will return to the customer by telephone to understand the use of the product and make a record.
4. Free training
We provide free training, installation, commissioning, and maintenance training for the buyer's technical personnel, users, and maintenance personnel for the movable spectator seats and fixed spectator seats.
Training content including product material understanding, structural characteristics, maintenance and common failure analysis solutions.
Why Choose Us
YOU’RE DEALING DIRECTLY WITH THE MANUFACTURER.
No middle man. We provide all customer service & support from our Guangzhou facility.
YOU’RE CONNECTING WITH THE EXPERTS.
We understand every detail and feature because we engineer every stage of design and fabrication.
YOU’RE GETTING THE BEST PRODUCT AT THE BEST PRICE.
Direct purchasing means significant savings and the best warranty in the business!
YOU'RE GETTING THE STEADY SUPPLY CHAIN.
We cooperate with leading forwarder guarantee the delivery to your city or to your door without damage &on time.
