Quick Details
-
Insulation Material:
-
Enameled
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Kunbian
-
Model Number:
-
Enameled Copper Wire
-
Conductor:
-
99.9% Pure Copper
-
Diameter:
-
0.03mm--6.00mm
-
Feature:
-
high strength, high temperature, solvent resistance
-
Thermal Class:
-
130/155/180/200/220 Centigrade
-
Elongation:
-
≥15%
-
Tensile strength:
-
130Mpa~150Mpa
-
Standard:
-
IEC NEMA GB JIS
-
MOQ:
-
500kg
-
Delivery time:
-
Within 7 Days
Quick Details
-
Application:
-
transfomer, motor,Electronic Components, etc.
-
Conductor Material:
-
Copper
-
Conductor Type:
-
Solid
-
Insulation Material:
-
Enameled
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Kunbian
-
Model Number:
-
Enameled Copper Wire
-
Conductor:
-
99.9% Pure Copper
-
Diameter:
-
0.03mm--6.00mm
-
Feature:
-
high strength, high temperature, solvent resistance
-
Thermal Class:
-
130/155/180/200/220 Centigrade
-
Elongation:
-
≥15%
-
Tensile strength:
-
130Mpa~150Mpa
-
Standard:
-
IEC NEMA GB JIS
-
MOQ:
-
500kg
-
Delivery time:
-
Within 7 Days
Products Description

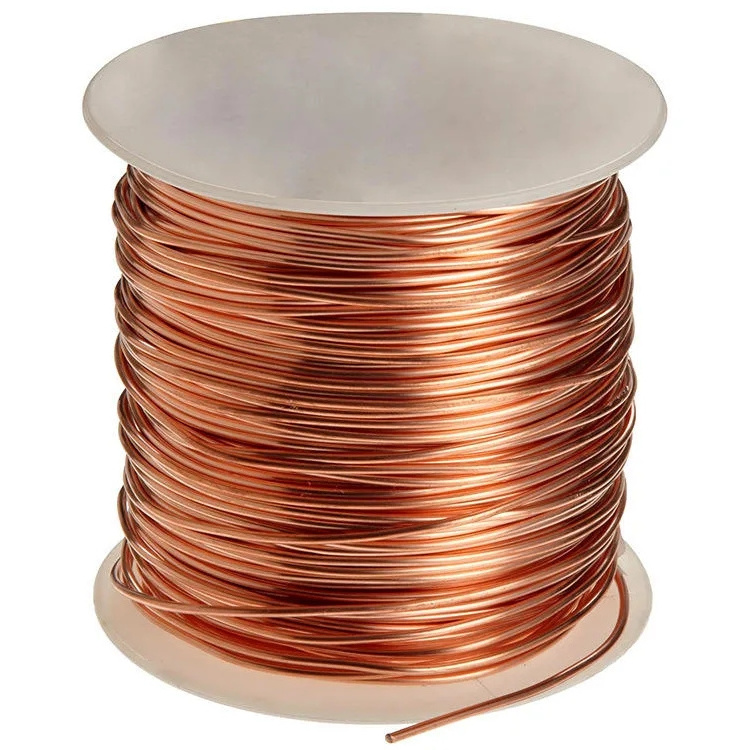

Enameled Copper Wire
Enameled copper wire is made of copper inner conductor and insulation layer outer.Copper wire after annealing and painted repeatedly than dry.
we have many kinds of enameled copper wire,such as:
1.Corona resistance enameled copper wire;
2.Polyester enameled copper wire;
3.Modified polyester enameled copper wire,
4.QZY enameled copper wire;
5.QA copper wire(which can be weld directly);
6.Polyester imine composite polyamide imide round enam- eled copper wire;
Diameter Specification:0.03mm-6.00mm
Products can be customized according to special requirements.
|
Product name
|
Enamelled copper wire, round copper winding wire, magnet copper wire
|
|
|
|
|||
|
Application
|
Transformer, Motor, Pump, Generator, Reactor, Inductor, Choke, Welding machine, etc
|
|
|
|
|||
|
Conductor
|
Round 99.9% pure copper rod
|
|
|
|
|||
|
Size
|
0.10-3.00mm, AWG 9-38, Swg ll~Swg 42
|
|
|
|
|||
|
Elongation
|
≥15%
|
|
|
|
|||
|
Tensile strength
|
130Mpa~150Mpa
|
|
|
|
|||
|
Thermal class
|
130C~220C
|
|
|
|
|||
|
Standard
|
IEC 60317, NEMA MW, GB JIS
|
|
|
|
|||
|
Insulation material
|
PEW UEW EIW EI/AIW AIW
|
|
|
|
|||
|
Certificates
|
ROHS/UL/CCC/VDE/SGS/ISO9001/ISO14001/CNAS
|
|
|
|
|||
|
Color
|
Golden, Brown, Black (according to the wire diameter)
|
|
|
|
|||
|
Type
|
Polyester
|
Modified Polyester
|
Polyurethane
|
Polyesterimide
|
Polyamide-imide
|
Polyamide
|
|||||
|
Code
|
PEW, QZ
|
PEW, QZ
|
UEW, QA
|
EIW, QZY
|
EI/AIW, QZY/XY
|
AIW, QXY
|
|||||
|
Thermal Class
|
Class B, 130℃
|
Class F, 155℃
|
Class F, 155℃
|
Class H, 180℃
|
Class H, 200℃
|
Class L, 220℃
|
|||||
|
Insulation thickness
|
Grade 1, 2, 3
|
|
|
|
|
|
|||||
|
Standard
|
IEC 60317, NEMA MW, JIS
|
|
|
|
|
|
|||||
|
Characteristics
|
Good heat resistance and mechanical strength.
Low cost. |
High mechanical strength, good elasticity, scratch resistance, adhesion, electrical properties and solvent resistance
|
Solderability(no need to remove the insulation).
High frequency resistance and dyeability |
Good thermal shock resistance and refrigerant resistance.
Excellent chemical resistance, abrasion resistance |
More comprehensive performance, with high heat resistance, mechanical properties, refrigerant resistance and chemical resistance
|
Highest heat class
High heat resistance, good solvent and refrigerant resistance |
|||||
