Quick Details
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
Laserconn
-
Model Number:
-
Milestone Super
-
Name:
-
Laserconn SLD LED Diode 755nm 808nm 1064nm Diode Laser 1200W
-
Wavelength:
-
808nm
-
Function:
-
Permanent Hair Removal
-
Spot size:
-
14*14mm
-
Color:
-
White
-
Cooling system:
-
TEC + Sapphire
-
Frequency:
-
1-10Hz
-
Keyword:
-
Diode Laser 1200W
Quick Details
-
Feature:
-
Hair Removal, Skin Rejuvenation, Skin Tightening, Whitening
-
After-sales Service Provided:
-
Online support
-
Warranty:
-
1 Year
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
Laserconn
-
Model Number:
-
Milestone Super
-
Name:
-
Laserconn SLD LED Diode 755nm 808nm 1064nm Diode Laser 1200W
-
Wavelength:
-
808nm
-
Function:
-
Permanent Hair Removal
-
Spot size:
-
14*14mm
-
Color:
-
White
-
Cooling system:
-
TEC + Sapphire
-
Frequency:
-
1-10Hz
-
Keyword:
-
Diode Laser 1200W

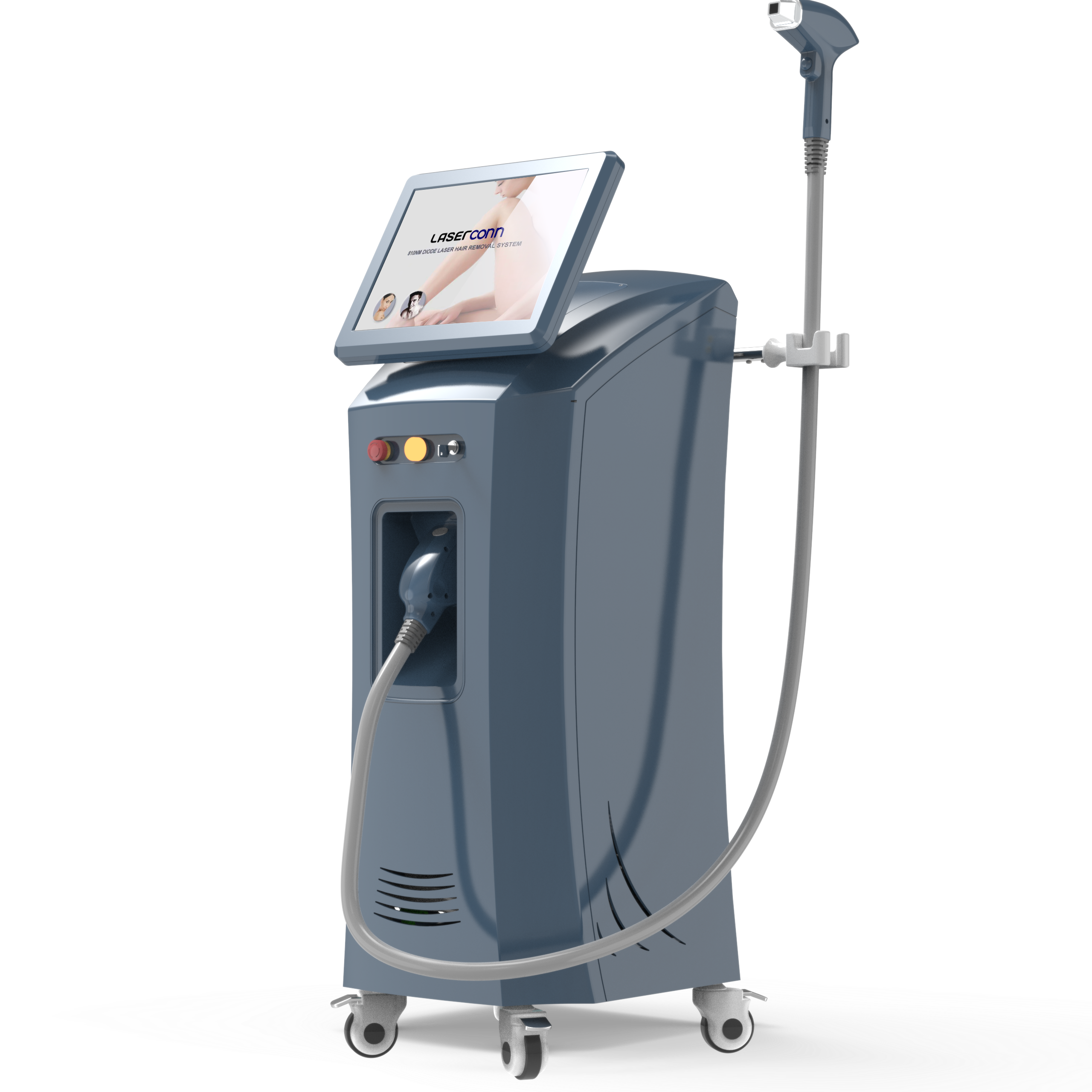

Laserconn SLD LED Diode 755nm 808nm 1064nm Diode Laser 1200W
Product Description
It is the solutions for fast hair removal with 808nm high power laser diodes. The system is designed with TEC and Sapphire Cooling unit for skin contact. The laser beam is collimated with a patented beam shaping technology for a high efficiency for hair removal solutions. This diode laser hair removal can be used for white to light brown skin with dark color hair. The pulse energy is up to 120J/cm2. It is a permanent diode laser hair removal system.
Specification
| Item | Value |
1) The laser power 900W, 1200W, etc
2) The wavelength 755nm, 1064nm, 808+755+1064nm optional 3) Spot Size 14*23mm optional The price is different according to the configuration. |
| Laser Type | Diode Laser | |
| Laser Power | 800W/1200W | |
| Central Wavelength | 808nm | |
| Laser Spot Size | 14 mm *14 mm | |
| Pulse Width | 5 ms - 200 ms | |
| Repeat Rate | 1 Hz -10 Hz | |
| Cooling | Semiconductor + Water + Fans, -5 to +5 ℃ | |
| LCD Screen | 10 Inch HD Touch Screen | |
| Dimension | 48 cm *55 cm *115 cm | |
| Weight | 50 Kg |
OEM Spare Parts
|
Laser Diode Stack
* QCW laser diode bars with peak power 600W, 800W, 1200W, 1500W, 2000W etc. * 6~20 bars per stack. * Typical 808nm/940nm, other wavelength available. * Long life time > 20 Million Shots * Support custom package design |
|
MCU Control Board
* Control laser diode driver, pump, fans and all the other parts of the system. * Control peltier cooler to reach -5℃~+5℃ for Skin Cooling * Communication with LCD screen. |
|
Laser Diode Driver
* Provide constant current control for laser pulses with excellent pulse shape. * Designed with analog modulation and external control interface. * High efficiency without extra cooling. * Designed with laser diode protection circuits for safe operation. |
|
LCD & Software
* Provide simple & easy user control interface with touch-screen. * Custom design is available. |
OEM Hand Piece
| Handle Piece Model | HP-A | HP-B | HP-C |
| Wavelength | 808nm/ 755nm/1064nm | 808nm/ 755nm/1064nm | 808nm/ 755nm/1064nm |
| Max Energy (Fluence) | 100J/cm2 | 120J/cm2 | 150J/cm2 |
| Sapphire Window | 10*16 mm | 14*14mm | 14*23mm |
| Peltier (TEC) Operation | 7.5 V 12.5A | 15V 12.5A | 15V 12.5A |
| Min Flow Rate | 3.0L/min | 3.0L/min | 3.0L/min |
| Complete Handle | Handle-A 14*14mm | Handle-B 14*23mm |
Our Service
1- A Gold standard in hair removing
2- For dark skin for which IPL hair removing isn’t safe
3- Skin rejuvenation
Effect
