Quick Details
-
AC Output Voltage:
-
0.05kV-5kV ± (1.0% of reading+5 digit) (50, 60Hz optional)
-
DC Output Voltage:
-
0.05kV-6kV ± (1.0% of reading+5 digit)
-
AC Current Test Range:
-
0.1mA - 30mA
-
DC Current Test Range:
-
0.01mA - 10mA
-
Discharge Function:
-
Discharge after test ends (DCW)
-
Memory:
-
50 groups, 100 steps per group, totally 500 steps
-
Voltage Rise Time:
-
0.1s-999s
-
Voltage Fall-time:
-
0.1s-999s
-
Voltage Wait-time:
-
0.1s - 99.9s (only for DC)
-
Keyword:
-
Measurement Instrument
Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Tonghui
-
AC Output Voltage:
-
0.05kV-5kV ± (1.0% of reading+5 digit) (50, 60Hz optional)
-
DC Output Voltage:
-
0.05kV-6kV ± (1.0% of reading+5 digit)
-
AC Current Test Range:
-
0.1mA - 30mA
-
DC Current Test Range:
-
0.01mA - 10mA
-
Discharge Function:
-
Discharge after test ends (DCW)
-
Memory:
-
50 groups, 100 steps per group, totally 500 steps
-
Voltage Rise Time:
-
0.1s-999s
-
Voltage Fall-time:
-
0.1s-999s
-
Voltage Wait-time:
-
0.1s - 99.9s (only for DC)
-
Keyword:
-
Measurement Instrument
Product Description

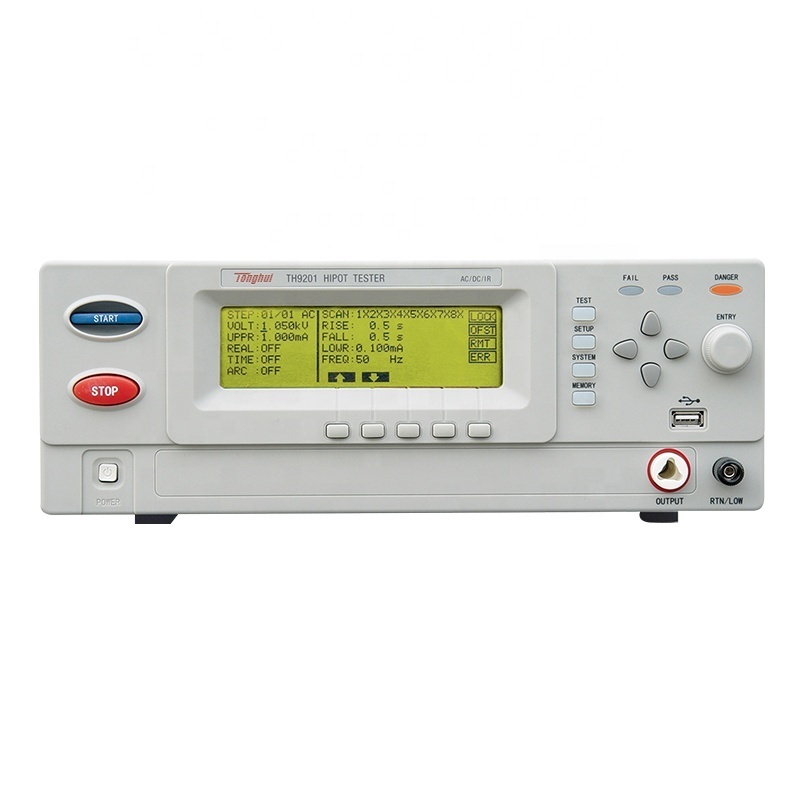

Tonghui TH9201 Withstanding Voltage Tester Electrical Safety Tester TH9201B TH9201C TH9201S
Brief Introduction TH9201 series AC/DC withstanding voltage & insulation tester is a kind of Hipot Tester. Due to simple and compact structure, mature technique, brand new structure and operating interface, the operation becomes more convenient, and more practical functions are included as well. TH9201 series can be widely applied in transformer, device, component especially for winding safety inspection.
Technical Parameter
| Model | TH9201 | TH9201S | TH9201B | TH9201C | |
| Withstanding voltage test | |||||
| Output Voltage | AC | 0.05kV—5kV ±(1.0% of reading+5 digit) (50,60Hz optional) | |||
| DC | 0.05kV—6kV ±(1.0% of reading+5 digit) | ------ | |||
| Voltage Adjustment Rate | ≤(1.0% +10V)(rated power) | ||||
| Current Test Range | AC | 0.1mA - 30mA | 0.1mA - 20mA | ||
| DC | 0.01mA - 10mA | 0.01mA - 5mA | |||
| Test Accuracy | ±(1.0% of reading+5 digit) | ||||
| Discharge Function | Discharge after test ends(DCW) | ||||
| Insulation Resistance Test | |||||
| Output Voltage | 0.05kV - 1kV ±(1.5% of reading+5V) | ------ | |||
| Resistance Test Tange | 0.1MΩ -10GΩ,(Current range within 10nA-10mA) | ------ | |||
| Resistance Test Accuracy | 500V-1000V | 1MΩ - 1GΩ ±(5% of reading +5 digit) 1GΩ - 10GΩ ±(10% of reading +5 digit) | ------ | ||
| 50V-500V | 0.1MΩ - 1GΩ ±(10% of reading +5 digit) | ------ | |||
| Discharge Function | Discharge after test ends | ------ | |||
| Arc Detection | |||||
| Measurement Range | AC | 1mA - 15mA | |||
| DC | 1mA - 10mA | 1mA - 5mA | ------ | ||
| General Specification | |||||
| 8-channel Matrix Scanner | ------ | available | ------ | ||
| Memory | 50groups, 100 steps per group, totally 500 steps | ||||
| Voltage Rise-time | 0.1s - 999s | ||||
| Voltage Fall-time | 0.1s - 999s | ||||
| Voltage Wait-time | 0.1s - 99.9s (only for DC) | ------ | |||
| Test Time Setting | 0.3s - 999s | ||||
| Interface | |||||
| Standard | RS232,USB,HANDLER,REMOTE I/O ,SCAN | ||||
| Options | GPIB | ||||
