- Product Details
- {{item.text}}
Quick Details
-
Spindle length:
-
120mm
-
Codes changeable:
-
YES
-
Change tools:
-
Supplied
-
Footprint:
-
standard
-
Suitable for:
-
safe vaults and strong room doors
-
Product Name:
-
Dial ring combination lock
-
Certification:
-
CE
-
Dial ring option:
-
Bronze , black
-
Material:
-
Zinc Alloy
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
JOMAR
-
Finish:
-
Satin chrome
-
Spindle length:
-
120mm
-
Codes changeable:
-
YES
-
Change tools:
-
Supplied
-
Footprint:
-
standard
-
Suitable for:
-
safe vaults and strong room doors
-
Product Name:
-
Dial ring combination lock
-
Certification:
-
CE
-
Dial ring option:
-
Bronze , black
-
Material:
-
Zinc Alloy
Dial ring lock

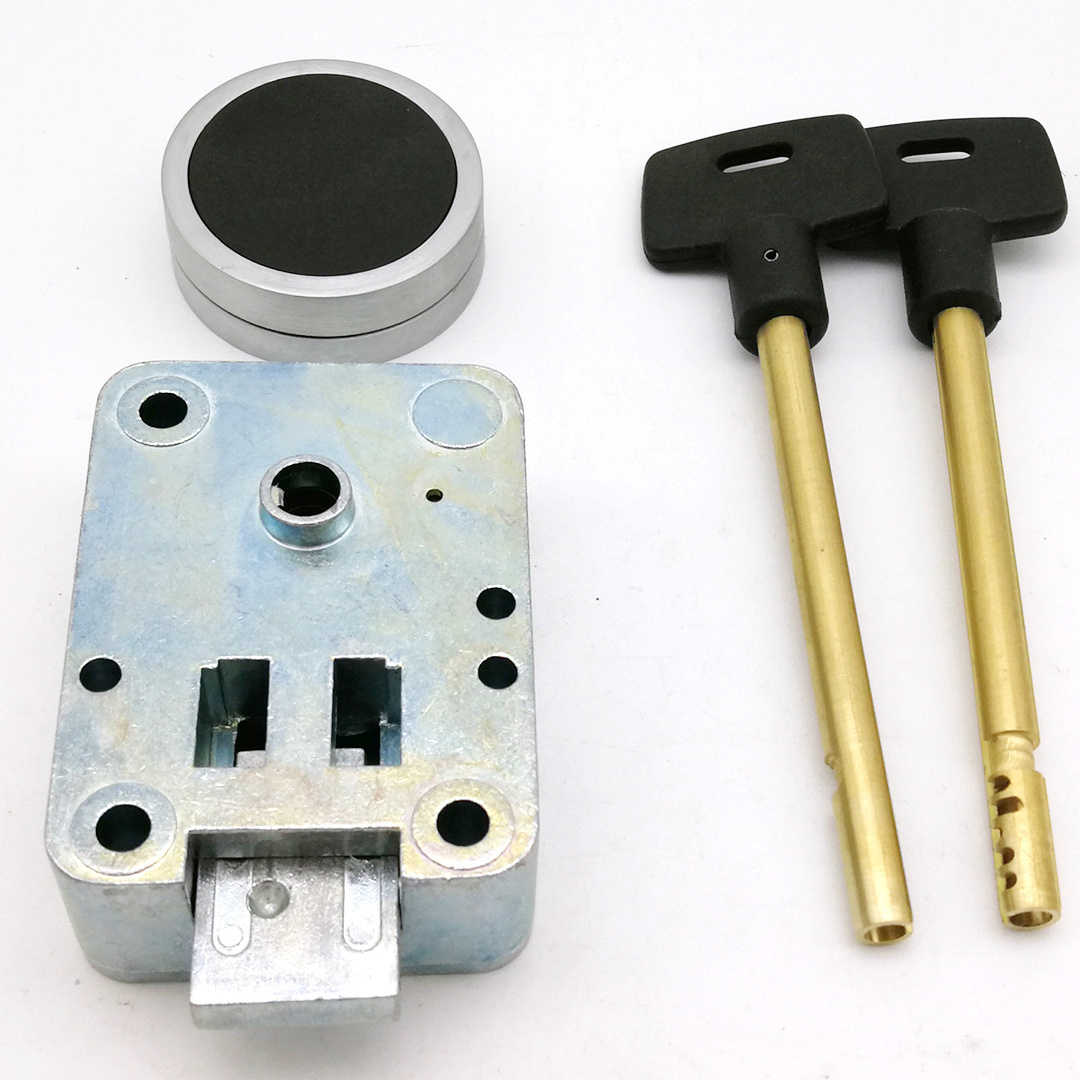

Detailed Images
4 wheel changeable key lock.
Keys available in three different lengths.6inch , 4inch , 8 inch for customer to choose
* Four brass wheels for long life
* Standard footprint
* Key retained when in open position
* Integrated re-locker bolt blocking in case of manipulation
* Bolt in 0.5” (12.7mm) standard or 1.50” (38.1mm) extended option
* Drilled and tapped bolt options – US (10-32) and metric (4mm)
* 3”,4”,5”,6” key depth options
* Changeable lock
* 4 levers/wheels, brass, delivery in works code, without keys (keys have to be ordered separately)
* Key retained when in open position
* Integrated relocker: bolt blocking in case of manipulation of the lock cover
* Die-cast lock case, bolt and drop lever, throw 8.7 mm, bolt with 2 M4 threads
* Bolt with 2 M4 threads, throw 8.7 mm
* Hardware pack: change activator steel, 85 mm; escutcheon (LA GARD 2219); 3 screws 1/4 - 20 x 3/8 PH (32 mm)
* Weight approx. 550 g
Admissible mounting positions
* Right hand or left hand lock (upside down mounting),
* opening clockwise
Packing & Delivery
Per safe lock is packed with bubble bag protection
One small carton box put 2 mechanical combination locks
Each big carton box put 12 pcs combination locks totally
|
Lock type
|
Combination safe lock
|
|
Combination codes
|
Changeable
|
|
Dial ring finish
|
Satin chrome
|
|
Spindle length
|
70-150mm
|
|
Changing codes Tool
|
Supplied
|
|
Foot print
|
Standard
|
|
Qty of small box
|
2 pcs
|
|
Qty of big carton box
|
12pcs
|
|
Unit Net weight
|
0.95KG
|
|
Warranty
|
1 year
|
