Quick Details
-
Range of Spindle Speed(r.p.m):
-
3000 - 4000 r.p.m
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
iPharMachine
-
Voltage:
-
AC110V/220V 50Hz/60Hz
-
Dimension(L*W*H):
-
480*900*950mm
-
Weight (KG):
-
82 KG
-
Model:
-
SF-180
-
Product name:
-
Dust Collecting Pulverizer
-
Capacity:
-
10-20kg/h
-
Power:
-
2.2kw
-
Spindle Speed:
-
4000 rev / min
-
Fineness:
-
10-120 mesh
-
Noise:
-
≤85 Db
-
Dimension:
-
480*900*950mm
-
Function:
-
Make Dry Powder
Quick Details
-
Output (kg/h):
-
5 - 20 kg/h
-
Output Size (mesh):
-
10 - 120 mesh
-
Power (kW):
-
2.2
-
Range of Spindle Speed(r.p.m):
-
3000 - 4000 r.p.m
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
iPharMachine
-
Voltage:
-
AC110V/220V 50Hz/60Hz
-
Dimension(L*W*H):
-
480*900*950mm
-
Weight (KG):
-
82 KG
-
Model:
-
SF-180
-
Product name:
-
Dust Collecting Pulverizer
-
Capacity:
-
10-20kg/h
-
Power:
-
2.2kw
-
Spindle Speed:
-
4000 rev / min
-
Fineness:
-
10-120 mesh
-
Noise:
-
≤85 Db
-
Dimension:
-
480*900*950mm
-
Function:
-
Make Dry Powder
Products Description

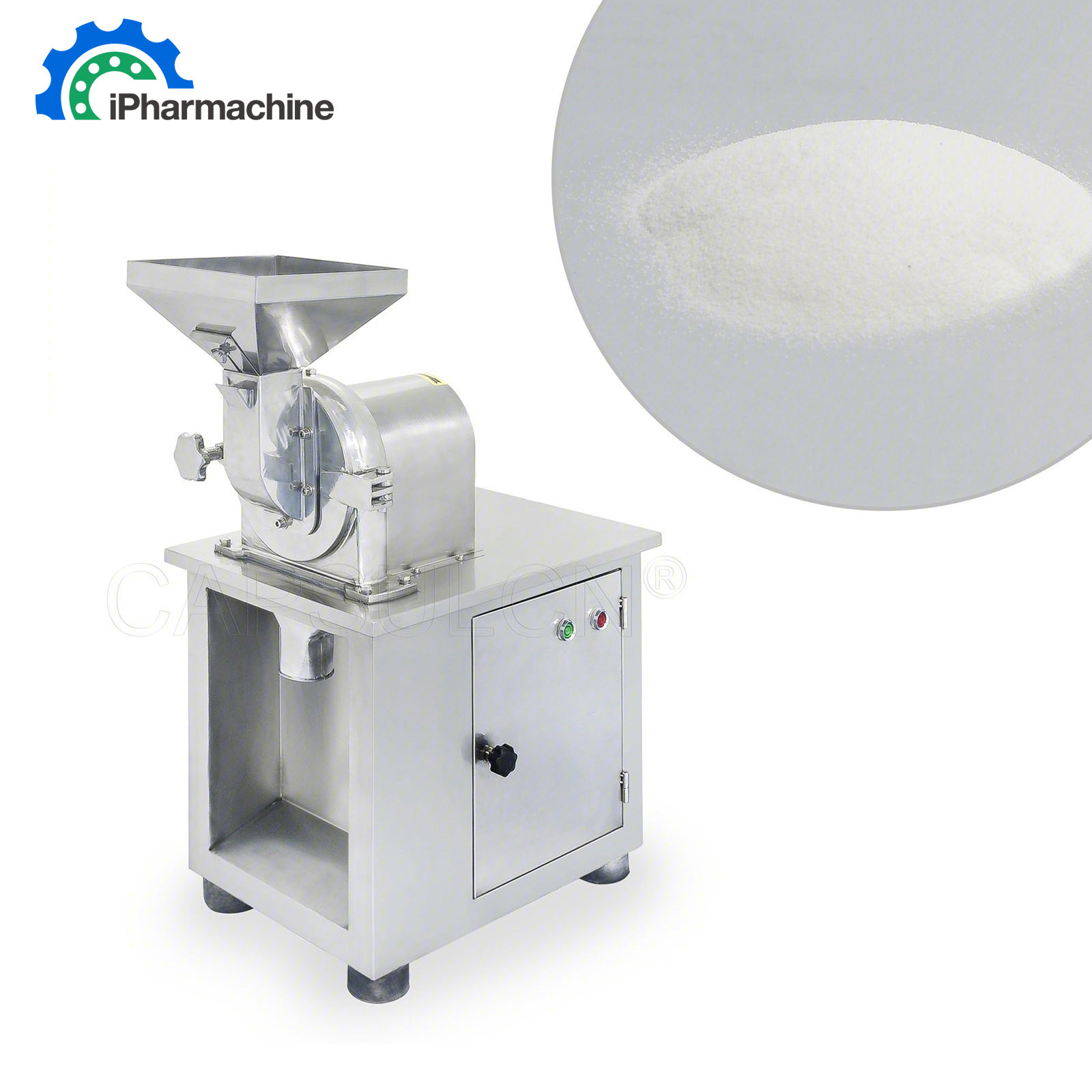

SF-180 Universal Pulverizer
This machine is applicable to fields like, foodstuff, chemical, metallurgy, geology, agriculture, scientific
research and other units. It is used for pulverizing the Chinese herb, mineral and chemical raw materials and so on.This machine has a reasonable structure, stable operation, easy handle and the low noise. The machine is equipped with air-cooled device, so that low machine temperature, the working part of the closure of the machine is made of stainless steel, high-speed operation to achieve sanitation. It is high effective and low cost.
research and other units. It is used for pulverizing the Chinese herb, mineral and chemical raw materials and so on.This machine has a reasonable structure, stable operation, easy handle and the low noise. The machine is equipped with air-cooled device, so that low machine temperature, the working part of the closure of the machine is made of stainless steel, high-speed operation to achieve sanitation. It is high effective and low cost.
Main Application
Details Images
Work Principle
This machine through the motor drive machine spindle for high speed rotation, the spindle is equipped with a movable hammer, and the machine front cover on the fixed ring gear for relative movement, so that the material through hammer teeth collision, friction, impact each other and get crushed. The crushed material enters the collection bag after being screened through sieve through rotating centrifugal force. The dust produced in the grinding process is absorbed into the dust aggregate box by the centrifugal suction fan for recycling.
Product Paramenters
|
Model
|
SF130e
|
SF180
|
SF250
|
SF320
|
SF30B
|
|
Rotary speed of main shaft
|
7000r/min
|
4000r/min
|
4000r/min
|
4000r/min
|
4000r/min
|
|
Finenesss(mesh)
|
10-120
|
10-120
|
10-120
|
10-120
|
10-120
|
|
Production capacity
|
2-5kg/h
|
10-20kg/h
|
50-250kg/h
|
80-300kg/h
|
80-300kg/h
|
|
Limit materials(mm)
|
5x5x5
|
8x8x8
|
10x10x10
|
10x10x10
|
10x10x10
|
|
Using electric distribution
|
1.1kw
|
2.2kw
|
5.5kw
|
7.5kw
|
7.5kw
|
|
Outline dim. (mm)
|
640x350x830
|
800x530x1230
|
950x500x1360
|
1330x790x1540
|
1330x790x1450
|
|
Power vacuum
|
0.25kw
|
0.55kw
|
1.5kw
|
1.5kw
|
1.5kw
|
