Quick Details
-
Voltage:
-
380V
-
Weight (KG):
-
16000
-
Name:
-
Precision Forging
-
Application:
-
Mental Forging Press
-
Usage:
-
Custom Press
-
Advantage:
-
Costomized
-
Key words:
-
Mobile Parts Forging Press
-
Application in:
-
Die Forging Product
-
COLOR:
-
Costomized
-
Feature:
-
Automatic Press
-
After-sales Service Provided:
-
Field installation, commissioning and training
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LPMIE
-
Machine Type:
-
Forging machine
-
Voltage:
-
380V
-
Weight (KG):
-
16000
-
Name:
-
Precision Forging
-
Application:
-
Mental Forging Press
-
Usage:
-
Custom Press
-
Advantage:
-
Costomized
-
Key words:
-
Mobile Parts Forging Press
-
Application in:
-
Die Forging Product
-
COLOR:
-
Costomized
-
Feature:
-
Automatic Press
-
After-sales Service Provided:
-
Field installation, commissioning and training

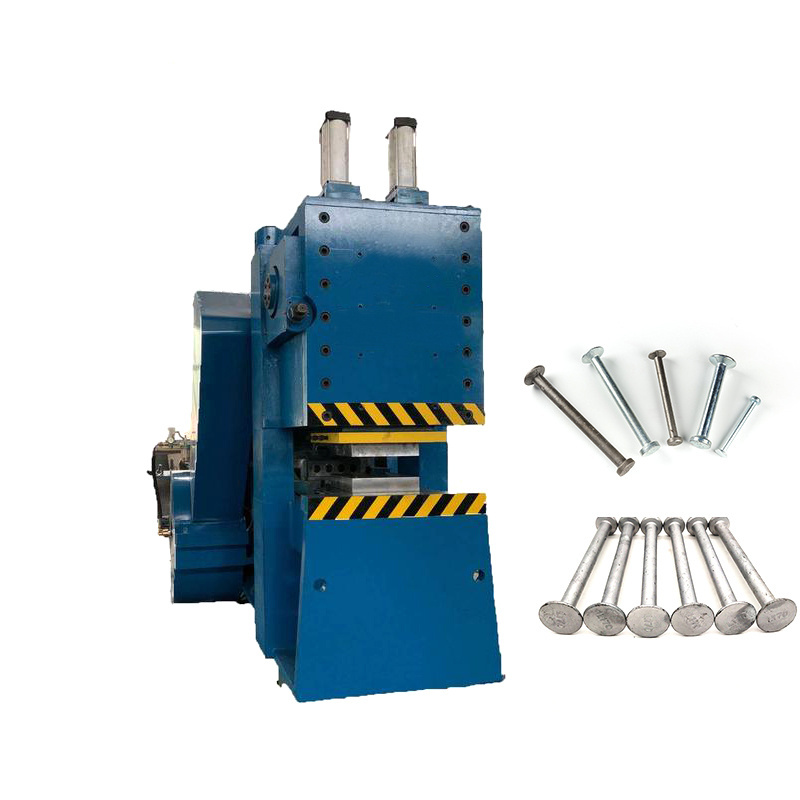

Horizontal Forging Machine
The HK series flat forging machine is a patented product of the company. It is a model with high cost performance in recent years. The concave surface of the machine is horizontal,and the cavity is horizontally arranged,but the upper body is fixed and it is fixed. The tension bolt and the lower body are tightly coupled togeter,such as the open body of the open press ,so it is called the open horizontal split die foring machine.
This model is highly automated,equipped with man-machine interface,automatic lubrication,automatic alrm and other functions,is the ideal model for forging.
The horizontal forging machine has a wide application range,and mainly produces various shaped workpieces such as wrenches,high rail forks,bolts,camshafts,and sucker rods.
Parameter:
|
Description ( Unit ) |
HK-125 |
HK-160 |
HK- -250 |
HK- -315 |
HK- -450 |
HK- -630 |
HK- -800 |
|
Pier forging force( KN ) |
1250 |
1600 |
2500 |
3150 |
4500 |
6300 |
8000 |
|
Clamping force( KN ) |
1250 |
1600 |
2500 |
3150 |
4500 |
6300 |
8000 |
|
Main slider stroke (mm) |
130 |
160 |
200 |
290 |
330 |
390 |
450 |
|
Number of trips (min -1 ) |
56 |
56 |
52 |
50 |
45 |
38 |
35 |
|
Clamping die opening( mm ) |
80 |
90 |
100 |
120 |
145 |
170 |
200 |
|
Total mold height ( mm ) |
240 |
240 |
280 |
290 |
330 |
360 |
400 |
|
Compressed air pressure( Map ) |
0.55 |
0.55 |
0.55 |
0.55 |
0.55 |
0.55 |
0.55 |
|
H eight (mm) |
2600 |
2750 |
3050 |
3210 |
3350 |
3750 |
3900 |
Product Sample:
