Quick Details
-
Voltage:
-
380v
-
Power:
-
33.5kw-116 KW
-
Dimension(L*W*H):
-
10*6*4.5m
-
Weight:
-
3-5t
-
Warranty:
-
12 month
-
Marketing Type:
-
New Product 2021
-
raw material:
-
Waste paper, used carton
-
Product name::
-
egg plate shaping machine
-
Dry fuel::
-
diesel,coal ,gass
-
Weight of egg tray::
-
100g/piece
-
Color::
-
as your request
-
Drying system::
-
metal drying,earth kiln drying
-
Layout::
-
reasonable structure
-
processing line:
-
pulp egg tray making line
-
Factory visit::
-
welcome
-
Warranty::
-
1 year
Quick Details
-
Production Capacity:
-
2500pcs/h
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
UT Machinery
-
Voltage:
-
380v
-
Power:
-
33.5kw-116 KW
-
Dimension(L*W*H):
-
10*6*4.5m
-
Weight:
-
3-5t
-
Warranty:
-
12 month
-
Marketing Type:
-
New Product 2021
-
raw material:
-
Waste paper, used carton
-
Product name::
-
egg plate shaping machine
-
Dry fuel::
-
diesel,coal ,gass
-
Weight of egg tray::
-
100g/piece
-
Color::
-
as your request
-
Drying system::
-
metal drying,earth kiln drying
-
Layout::
-
reasonable structure
-
processing line:
-
pulp egg tray making line
-
Factory visit::
-
welcome
-
Warranty::
-
1 year

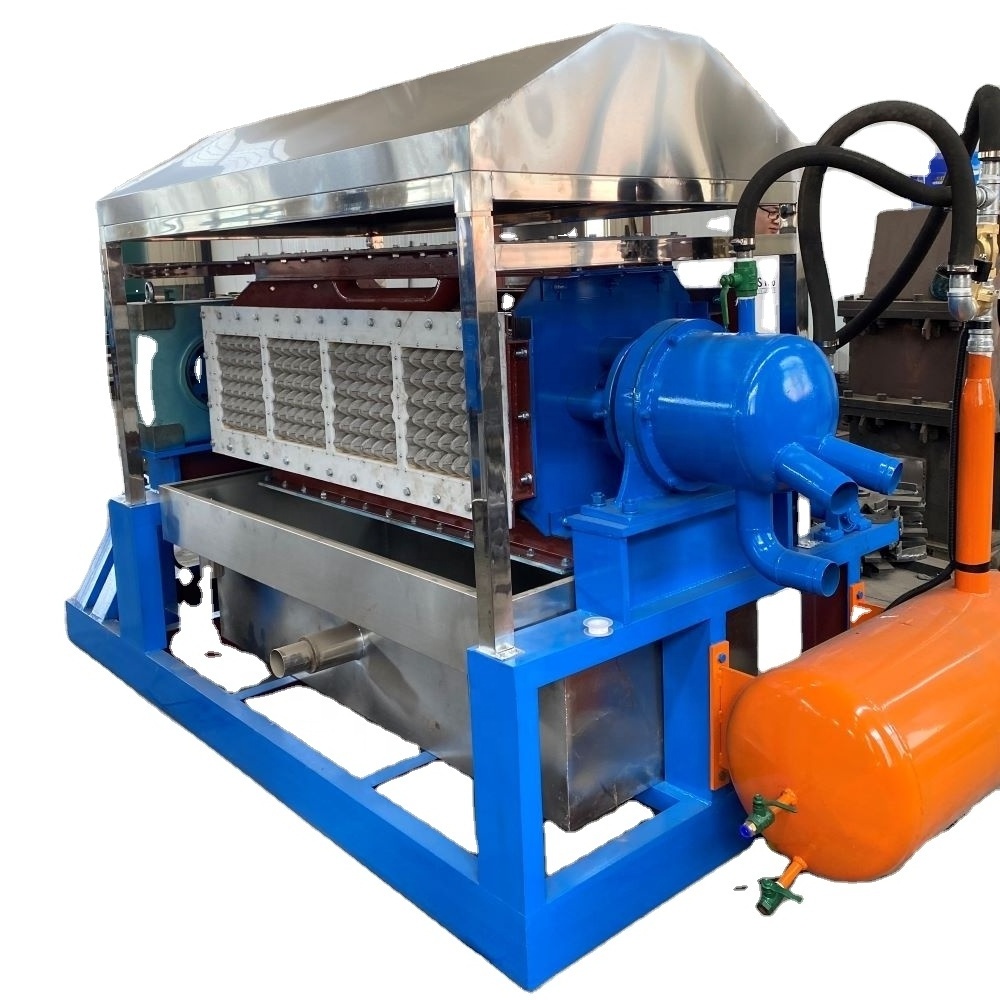

QA Standard and Best Price automatic paper egg plate pressing/forming/molding machine
The major equipment of pulp molding egg tray making machine are three parts include:
Pulp Making System-- Molding System--Drying system and Stacking system
Product description:
1,Mainly producing the pulp molded products,such as egg tray ,egg box, fruit tray, coffee tray.
2,Material for the molded pulp products is waste paper,corrugated paper,waste newspaper,magazine.
3,Semi-automatic control, PLC+Touch screen controller.
4,Stainless steel pulp tank,the surface of platens covered with stainless steel.
5,Transferred to a flat-bed automatically
Features:
1, capacity 800pcs,1000,1500,2000,2500,3000,3500,4000pcs per hour.
2,use wast paper as raw materials.
3,machine including making pulp unit ,moluding unit and dryer unit.
4,computer control,
Process of tray forming machine line:
Step 1: Put the prepared raw materials,such as waste paper carton,newspaper etc. into hydrapulper,making paper pulp by the shear force and friction force of water,transfer the prepared paper pulp into pulp pool.
Step 2: Transfer the paper pulp into mixing pool 1,filtering the impurities out of paper pulp at the same time,adjusting the concentration of the pulp.
Step 3: Transfer the paper pulp which in mixing pool 1 into mixing 2 for second mixing.Now you can add such as color agent,waterproof and so on materials by your needs,stirred sufficiently.
Stept 4: Pumping the prepared paper pulp from mixing pool 2 by pulp pump into molding machine,then the mold on the top sink into paper pulp completely,under the pumping action of the mold which has vacuum action in the back,pulp is adsorbed on the surface of the mold,at the same time,water in the pulp is pumped out,then the wet paper tray was formed on the surface of the mold.
Step 5: When the molding machine working,the water in the pulp will pumped out by the vacuum pump,then discharging the waste water into waste water pool.
Step 6: Waste water in the waste water can be recycling used.Transfer the waster into hydrapulper and mixing pool by waster paper pump to recycled used.
Step 7: Dying,the wet paper tray on the mold is about 2.5mm thickness and contain 75% moisture,then send the wet paper tray into dryer(120-180 ℃ ).
Stept 8: Packaging the final paper egg tray into warehouse.
Parameter of tray forming machine:
|
Model |
Mechanization |
Working Mode |
Capacity |
Drying System |
|
UT-W1000 |
Semi -automatic |
Reciprocating type |
800-1000 pcs/h |
small handcart |
|
UT-F1000 |
Automatic |
Rotary type |
800-1000 pcs/h |
mesh belt dryer |
|
UT-PT1500 |
Automatic |
Rotary type |
1000-1500pcs/h |
mesh belt dryer |
|
UT-W2000 |
Semi-automatic |
Reciprocating type |
2000-2200 pcs/h |
small handcart |
|
UT-F2000 |
Automatic |
Rotary type |
2000-2200 pcs/h |
mesh belt dryer |
|
UT-2500 |
Automatic |
Rotary type |
2200-2500 pcs/h |
mesh belt dryer |
|
UT-3000 |
Automatic |
Rotary type |
3000-3500 pcs/h |
mesh belt dryer |
|
UT-5000 |
Automatic |
Rotary type |
3500-4000 pcs/h |
mesh belt dryer |
Q : What's the raw material of Egg tray molding equipment ?
A :Material for the molded pulp products is waste paper,corrugated paper,waste newspaper, magazine.
Q :What type of the pulp product can be produced?
A:By changing relevant molds, our pulp molding machinery can make many kinds of pulp trays, suchas egg trays, egg cartons, bottle trays, electric spare part trays, fruit trays,etc.
Q: The cover area is large , can you provide us a layout diagram?
1.Waterproof packing with the international export standard by 20ft, 40ft, 40hp container.
2. Equipment Fittings, Electric Motor and Power Cabinet will be packed in Wooden Case or Iron Box. Other Equipment will be packed by Color-Stripes Plastic Cloth.
3. Or as per customer's requirements.
Pre-sale:
1. Suggest to client suitable models of our carbonization furnace, according to the raw material, including its type, huimidity, final charcoal capacity requirements.
2. Introduce machine's structure and features in detail, explain the price component;
3. answer client concerned questions.
After-sale:
1. Start production as soon as receiving down payment.
2. Send photos of machine in manufacturing and finished photos to client, for your better learn about the machine's condition.
3. Delivery machine in time, taking photos during loading, so you can "remote monitoring" your goods.
4. Documents and certificate available in time.
5. Manual documents available. Engineer can be sent to client site for installation instruction.
