Quick Details
-
Brand Name:
-
CNPNJI
-
Model Number:
-
PJ-VH-28.5
-
Color:
-
Black,customized colors
-
Working Temp:
-
-40℃~+110℃
-
Usage:
-
Fixing the conduits
-
Environmental:
-
Fresh material, not feed back
-
Advantage:
-
New design,Super quality
-
Fire Proof Level:
-
Approved Flammability V-2
-
Sample:
-
Samples free for any test
-
Connect:
-
Nylon Corrugated Conduit
-
High Quality Nylon Conduit Holders:
-
High Quality Nylon Conduit Holders
-
Certificated:
-
CE ROHS REACH
Quick Details
-
Type:
-
Flexible
-
Material:
-
Polyamide PA66
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CNPNJI
-
Model Number:
-
PJ-VH-28.5
-
Color:
-
Black,customized colors
-
Working Temp:
-
-40℃~+110℃
-
Usage:
-
Fixing the conduits
-
Environmental:
-
Fresh material, not feed back
-
Advantage:
-
New design,Super quality
-
Fire Proof Level:
-
Approved Flammability V-2
-
Sample:
-
Samples free for any test
-
Connect:
-
Nylon Corrugated Conduit
-
High Quality Nylon Conduit Holders:
-
High Quality Nylon Conduit Holders
-
Certificated:
-
CE ROHS REACH

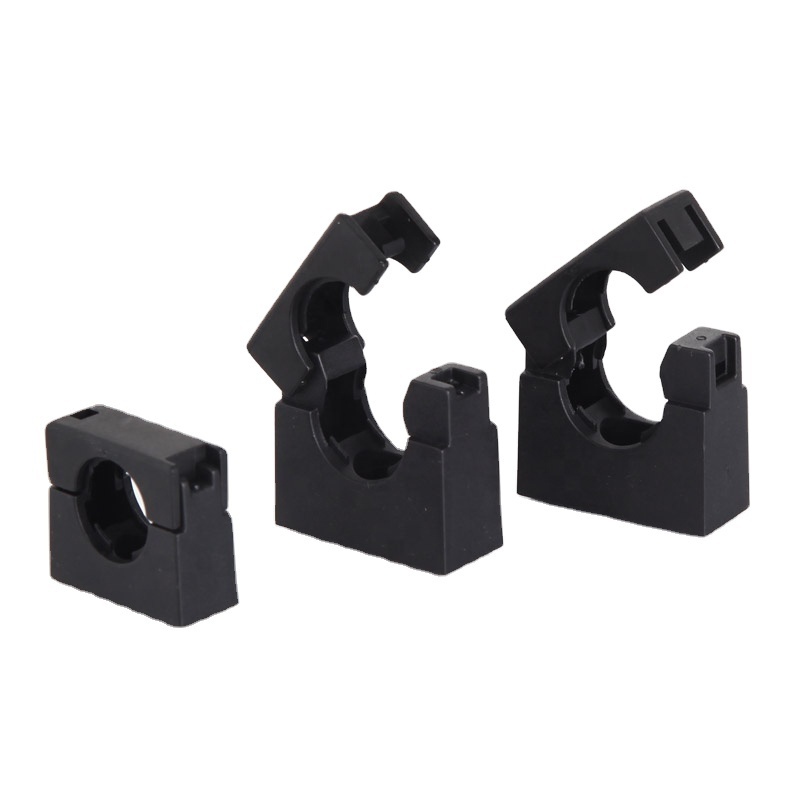

High Quality Nylon Conduit Holders
1. S pecification
| Product Picture | Brackets For Flexible Pipe | |
|
Model | PJ-VH-28.5 |
| Size of applicable pipe | for AD28.5 (3/4 inch) pipe | |
| Color | Black /Customized colors | |
| Material | Polyamide PA66 | |
| Fire certificate | UL94 V2 or Customized UL 94 V0 | |
| IP Class | IP55 | |
| Working temperature | -40°C~110°C (-40°F~212°F) | |
| Application |
Cable Protection Conduit Holders, also called brackets for flexible conduit brackets , or plastic conduit clamps /clips, are widely used in wire and cable protection system to fix and hold the plastic flexible conduits. |
|
| Certification | CE/RoHS/SGS/IP68/UL | |
| MOQ | Small order can be accepted | |
| Payment term | T/T / Cash / WestUnion / Paypal | |
| Delivery Time | 5working days if in stock | |
| Packaging | 50/100/200PCS per bag with label,export standard carton | |
| Design ability | We can supply sample, OEM & ODM is welcomed (Design, Engineering, Photographing, Sample, Production) | |
2. Exploded View And Applications Of IP68 Cable Gland
| Size | Accommodated Pipes | H(mm) | B(mm) | T(mm) | M(mm) | A(mm) | |
| PJ-VH-10.0 | AD10.0 | 1/4" | 30 | 23 | 12.5 | 4 | 6.5 |
| PJ-VH-13.0 | AD13.0 | 5/16" | 30 | 23 | 12.5 | 4 | 6.5 |
| PJ-VH-15.8 | AD15.8 | 3/8" | 30 | 23 | 12.5 | 4 | 6.5 |
| PJ-VH-18.5 | AD18.5 | 35 | 30 | 15 | 5 | 6.5 | |
| PJ-VH-21.2 | AD21.2 | 1/2" | 35 | 30 | 15 | 5 | 6.5 |
| PJ-VH-25 | AD-25.0 | 35 | 30 | 15 | 5 | 6.5 | |
| PJ-VH-28.5 | AD28.5 | 3/4" | 42 | 38 | 16 | 6 | 11.5 |
| PJ-VH-34.5 | AD34.5 | 1" | 51 | 43 | 16 | 6 | 11.5 |
| PJ-VH-42.5 | AD42.5 | 1 1/4" | 61 | 51 | 16 | 6 | 11.5 |
| PJ-VH-54.5 | AD54.5 | 2 | 74 | 64 | 20 | 6 | 11.5 |
