Quick Details
-
Brand Name:
-
KOMAY
-
Model Number:
-

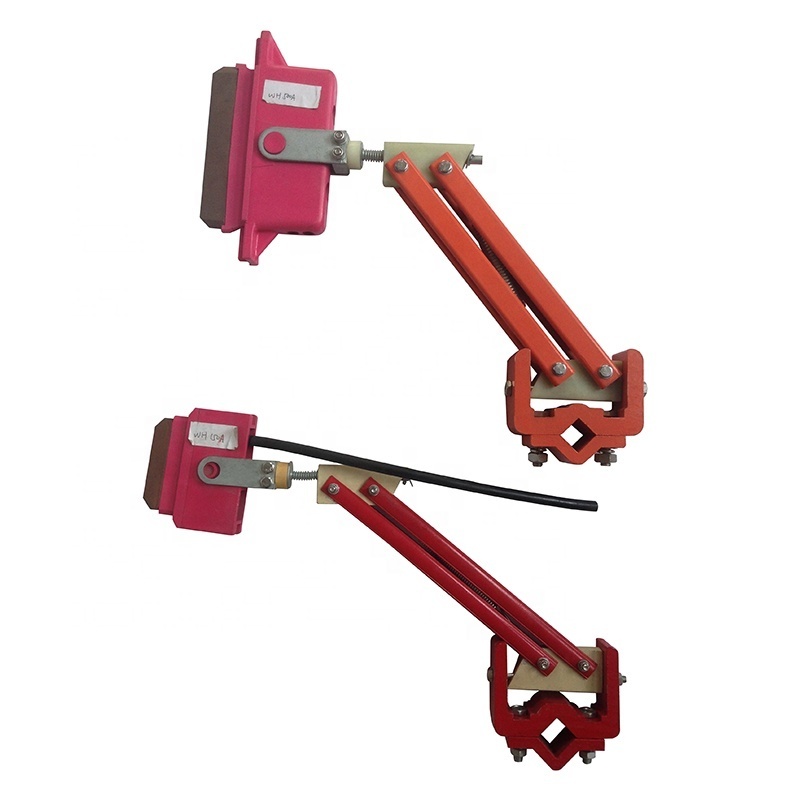

WH Current Collector
-
Product Name:
-
Current Collector for Conductor Bar Systems
-
Poles:
-
Single Pole Conductor Bar
-
Application:
-
Overhead crane,monorails,electric hoists
-
Certificate:
-
ISO CCC
-
Usage:
-
Indoor and outdoor
-
Conductor Material:
-
Copper
-
Hardware:
-
Galvanized steel
-
Advantages:
-
Installation easily and quickly
-
Type:
-
Insulator
-
OEM:
-
Accept
Quick Details
-
Voltage:
-
690V
-
Current:
-
200A/400A/500A/800A/1000A/1600A
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
KOMAY
-
Model Number:
-
WH Current Collector
-
Product Name:
-
Current Collector for Conductor Bar Systems
-
Poles:
-
Single Pole Conductor Bar
-
Application:
-
Overhead crane,monorails,electric hoists
-
Certificate:
-
ISO CCC
-
Usage:
-
Indoor and outdoor
-
Conductor Material:
-
Copper
-
Hardware:
-
Galvanized steel
-
Advantages:
-
Installation easily and quickly
-
Type:
-
Insulator
-
OEM:
-
Accept
Products Description
The JDC-W conductor rail system is a modern power supply system using single –pole insulated conductor rails.
It complies with the latest regulations and provides the electric energy for mobile consumers. The conductor rail is material copper (200A-5000A), aluminum (150A-3000A). The aluminum conductor rail is provided with a proven and patented stainless steel contact surface.
The conductor rail system can be installed indoor or outdoor. For high temperature conditions, a high temperature insulation cover up to +115°C is available, also for low temperature conditions, it could be up to -40 °C.
It complies with the latest regulations and provides the electric energy for mobile consumers. The conductor rail is material copper (200A-5000A), aluminum (150A-3000A). The aluminum conductor rail is provided with a proven and patented stainless steel contact surface.
The conductor rail system can be installed indoor or outdoor. For high temperature conditions, a high temperature insulation cover up to +115°C is available, also for low temperature conditions, it could be up to -40 °C.
|
Type
|
Weight (kg)
|
Hardware
|
Rated Current
|
|
JD-400
|
1.75
|
Galvanized steel
|
400A
|
|
JD*2-400
|
3.45
|
Galvanized steel
|
800A
|
|
JDL-400
|
2.35
|
Aluminium
|
400A
|
|
JDL*2-400
|
4.61
|
Aluminium
|
800A
|
|
JDT-500
|
3.05
|
Aluminium
|
500A
|
|
JDT*2-500
|
6.01
|
Aluminium
|
1000A
|
|
JD-200
|
1.45
|
Galvanized steel
|
200A
|
|
JD*2-200
|
2.72
|
Galvanized steel
|
400A
|
|
JDL-200
|
1.18
|
Aluminium
|
200A
|
|
JDL*2-200
|
2.25
|
Aluminium
|
400A
|
|
JD-800
|
5.10
|
Galvanized steel
|
800A
|
|
JD*2-800
|
10.2
|
Galvanized steel
|
1600A
|
Application
