Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
winwin
-
Model Number:
-
GYC-600-1400
-
Voltage:
-
220V, 380V
-
Dimension(L*W*H):
-
1550x1900x1300mm
-
Weight:
-
1000 KG
-
Marketing Type:
-
Other
-
Max Speed:
-
30-120pcs/min*2lines
-
product name:
-

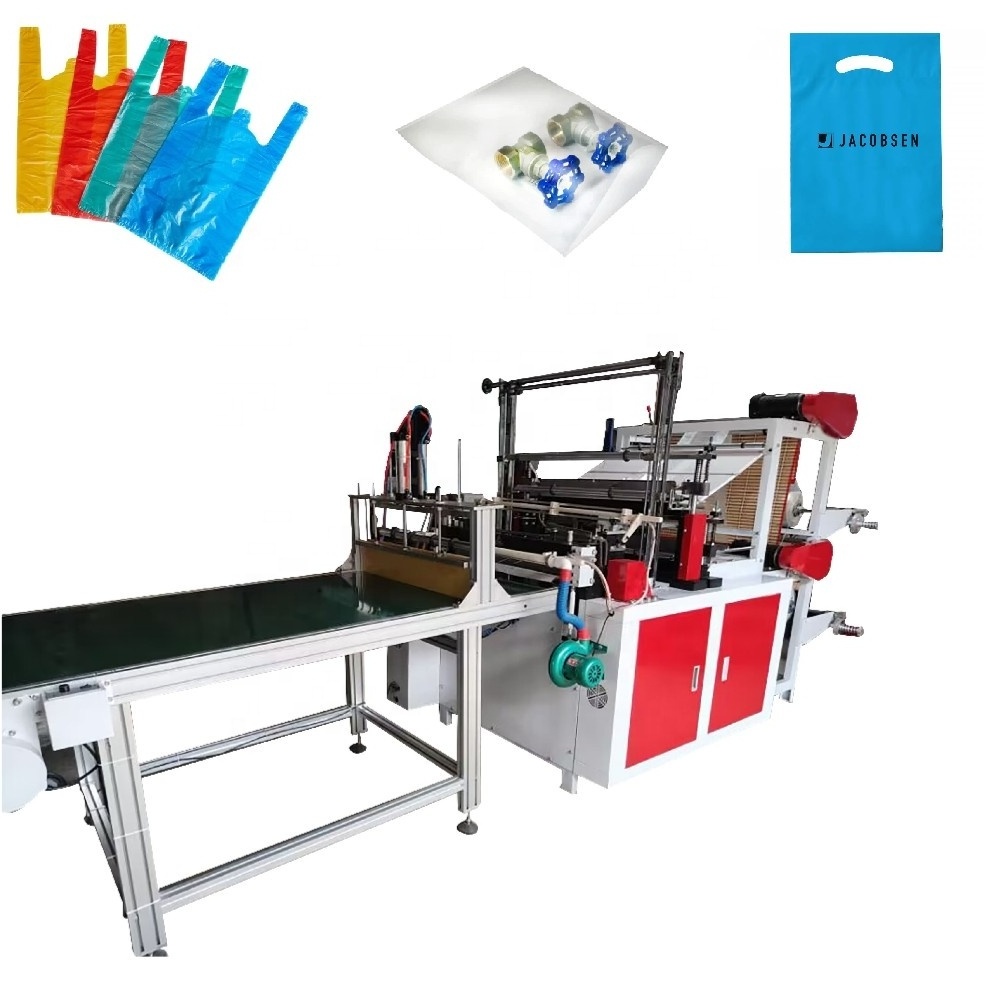

Two Layer HDPE LDPE PE Poly plastic bag cutting making machine
-
keyword:
-
pe bag cutting sealing machine
-
bags:
-
PE T-shirt bags, flat bags
-
speed:
-
30-120pcs/min */2 lines
Quick Details
-
Machine Type:
-
Cutting Machine
-
Bag Type:
-
Flat Bag,T-shirt Bag
-
Material:
-
Plastic
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
winwin
-
Model Number:
-
GYC-600-1400
-
Voltage:
-
220V, 380V
-
Dimension(L*W*H):
-
1550x1900x1300mm
-
Weight:
-
1000 KG
-
Marketing Type:
-
Other
-
Max Speed:
-
30-120pcs/min*2lines
-
product name:
-
Two Layer HDPE LDPE PE Poly plastic bag cutting making machine
-
keyword:
-
pe bag cutting sealing machine
-
bags:
-
PE T-shirt bags, flat bags
-
speed:
-
30-120pcs/min */2 lines
Product Overview
Adopts micro computer to control and step motor to pull material.
Producing piece number can be set up freely
Imported photoelectrical cell to track printing
Automatically stops if lose sign
Two pieces of production line simultaneously to improve output
If the bag without printing, the machine can produce 2 line, 4 line bags according to bag width.
Conveyor belt is optional device
PRODUCT SPECIFICATIONS
Use:
It is suitable for cutting & sealing HDPE, LDPE film. It’s most ideal equipment for producing T-shirt bag, flat bag. It can produce 2 lines non-printing bags at one time.
Features:
1. It adopts micro computer to control, step motor to pull material; And producing piece number can be set up freely.
2. It adopts imported photoelectrical cell to track printing; If lose sign, the machine stops automatically.
3. Natural color bag can be produced by two pieces of production line simultaneously, which will improve output obviously.
1. It adopts micro computer to control, step motor to pull material; And producing piece number can be set up freely.
2. It adopts imported photoelectrical cell to track printing; If lose sign, the machine stops automatically.
3. Natural color bag can be produced by two pieces of production line simultaneously, which will improve output obviously.
|
Model
|
GYC-600
|
GYC-800
|
GYC-1000
|
GYC-1200
|
GYC-1400
|
||||
|
Max. bag Length
|
1500mm
|
|
|
|
|
||||
|
Max. bag Width
|
530mm
|
730mm
|
930mm
|
1100mm
|
1300mm
|
||||
|
Thickness of Film
|
0.01-0.10mm*2 layer
|
|
|
|
|
||||
|
Producing Speed
|
30-120pcs/min */2 lines
According to bag size and thickness |
|
|
|
|
||||
|
Main motor power
|
1.5kw
|
1.5kw
|
1.5kw
|
2.2kw
|
2.2kw
|
||||
|
Inverter power
|
1.5kw
|
1.5kw
|
1.5kw
|
2.2kw
|
2.2kw
|
||||
|
Machine Weight
|
800kgs
|
900kgs
|
1100kg
|
1200kgs
|
1350kgs
|
||||
|
Overall Dimensions (L× W× H)
|
3300× 1150× 1700mm
|
3300× 1350× 1700mm
|
3300× 1550× 1700mm
|
3300× 1750× 1700mm
|
3300× 1950× 1700mm
|
||||
