Quick Details
-
Rated Current:
-
16A / 32A
-
Rated voltage:
-
250V
-
Operating temperature:
-
-30℃ to 50℃
-
Withstand voltage:
-
2000 Vac
-
Power:
-
250V / 7kW
Quick Details
-
Place of Origin:
-
Guangdong, China
-
connector standard:
-

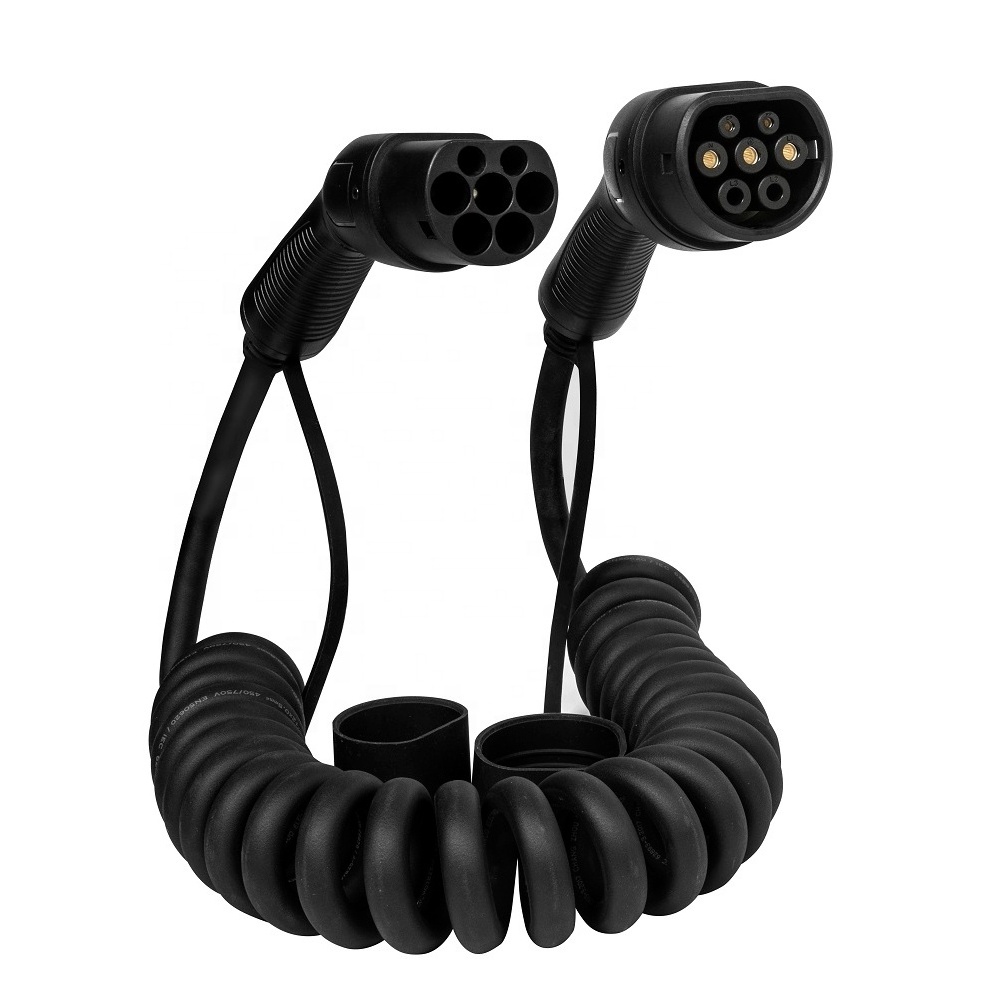

type 2 to type 2
-
cable color:
-
Black
-
Rated Current:
-
16A / 32A
-
Rated voltage:
-
250V
-
Operating temperature:
-
-30℃ to 50℃
-
Withstand voltage:
-
2000 Vac
-
Power:
-
250V / 7kW
Product Description
Specification
|
Protection rank
|
IP54
|
|
Fire retardant level
|
94 V-0
|
|
Rated Current
|
16A / 32A
|
|
Rated voltage
|
250V
|
|
Insulation resistance
|
> 100M ohm (DC 500V)
|
|
Terminal temperature rise
|
<50K
|
|
Withstand voltage
|
2000V
|
|
Contact resistance
|
0.5m ohm Max
|
|
Coupled insertion force
|
>45N <80N
|
|
Operating temperature
|
30℃ to 50℃
|
|
Mechanical life
|
no load plug in / pull out > 10000 times
|
|
Impact of external force
|
qualify 1m drop or 2 Ton vehicle run over
|
|
Connector
|
by copper alloy with nickel bottom plating and 3um silver surface plating
|
|
Shell
|
white/ black by thermoplastic PC. Fire retardant. Other color optional by customizing
|
|
Cable
|
black with TPU jacket. Other color optional by customizing
|
|
Package
|
Each in handover bag, then in Pizza box, then 5 Pizza boxes into 1 master carton
Handover bag: Oxford cloth with zipper & handle, easy for end users to keep (extra cost) |
|
Features
|
Product conforms to IEC61851-1:2019, EN62196-1:2014 EN62196-2:2017, and EN17186:2019
IP54 protection; Fire-retardant; Pressure resistance; Abrasion resistance; Impact resistance |
FAQ
1. What's the rate of EV Charging Cable you have?
Single phase16A / Single phase 32A / Three phase 16A / Three phase 32A
2. Can I print my logo?
Yes MOQ 500pcs. There is no extra fee.
3. Can I customize different colors for the connector or cable?
Yes of course. MOQ 500pcs.
4. How is the warranty?
Same Q'ty good cables compensation against same Q'ty bad ones
5. How long is the lead time?
For sample orders, we can ship in 2 to 5 days. For mass orders, around 15 to 30 days.
6. Can I visit your company before placing the Order?
Yes. You can visit any time.
2. Can I print my logo?
Yes MOQ 500pcs. There is no extra fee.
3. Can I customize different colors for the connector or cable?
Yes of course. MOQ 500pcs.
4. How is the warranty?
Same Q'ty good cables compensation against same Q'ty bad ones
5. How long is the lead time?
For sample orders, we can ship in 2 to 5 days. For mass orders, around 15 to 30 days.
6. Can I visit your company before placing the Order?
Yes. You can visit any time.
