Quick Details
-
Product Name:
-

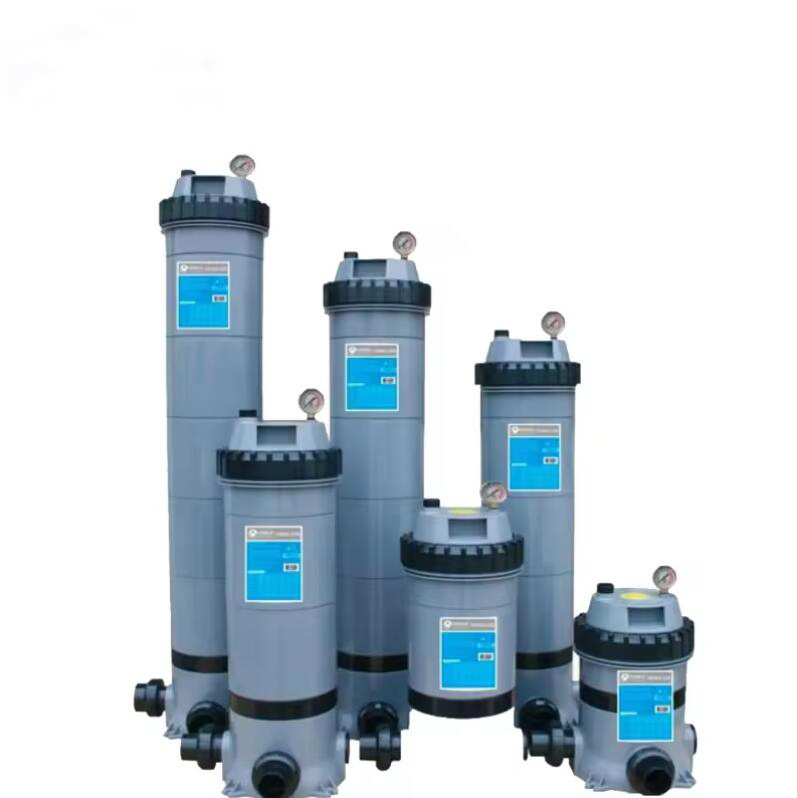

Cartridge pool filter with element
-
Color:
-
Grey/Blue
-
Flow rate:
-
24m³/hr
-
Filtration area:
-
14sqm
-
Filter type:
-
Filter element
-
Height:
-
1141mm
-
Application:
-
Villa pool,School,Club,Hotel,Competition Pool
-
Installation:
-
Connect with pump
-
MOQ:
-
1 Piece
-
Logo printing:
-
Yes, OEM,ODM
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Miuswim
-
Model Number:
-
GS900S
-
Product Name:
-
Cartridge pool filter with element
-
Color:
-
Grey/Blue
-
Flow rate:
-
24m³/hr
-
Filtration area:
-
14sqm
-
Filter type:
-
Filter element
-
Height:
-
1141mm
-
Application:
-
Villa pool,School,Club,Hotel,Competition Pool
-
Installation:
-
Connect with pump
-
MOQ:
-
1 Piece
-
Logo printing:
-
Yes, OEM,ODM
Product Description
1. This cartridge f ilter comes with a UV resistant tank and a heavy duty ring rock lid which allows easy cleaning valve and replacement of the cartridge element. A-screw type air bleed valve releases trapped air inside the filter tank. The high quality oil-filled pressure gauge provides an easy overview of the operating pressure.
2.
Paper core layer by layer precision filtration,using polyester brazing filter material as raw
material, folding design to increase filtration
area, pressure difference paper, high flux, used
for
swimming pool pollutants, debris can be collected by the paper core.
Features
1.
Compact and light
2.
UV-resistant tank
3.
Easy to service
4.
Heavy duty ring-lock lid allows easy cleaning and replacement of the cartridge element
5.
Screw type air bleeder for easy removal of the trapped air inside the filter tank
6.
High quality oil filled pressure gauge
Model | Tank dia | Height | Pump size | Captridge area | Design flow | Maximum pressure |
Af25 | 225mm | 425mm | 250-370W | 2.3m² | 11m³/h | 350Kpa |
Af50 | 225mm | 605mm | 550-750W | 4.7m² | 14m³/h | 350Kpa |
Af75 | 225mm | 781mm | 750-1100W | 7m² | 17m³/h | 350Kpa |
Af100 | 225mm | 961mm | 1100-1500W | 9.4m² | 19m³/h | 350Kpa |
Af150 | 225mm | 1141mm | 1100-2200W | 14m² | 24m³/h | 350Kpa |
More Details
Joint fitting Exhaust valve Pressure gauge
Plug Safety release valve
Working Effect
More Choices
