- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Dahan
-
Voltage:
-
220/340v/380V415v/440v
-
Dimension(L*W*H):
-
To be confirmed
-
Product name:
-
Vibrating Conveyor
-
Usage:
-
Horizontal Convey
-
Frame Material:
-
SUS304/Carbon Steel
-
Feature:
-
Simple Operation
-
Function:
-
Conveying Equipment
-
Advantage:
-
Long Working Life
-
Motor:
-
2 Vibrating Motor
-
Installation:
-
Engineer's Guide
-
Brand:
-
DAHAN
-
Packing:
-
Wooden Case
-
Certification:
-
ISO;CE
Quick Details
-
Power:
-
2.2 KW, 1.5 KW, 1.8 KW, 5.5 KW, 4.5 KW
-
Warranty:
-
1 Year
-
Width or Diameter:
-
400mm
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Dahan
-
Voltage:
-
220/340v/380V415v/440v
-
Dimension(L*W*H):
-
To be confirmed
-
Product name:
-
Vibrating Conveyor
-
Usage:
-
Horizontal Convey
-
Frame Material:
-
SUS304/Carbon Steel
-
Feature:
-
Simple Operation
-
Function:
-
Conveying Equipment
-
Advantage:
-
Long Working Life
-
Motor:
-
2 Vibrating Motor
-
Installation:
-
Engineer's Guide
-
Brand:
-
DAHAN
-
Packing:
-
Wooden Case
-
Certification:
-
ISO;CE
Product Description

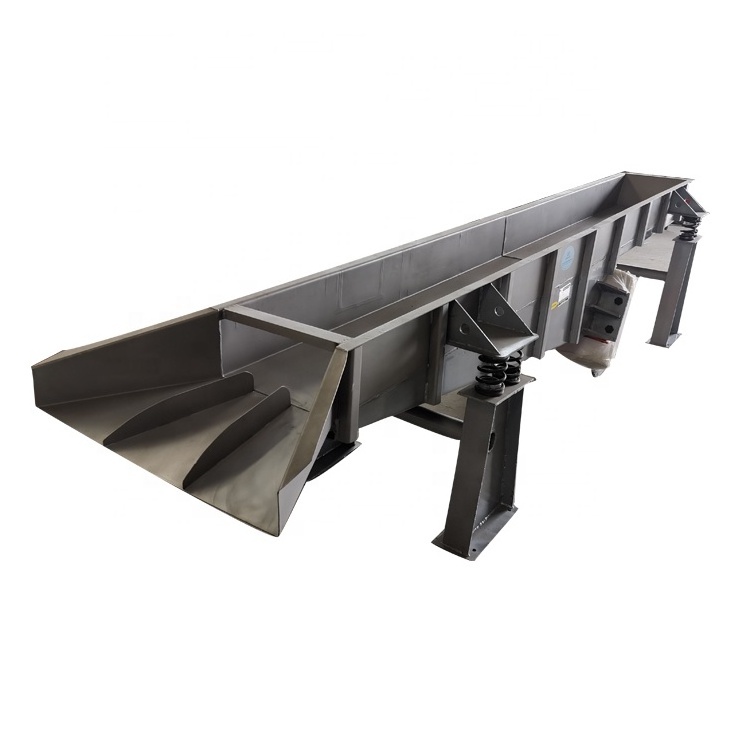

China Supplier Food Grade Magnetic Vibration Feeder is an important inertia feeding machine.Its simple structure and various forms and specifications can meet the requirements from different application backgrounds in various industry,it is widely applied to short and intermediate transportation of small block,granular,and power material.
Specification
|
Model
|
Capacity
(t/h)
|
Dimension
(mm)
|
conveying size
(mm)
|
Voltage
(V)
|
Speed(r/min)
|
Power
(kw)
|
|
GZG30-4
|
15
|
300*1000*160
|
120
|
380V or custom
|
1450
|
0.18*2
|
|
GZG40-4
|
30
|
400*1200*160
|
|
|
|
0.25*2
|
|
GZG50-4
|
50
|
500*1200*180
|
|
|
|
0.4*2
|
|
GZG60-4
|
80
|
600*1800*180
|
180
|
|
|
0.75*2
|
|
GZG70-4
|
100
|
700*1800*200
|
|
|
|
1.1*2
|
|
GZG80-4
|
200
|
800*2000*225
|
200
|
|
|
1.5*2
|
|
GZG90-4
|
300
|
900*1500*300
|
250
|
|
|
2.2*2
|
|
GZG110-4
|
400
|
1100*1500*300
|
|
|
|
|
|
GZG130-4
|
500
|
1300*1500*400
|
350
|
|
|
|
|
GZG70-6
|
80
|
700*1800*200
|
150
|
|
960
|
1.5*2
|
|
GZG80-6
|
160
|
800*2000*225
|
180
|
|
|
2.2*2
|
|
GZG90-6
|
240
|
900*1500*300
|
240
|
|
|
3.0*2
|
|
GZG110-6
|
320
|
1100*1500*300
|
|
|
|
3.7*2
|
|
GZG130-6
|
400
|
1300*1500*400
|
320
|
|
|
|
|
GZG150-6
|
500
|
1500*1800*500
|
|
|
|
|
|
GZG180-6
|
800
|
1800*1800*500
|
|
|
|
5.5*2
|
|
GZG200-6
|
1000
|
2000*2000*500
|
360
|
|
|
|
Working principle
The working principle of the vibrating conveyor is that rotating spiral blade push materials for screw conveyor. The acting force that not make the material and the blades of the screw conveyor rotating together is the gravity of the material itself and the friction between screw conveyor casing and material.
Advantages&Features
1.The large bearing capacity, safe and reliable.
2.Strong adaptability, easy installation and maintenance, long service life.
3.The machine is small in size, high speed, ensure rapid delivery uniformity.
4.The discharge end is equipped with cleaning device, low noise, strong adaptability, in and out of the mouth position arranged flexibly.
5.Good sealing, shell made of seamless steel tube end use flange connection each other as a body, good rigidity.
Application
Packing & Delivery
Can be packed according to the size of the machine.Our standard exporting packing is Fumigation-free wooden case,and 1 set/case.If you have sepcial requipment,please just inform us.
