Quick Details
-
Filling Accuracy:
-
±1%
-
Voltage:
-
110V/220V, 110V/220V
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JSM
-
Dimension(L*W*H):
-
200*150*160CM
-
Weight:
-
350 KG
-
Product name:
-
Turntable Filling capping machine
-
Power:
-
1.5KW
-
Working speed:
-
20-40 Bottle/min
-
Bottle type:
-
Spray Bottle, Dropper Bottle
Quick Details
-
Machinery Capacity:
-
2000BPH, 1000BPH
-
Packaging Material:
-
Plastic, Glass
-
Filling Material:
-
Water, Oil
-
Filling Accuracy:
-
±1%
-
Voltage:
-
110V/220V, 110V/220V
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JSM
-
Dimension(L*W*H):
-
200*150*160CM
-
Weight:
-
350 KG
-
Product name:
-
Turntable Filling capping machine
-
Power:
-
1.5KW
-
Working speed:
-
20-40 Bottle/min
-
Bottle type:
-
Spray Bottle, Dropper Bottle
Product Description
Product Application

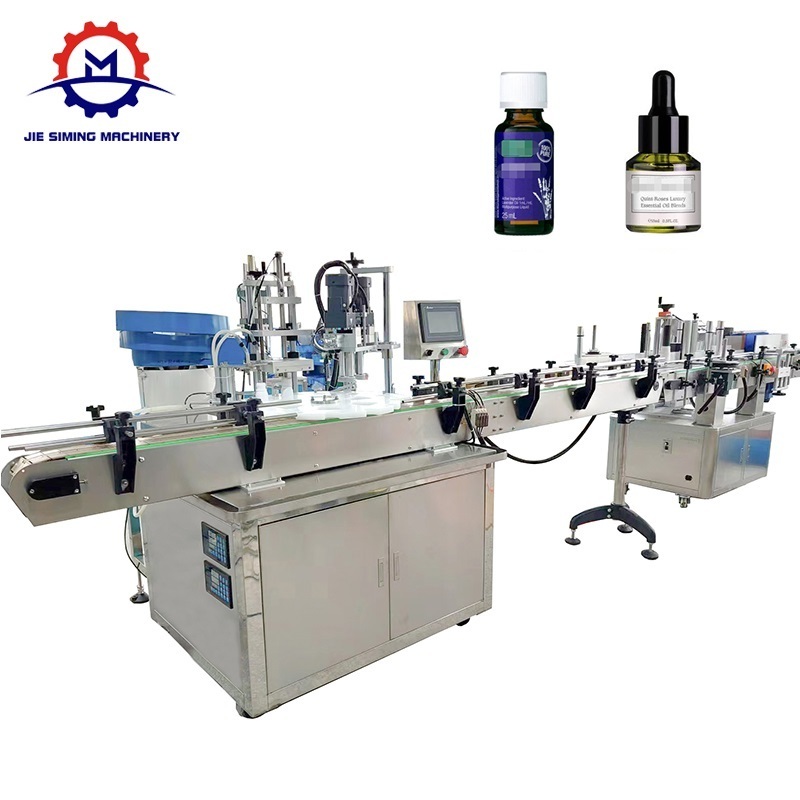

This rotary filling capping machine can be used for filling liquids/paste, automatic cap feeder, and bottle cap capping.
Magnetic pumps, peristaltic pumps, or piston pumps can be used to match paste liquids with different fluidity.
Features
1.Dual filling head, fast filling speed and high efficiency.
2.PLC touch screen control panel, easy to operate, and stable machine operation.
3.Multifunctional, It can fill liquid/paste, feed caps and capping cap at one machine.
4.The rotary dish can be customized according to bottle size.
5. Match different cap feeder devices and capping heads according to different type bottle caps.
6.
The machine can be used with machines such as bottom unscrambler, paste liquid feeder, and labeling machine.
7. Compact structure and small footprint.
The machine is mainly used for the products packed by dropper cap,flat cap, spray cap, essential oil cap, flip cap and conical cap. It is widely used in cosmetics, food, chemical and industries.
Specification
|
Equipment name
|
Automatic Filling Capping Machine
|
|
Model
|
JSM-ZFC2
|
|
Voltage
|
110V/220V 50/60HZ
|
|
Power
|
1.5KW
|
|
Cap diameter
|
1-5CM or 2-6CM
|
|
Bottle diameter
|
25-50mm(Can Customize)
|
|
Bottle height
|
50-200mm(Can Customize)
|
|
Working speed
|
20-40 Bottle/Min
|
|
Filling range
|
Customized
|
|
Filling type
|
Magnetic pump/piston pump/peristaltic pump
|
|
Air pressure
|
0.4-0.6MPa
|
|
Conveyor size
|
About 2000*100mm(L*W)
|
|
Dimension(L*W*H)
|
About 200*130*165CM
|
|
Weight
|
About 350KG
|
Product Detail
1.Filling part
Select pumps based on filling materials
Magnetic pump
: When filling small capacity liquids, it is recommended to configure magnetic pump.
The filling range is adjusted by setting the filling time.
Max flow:4L/MIN
Piston pump
: When filling paste or large capacity liquid, it is recommended to equip piston pump.
Filling range:3-30ML/10-100ML/30-300ML
Hopper volume:30L
Peristaltic pump
: When filling various perfume, it is recommended to configure a peristaltic pump.
The filling range is adjusted by setting the filling time.
Max flow:1L/MIN
2.Cap feeder part
Select cap feeder based on cap type
Press cap feeder
: Flat cap, Round cap.
Fall cap feeder
: Dropper cap, Spray cap.
3.Capping part
Select capping device based on cap type and diameter
4 head capping device:
Cap diameter 2-6CM
Single head capping device:
Cap diameter 1-5CM
The 4 head capping device has wide applicability.
Single head capping machine is more suitable for heavy cap or cap with easily damaged anti-theft buckles.
4.Vibrating disk
Match different vibration disks according to different types of caps
PLC control panel
It can be used to adjust and control machine data, with simple operation, reducing work errors, and improving production efficiency.
Turntable design
The capping device and cap feeding device. The size of the bottle cap is not limited, and the machine is customized according to the size of the bottle cap.
Dust cover
The machine can add dust covers and bottle sorting machines according to customer requirements.
Convenient to match with other machinery
The machine can work with labeling machines, bottle receiver, etc.
