Quick Details
-
Place of Origin:
-
China
-
Wavelength:
-
1064nm
-
Weight (KG):
-
55 KG
-
Core Components:
-
Laser welding machine
-
Product name:
-
Jewellery Welding Machine
-
Cooling System:
-
Build-In Water Cooling
-
Laser type:
-
YAG
-
Application material:
-
Gold Silver Platinum
-
Laser power:
-
60W 80W 100W 125W
-
Power Supply:
-
AC220 5%/50HZ/110V/60HZ
-
Function:
-
Welding Steel
-
Advantage:
-
Eeasy Operate
-
Laser wavelength:
-
1064nm Laser Welding
Quick Details
-
Max. Output Power:
-
100
-
Usage:
-
Laser Welding Machine for Jewelry Soldering
-
Laser Source Brand:
-
YAG
-
Place of Origin:
-
China
-
Wavelength:
-
1064nm
-
Weight (KG):
-
55 KG
-
Core Components:
-
Laser welding machine
-
Product name:
-
Jewellery Welding Machine
-
Cooling System:
-
Build-In Water Cooling
-
Laser type:
-
YAG
-
Application material:
-
Gold Silver Platinum
-
Laser power:
-
60W 80W 100W 125W
-
Power Supply:
-
AC220 5%/50HZ/110V/60HZ
-
Function:
-
Welding Steel
-
Advantage:
-
Eeasy Operate
-
Laser wavelength:
-
1064nm Laser Welding

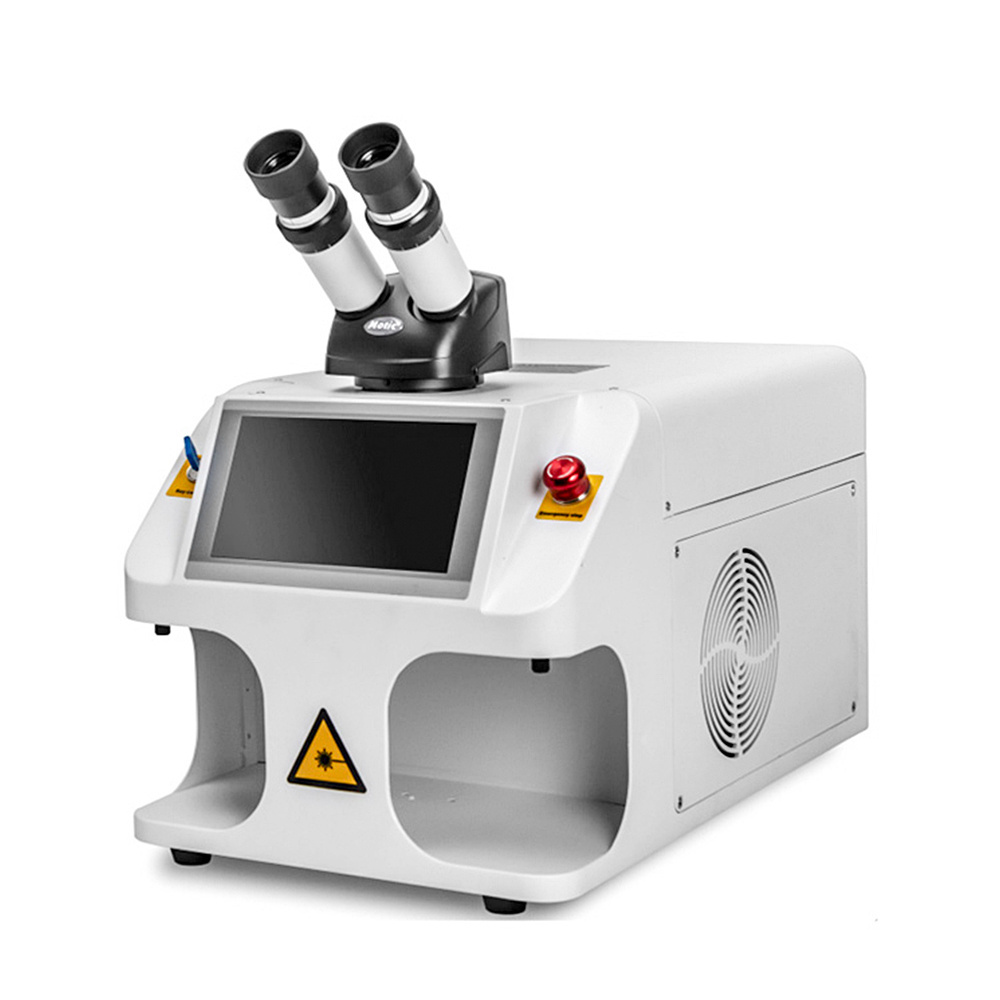

Portable welding machine for jewelry customized laser welding machine
Welcome to contact Lucy for product inquiries and technical support.
Mobile/ WhatsApp/Skype / WeChat: +86 13307107827
Technical Parameters
|
Wavelength |
1064nm |
|
Max. output power |
60W/ 60W/100W/125W |
|
Max. pulse energy |
40J /60J/70J |
|
Pump source |
Single lamp |
|
Pulse Width |
0. 1 - 1 0 ms |
|
Pulse frequency |
1- 10HzAdjustable level |
|
Aiming and positioning |
Microscope + camera system |
|
Application |
Welding and repairing all kinds of metal jewelry |
|
Host power consumption |
≤2KW |
|
electricity demand |
2 20 V±5% , 5 0HZ |
|
Cooling system |
Water circulation air cooling |
|
Dimensions |
L: 510 mm,M: 295 mm,H: 420mm |
Application of Laser welding machine:
Jewelry laser spot welding machine is widely used in aviation, aerospace, sporting goods, jewelry, golf clubs, medical equipment, aluminum alloy dentures, instrumentation, electronics, machining, automotive and other industries, in particular for the hole of gold and silver jewelry, Spot welding seams, inlaid force pieces and claw foot parts and other welding
Main configuration:
Crystal: customized version 7*110
Xenon lamp: customized version 8*90*180 (two poles with wire)
Power supply: 60W boost power supply
Microscope: Motic
Cavity: customized ceramic and cavity
Chiller: Custom built-in 2.8L water tank for air cooling
1. Observation system:
The observation system of this jewelry spot welding machine is composed of a microscope and a built-in high-definition CCD camera. Users can choose one or two of them as the observation method according to their needs. Both can clearly observe the welding position of the workpiece, which is convenient for welding.
2. Adjustment of the CCD cross cursor
: If the light spot is not in the center of the cross cursor in a very clear position of the CCD camera system, you can change the position of the cross cursor by clicking the middle position of the four sides of the screen, so that the welding spot is at the center of the cursor
3. For welding operation
, first make sure that the machine has been turned on normally, put the workpiece into the sight range of the observation system, and then slowly move to the clearest position of the observation system.
Point the cursor at the desired welding position, gently step on the foot switch, the machine has a laser output for welding.
4. Parameter adjustment, focus adjustment,
after the first welding, the welding effect of the welding point does not meet the requirements, and the parameters need to be adjusted again. The focus (-3.0-+3.0) is adjusted to make the welding effect meet the requirements, and the welding will not be repeated later. Need to be adjusted again.
