Quick Details
-
Model Number:
-
SJG
-
Power:
-
2.2kw
-
Rated Loading Capacity:
-
300kgs
-
Min. Lifting Height:
-
500mm
-
Max. Lifting Height:
-
8000mm
-
Table Size:
-
1400x1100mm
-
Weight:
-
400kgs
-
After-sales Service Provided:
-
Overseas third-party support available
-
Color:
-
white,red,black,green,yellow
-
Certification:
-
ISO
Quick Details
-
Warranty:
-
one year
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Honty
-
Model Number:
-
SJG
-
Power:
-
2.2kw
-
Rated Loading Capacity:
-
300kgs
-
Min. Lifting Height:
-
500mm
-
Max. Lifting Height:
-
8000mm
-
Table Size:
-
1400x1100mm
-
Weight:
-
400kgs
-
After-sales Service Provided:
-
Overseas third-party support available
-
Color:
-
white,red,black,green,yellow
-
Certification:
-
ISO

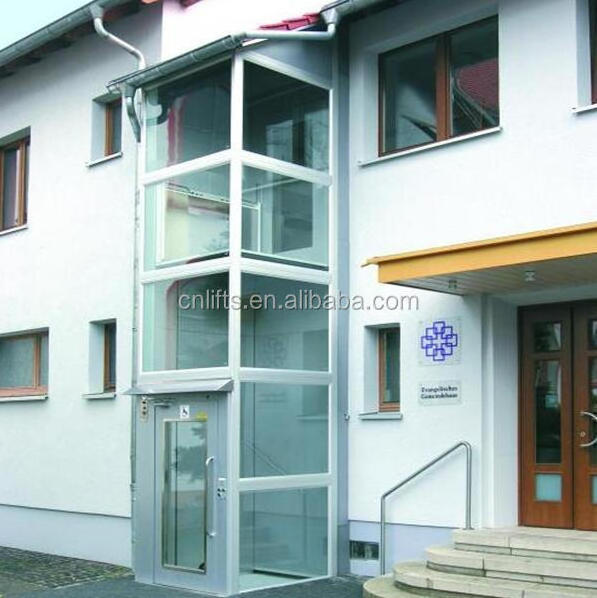

If you have difficulty using stairs, or use a wheelchair or mobility scooter, then a residential vertical lift is a great way
to ensure that you can always safely and conveniently enter and exit your home. All of our porch lifts are designed to
be completely resistant to the harshest weather conditions and are an affordable alternative to residential elevators.
|
Max travel height |
8000mm |
|
|
Min Platform height |
75 mm |
|
|
Configuration |
Open through or front and side entrances |
|
|
Speed |
60mm/s |
|
|
Control voltage |
24V/DC |
|
|
Power Output |
2.2 kw |
|
|
Power Input |
220V/50HZ (or customized for local power supply) |
|
|
Drive System |
Hydraulic |
|
|
Control Mode |
Inching Switch or Automatic |
|
|
Drive Control |
Self-resetting system |
|
|
Overload |
Protection Over current relay |
|
|
Material of Platform |
Stainless steel |
|
|
Guard panel & drive cabinet (framework) |
304 stainless steel
|
|
|
Operation Panel |
Spraying plastic |
|
|
Safety Wane Working Range |
75° |
|
|
Working Condition |
Both indoors and outdoors |
|
|
Working temperature |
From -10°~60°C |
|
|
Installation
|
No pit installation, directly fixed to concrete floor (the concrete floor below the platform shall not be lower than the ground) |
|
|
Control Device |
Calling box (installed on the wall nearby) and remote controller(Extra optional) |
|
|
Emergency Stop |
T he lifting and lowering process can be stopped immediately by pressing the emergency button. |
|
|
Safety device |
Safety Interlock |
Lock the platform when it is out of control |
|
Safety Sensor |
The operation must be stopped immediately the safety edge meets obstacles during operation.
|
|
|
Emergency lowering |
The platform can be lowered by opening hydraulic valve manually or rolling screw rod. |
|
|
Auto-flap |
Turn up after lifting |
|
