Quick Details
-
Product Name:
-
Huawei OceanStor 5300, 5500, 5600, and 5800 V3 Storage Systems
-
System Cache:
-
32 GB to 256 GB
-
Maximum Number of Controllers:
-
8
-
Supported Storage Protocols:
-
Fibre Channel, FCoE, iSCSI, InfiniBand, NFS, CIFS, HTTP, and FTP
-
Disk Types:
-
SSD, SAS, NL - SAS
-
Supported RAID Levels:
-
0, 1, 3, 5, 6, 10, and 50
-
Maximum Capacity of a Single File:
-
256TB
Quick Details
-
Brand Name:
-
Huawei
-
Model Number:
-
OceanStor 5300 V3
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
Huawei OceanStor 5300, 5500, 5600, and 5800 V3 Storage Systems
-
System Cache:
-
32 GB to 256 GB
-
Maximum Number of Controllers:
-
8
-
Supported Storage Protocols:
-
Fibre Channel, FCoE, iSCSI, InfiniBand, NFS, CIFS, HTTP, and FTP
-
Disk Types:
-
SSD, SAS, NL - SAS
-
Supported RAID Levels:
-
0, 1, 3, 5, 6, 10, and 50
-
Maximum Capacity of a Single File:
-
256TB

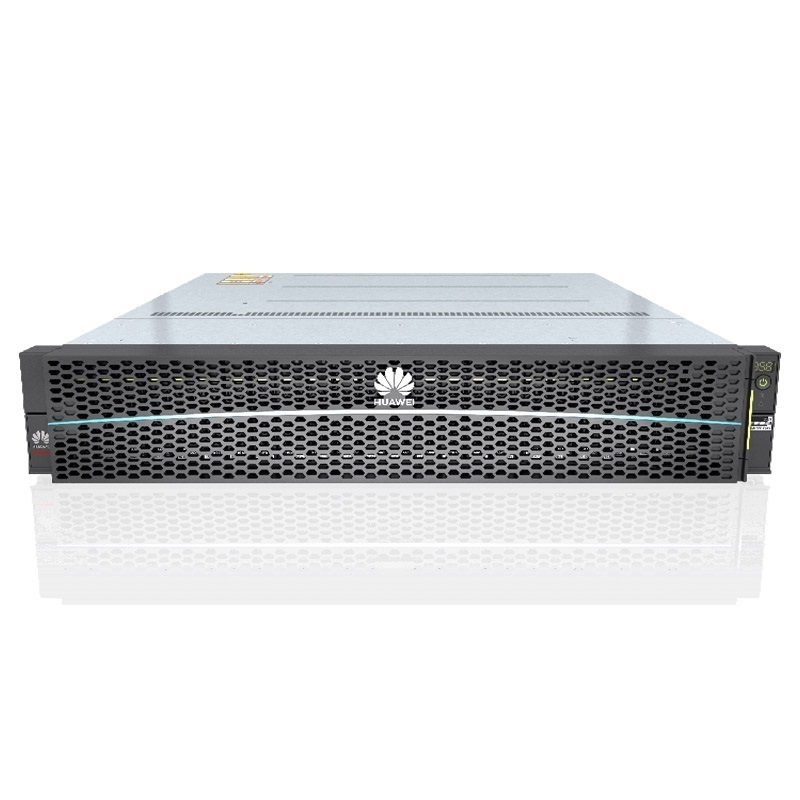

Huawei OceanStor 5300 5500 5600 and 5800 V3 Storage Systems
Huawei OceanStor 5300, 5500, 5600, and 5800 V3 mid-range storage systems are next-generation unified
storage products specifically designed for enterprise-class applications. Employing a storage operating system
built on a cloud-oriented architecture, a powerful new hardware platform, and a suite of intelligent management software, the V3 mid-range storage systems deliver industry-leading functionality, performance,
efficiency, reliability, and ease-of-use.
The V3 mid-range storage systems are ideal for applications such as large-database Online Transaction
Processing (OLTP)/Online Analytical Processing (OLAP), file sharing, and cloud computing. Further, these
systems offer a wide range of efficient backup and disaster recovery solutions.
With a versatile set of capabilities, the V3 mid-range storage systems can be widely applied in industries
ranging from government, finance, telecommunications, energy, to Media and Entertainment
Cloud-Oriented Storage Software
Multiple Controllers
Allows resources to be linearly expanded online to a maximum of eight controllers, 1 TB of cache, and 12 PB of storage capacity
Load balancing
Implements load balancing among controllers and eliminates single points of failure to ensure high system availability and the stability of online services. Multiple controllers concurrently process the same host service to smash the performance bottleneck of a single controller, significantly improving service processing efficiency
Convergence
Convergence of SAN and NAS
Provides elastic storage, simplifies service deployment,
improves storage resource utilization, and reduces Total
Cost of Ownership (TCO). Underlying storage resource
pools provide both block and file services and shorten
storage resource access paths to ensure that the two
services are equally efficient.
| Model | 5300 V3 | 5500 V3 | 5600 V3 | 5800 V3 |
| Controller Enclosure Specifications | ||||
| Storage Processors | Multi-core processors | |||
|
System Cache
(expanded by adding controllers) |
32 GB to 256 GB | 48 GB to 512 GB | 64 GB to 512 GB | 128 GB to 1,024 GB |
| Maximum Number of Controllers | 8 | 8 | 8 | 8 |
| Supported Storage Protocols | Fibre Channel, FCoE, iSCSI, InfiniBand, NFS, CIFS, HTTP, and FTP | |||
| Front-end Port Types | 8/16 Gbit/s Fibre Channel, 1/10 Gbit/s Ethernet, 10 Gbit/s FCoE, and 56 Gbit/s InfiniBand | |||
| Back-end Port Type | SAS 3.0 (each port supporting 4 x 12 Gbit/s) | |||
|
Maximum Number of
Hot Swappable I/O Modules per Controller |
2 | 2 | 8 | 8 |
|
Maximum Number of Front-end
Ports per Controller |
20 | 20 | 28 | 28 |
|
Maximum Number of Disks
Supported by Two Controllers |
500 | 750 | 1,000 | 1,500 |
| Disk Types | SSD, SAS, NL - SAS | |||
| Gateway Mode | Supported | |||
| Supported RAID Levels | 0, 1, 3, 5, 6, 10, and 50 | |||
| Maximum Number of Snapshots (LUN) | 2,048 | 4,096 | 8,192 | 8,192 |
| Maximum Number of LUNs | 4,096 | 8,192 | 16,384 | 16,384 |
|
Maximum Number of
Snapshots per File System |
2,048 | |||
| Maximum Capacity of a Single File | 256TB | |||
| Key Software Features | ||||
| Data Protection Software |
HyperSnap (snapshot) HyperCopy (LUN copy) HyperClone (clone)
HyperMirror (volume mirror) HyperReplication (remote replication) HyperLock (WORM) HyperMetro (active-active storage arrays) HyperVault (integrated backup) |
|||
| Mission-critical Service Protection |
SmartQoS (intelligent QoS control) SmartPartition (intelligent partitioning)
SmartCache (intelligent SSD caching) |
|||
| Resource Efficiency Improvement |
SmartTier (intelligent storage tiering) SmartThin (intelligent thin provisioning)
SmartMotion (intelligent data migration) SmartMulti-Tenant (multi-tenant) SmartMigration (LUN migration) SmartCompression (online compression) SmartDedupe (online deduplication) SmartQuota (quota management) SmartErase (data destruction) |
|||
| Storage Management Software |
UltraPath (multipathing management) Cloud Service (remote maintenance and management)
BCManager (disaster recovery management software) DeviceManager (manage single device) eSight (manage multiple devices) |
|||
