Quick Details
-
Model Number:
-
CNG-2 80L Gas Cylinder
-
Brand Name:
-
Wonder Gas
-
Type:
-
CNG-2 80L Gas Cylinder
-
Water Capacity:
-
80L cng cylinder
-
Outside Diameter:
-
356mm cng cylinder
-
Work Pressure:
-
200Bar cng cylinder
-
Test Pressure:
-
300Bar cng cylinder
-
Wall Thickness:
-
4.8mm cng cylinder
-
Cylinder Weight:
-
57.7kg cng cylinder
-
Used for:
-
cng cylinder for vehicle
-
Keywords:
-
cng cylinder
Quick Details
-
Material:
-
Steel
-
Use:
-
CNG
-
Place of Origin:
-
Shanghai, China
-
Model Number:
-
CNG-2 80L Gas Cylinder
-
Brand Name:
-
Wonder Gas
-
Type:
-
CNG-2 80L Gas Cylinder
-
Water Capacity:
-
80L cng cylinder
-
Outside Diameter:
-
356mm cng cylinder
-
Work Pressure:
-
200Bar cng cylinder
-
Test Pressure:
-
300Bar cng cylinder
-
Wall Thickness:
-
4.8mm cng cylinder
-
Cylinder Weight:
-
57.7kg cng cylinder
-
Used for:
-
cng cylinder for vehicle
-
Keywords:
-
cng cylinder
Wonder Gas is a professional manufacturer specialized in the production of Compressed Natural Gas Cylinders(CNG) , gas cylinders and gas equipment with latest technology and superior quality. We also have more than 30 years experience and have reputation in this field.
We adopt advanced production technology and equipment, and have strict production and inspection systems to control each production process, so as to provide customers with high-quality cylinders.The CNG Cylinders we mainly supply include CNG-1, CNG-2, CNG-3 and CNG-4 , and we focus on exporting CNG-1 and CNG-2 Cylinders.
CNG2 Natural Gas Composite Cylinder: ISO 11439 , ECE R110:
| Type |
Outside
diameter (mm) |
Volume
(L) |
Length
(without valve) (mm) |
Weight
(kg) |
Service
pressure (MPa) |
Design wall
Thickness (mm) |
Material |
| CNG2-335-50-20 | 325 | 50 | 784 | 39.5 | 20 | 4.6 | 30CrMo |
| CNG2-335-55-20 | 55 | 849 | 42.7 | ||||
| CNG2-335-60-20 | 60 | 913 | 45.8 | ||||
| CNG2-335-80-20 | 80 | 1172 | 58.6 | ||||
| CNG2-335-90-20 | 90 | 1302 | 64.9 | ||||
| CNG2-335-100-20 | 100 | 1432 | 70.5 | ||||
| CNG2-335-120-20 | 120 | 1691 | 83.2 | ||||
| CNG2-370-60-20 | 356 | 60 | 793 | 46.2 | 20 | 4.8 | 30CrMo |
| CNG2-370-80-20 | 80 | 1008 | 57.7 | ||||
| CNG2-370-90-20 | 90 | 1116 | 63.8 | ||||
| CNG2-370-100-20 | 100 | 1332 | 76.6 | ||||
| CNG2-370-120-20 | 120 | 1439 | 82.6 | ||||
| CNG2-420-80-20 | 406 | 80 | 808 | 64.6 | 20 | 5.7 | 30CrMo |
| CNG2-420-90-20 | 90 | 891 | 70.9 | ||||
| CNG2-420-100-20 | 100 | 974 | 76.6 | ||||
| CNG2-420-120-20 | 120 | 1140 | 89.1 | ||||
| CNG2-420-150-20 | 150 | 1389 | 107.9 | ||||
| CNG2-420-180-20 | 180 | 1638 | 127.4 | ||||
| CNG2-420-200-20 | 200 | 1804 | 139.2 | ||||
| CNG2-420-210-20 | 210 | 1887 | 145.4 |

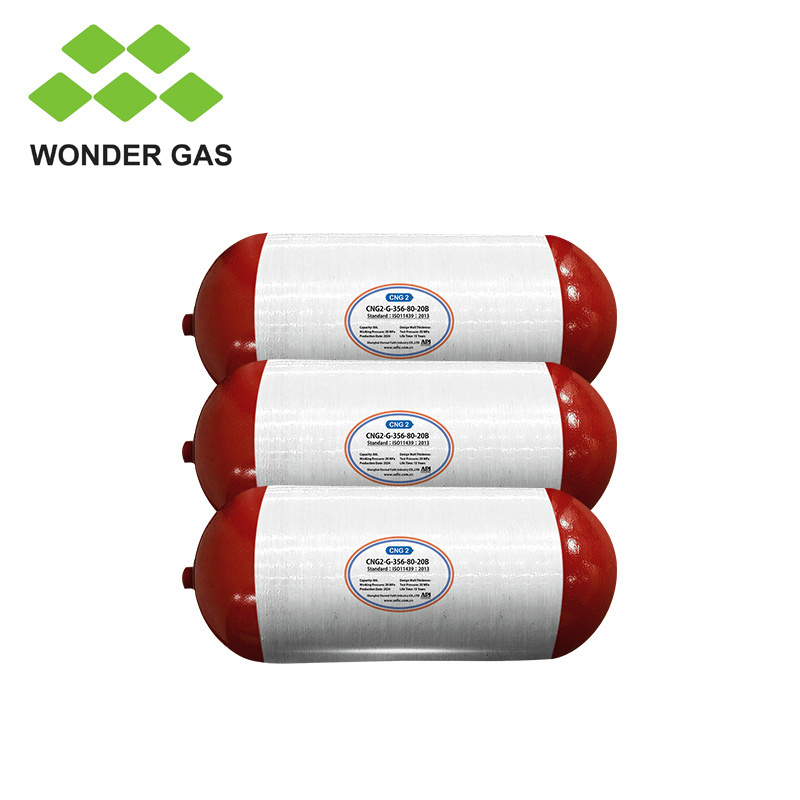

CNG2-G-356-80-20B cng cylinder
The CNG Cylinders we mainly supply include CNG-1,CNG-2 and CNG-4
CNG Gas Cylinder Details Showcase
CNG Gas Cylinder packaging and shipping details
CNG Gas Cylinder production details
CNG Gas Cylinder polishing details
Workshop Finished Products:CNG-2
