Quick Details
-

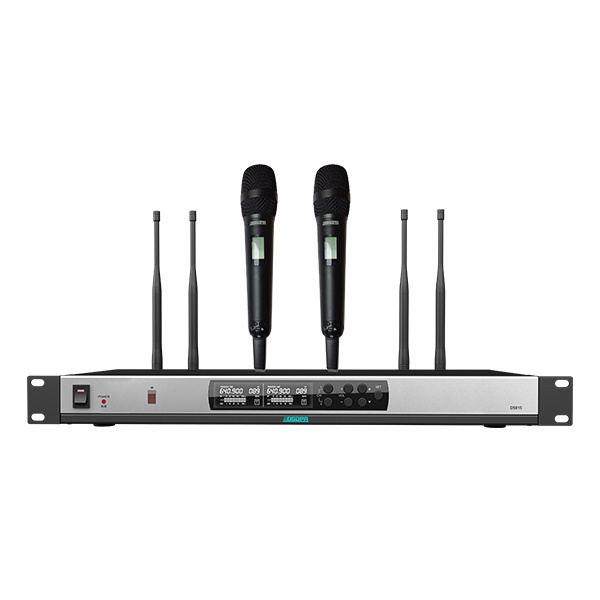

Model Number:
-
D5815/D5821/D5822/D5823/D5824
-
Frequency Range:
-
632-661.25MHz
-
Number of Channels:
-
100
-
Frequency Step:
-
250KHz
-
Dynamic Range:
-
82dB
-
Maximum Frequency Deviation:
-
±45KHz
-
Audio Frequency Response:
-
120Hz-15KHz (±3dB)
-
SNR:
-
>70dB
-
Distortion:
-
≤1%
-
Working Temperature:
-
-10-+40
-
Effective Range:
-
Maximum 300m (in open environment)
Quick Details
-
Type:
-
Conference Microphone System
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
DSPPA
-
Model Number:
-
D5815/D5821/D5822/D5823/D5824
-
Frequency Range:
-
632-661.25MHz
-
Number of Channels:
-
100
-
Frequency Step:
-
250KHz
-
Dynamic Range:
-
82dB
-
Maximum Frequency Deviation:
-
±45KHz
-
Audio Frequency Response:
-
120Hz-15KHz (±3dB)
-
SNR:
-
>70dB
-
Distortion:
-
≤1%
-
Working Temperature:
-
-10-+40
-
Effective Range:
-
Maximum 300m (in open environment)
Details Images
Product Paramenters
|
System Index
|
|
Parameters
|
|
|
Frequency Range
|
|
632-661.25MHz
|
|
|
Number of Channels
|
|
100
|
|
|
Frequency Step
|
|
250KHz
|
|
|
Dynamic Range
|
|
82dB
|
|
|
Maximum Frequency Deviation
|
|
±45KHz
|
|
|
Audio Frequency Response
|
|
120Hz-15KHz (±3dB)
|
|
|
SNR
|
|
>70dB
|
|
|
Distortion
|
|
≤1%
|
|
|
Working Temperature
|
|
-10℃－+40℃
|
|
|
Effective Range
|
|
Maximum 300m (in open environment)
|
|
|
Package Dimensions (L×W×H)
|
|
530×335×330mm
|
|
|
D5821 Gross Weight
|
|
5.2kg
|
|
|
D5822/D5823 Gross Weight
|
|
4.6kg
|
|
|
D5824 Gross Weight
|
|
5.3kg
|
|
|
Receiver
|
Wireless Interface
|
BNC/50Ω
|
|
|
|
Sensitivity
|
-100dBm
|
|
|
|
Display Method
|
Display screen
|
|
|
|
Working Power
|
DC12V ,600mA
|
|
|
|
Package Dimensions (L×W×H)
|
530×335×100mm
|
|
|
|
Machine Dimensions
|
430×176×44mm
|
|
|
|
Gross Weight
|
3.9kg
|
|
|
|
Net Weight
|
2.3kg
|
|
Features
●
Dual-channel PLL design.
●
UHF200 channel PLL digital lock automatic communication function.
●
Adopt IR frequency pairing.
●
With display screen (to display frequency, channel, squelch, level, etc.).
●
With volume control for each channel.
●
AF output (using “XLR” sockets for separate output and mixed output).
