Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Color:
-
black/white/ivory
-
Category:
-
Cat5E Cat6
-
Plating:
-
Gold
-
Material:
-
ABS/PC
-
Application:
-
Networking
-
Wire:
-
24-26 AWG
-
Modular Number:
-
8016
-
Certificate:
-
ROHS
-
Port:
-
1 Port
Quick Details
-
Brand Name:
-
JISJACK
-
Type:
-
Coupler Adaptor, RJ45
-
Model Number:
-
JS-modular-8016
-
Place of Origin:
-
Zhejiang, China
-
Color:
-
black/white/ivory
-
Category:
-
Cat5E Cat6
-
Plating:
-
Gold
-
Material:
-
ABS/PC
-
Application:
-
Networking
-
Wire:
-
24-26 AWG
-
Modular Number:
-
8016
-
Certificate:
-
ROHS
-
Port:
-
1 Port

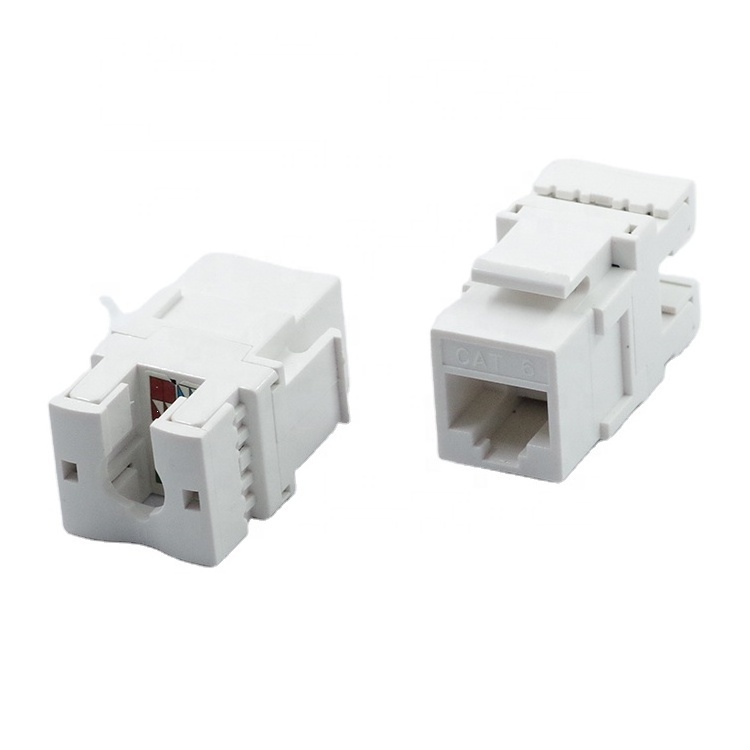

OEM/ODM Competitive Price high quality rj45 connector computer cat5 cat6 keystone jack
JISJACK rj45 connector computer cat5 cat6 keystone jack
Electrical
Voltage Rating : AC 125V
Current Rating : 1.5 AMPS
Insulation Resistance: 500MΩ Min
Withstand Voltage: DC 1000V RMS 50-60Hz Min
Contact Resistange: 20MΩ Max
Mechanical
Insertion Force: 2 pins 3.5N 4 pins 5N 6 pins 7.5N 8 pins 9 N
Retention Strength: 70N between jack and plaug;60N between wire and IDC
Durability: Jack 700 mating cycles mini; IDC contact 100 stripper cycles mini
Wire: AWG 24-26
Material
Housing: PC(UL94V-0);ABS(UL94V-0);PC/ABS(UL94V-0)
IDC Hosing: PC(UL94V-0);PBT(UL94V-0)
Spring Wire: T=0.35mm phosphor bronze alloy selective gold
0.45 dia phosphor bronze gold plating over nickel
IDC Contact : Phosphor bronze;Nickel plating
Shielding: T=0.25mm copper alloy with tin plated gold
Plating : 3u inch,6u inch,10u inch,15u inch,20u inch,30u inch,50u inch
Working Environment
Temperature: -10° c-60 ° c
Humidity: 10-90%
Packing:
-
1.Packing Details: Tray/ reel / tape/ bag inner ; Carton outer
-
2.Port : Ningbo,Shanghai or Shenzhen
-
3.Lead Time: 1--7 days after payment
Delivery:
1. We can shipping all over the world by DHL, UPS, FedEx, TNT , EMS,ARAMEX,SF express,Epacket,China post and Hongkong post. Pls contact us directly and we will use the way you prefer.
2. It will take around 3-15 days to reach your hands .
1. We provide 30-90 days warranty time.
2. About the payment terms,we can accept Bank Transfer, Paypal, Western Union, MoneyGram, Alipay ,Cash and Ecrow terms.
3. Prices quoted are correct at time of this quotation but may be subject to change after one week due to currency fluctuations and change to quantity ordered.
4. If some of the items you received aren't of perfect quality,we would responsibly arrange your refund or replacement. But the items must remain their orginal condition.
5. Stock availability subject to previous sales. All parts quoted are new and unused and are in original factory packaging unless specified.
6. Before placing purchase order re-validate quotation.
7. We depend on our customer satisfaction to succeed. Therefore, your honest feedback is important to us.
Dear Firends,I will go through all questions with you,it is our pleasure to service for you!
