Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Newelement
-
Model Number:
-
Siding Plank
-
Green material:
-
100% non-asbestos
-
Thickness:
-
7.5,9mm
-
Width:
-
192,241mm
-
Length:
-
3050mm
-
Density:
-
≥1.25/cm3
-
Feature:
-
Water-proof, impact resistant,high stength
-
Type:
-
Non-Asbestos Fiber Cement Siding Board
-
Usage:
-
Decorative Building Material, prefabricated houses villa,
-
Pattern:
-
cedar pattern effect, rectangle surface, multually folding
-
Certification:
-
CE ISO BS
Quick Details
-
Project Solution Capability:
-
Others
-
Application:
-
Apartment
-
Design Style:
-
Midcentury
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Newelement
-
Model Number:
-
Siding Plank
-
Green material:
-
100% non-asbestos
-
Thickness:
-
7.5,9mm
-
Width:
-
192,241mm
-
Length:
-
3050mm
-
Density:
-
≥1.25/cm3
-
Feature:
-
Water-proof, impact resistant,high stength
-
Type:
-
Non-Asbestos Fiber Cement Siding Board
-
Usage:
-
Decorative Building Material, prefabricated houses villa,
-
Pattern:
-
cedar pattern effect, rectangle surface, multually folding
-
Certification:
-
CE ISO BS

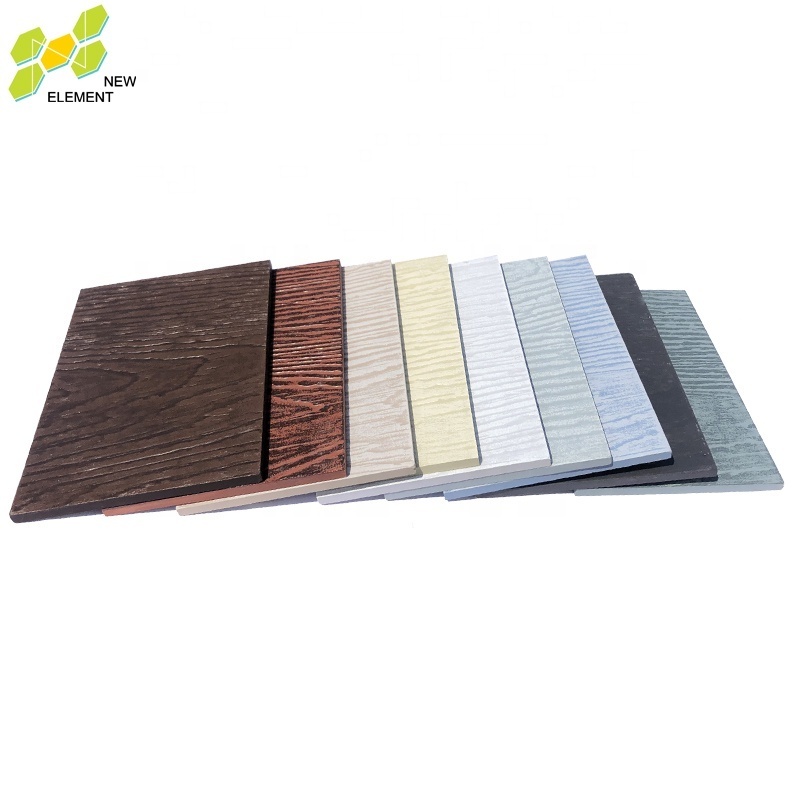

100% Non-Asbestos Light Weight Exterior Wall Siding Panel
More color in surface finishing
More pattern in surface finishing
Siding plank Features
1.It is d urable
2.High
strength, l
ight weight
3.with cedar pattern, various printing
4.Medium density, Good at impact resistant
5. Low moisture absorption and water absorption
6.Low thermal conductivity
7. A nti-chemical corrosive
8. Easy to install & fit
Siding plank can be used for exterior wall cladding and facade of various high -class and high rise civil building which demand in artistic effect. It is especially for exterior wall cladding or facade in luxurious villa or multi-storage buildings .
Private Villa
(Material: Siding plank, coverage: 10000 square meter)
1.Specification
| Thickness | Width | Length |
| 7.5,9 mm | 192,241mm | 3050mm |
| REMARK: We can also supply other specification as the client’s specially requirement | ||
2.Physical properties
The following data are the average tested figures during manufacturing
| Item | Index | Unit | ||
| Density | ≥1.25 | g/cm3 | ||
| Thermal Conductivity | ≤0.30 | W/(m·k) | ||
| Water Absorption | ≤38 | % | ||
| Water Contain | ≤10 | % | ||
| Moisture Movement | ≤0.25 | % | ||
| Freezing | No cracking or delaminating after 25 times of freeze-thaw cycles | |||
| Non-water soaking | No Water Forms after being tested for 24 hours | |||
|
Dry Shrinkage |
≤0.50 |
% | ||
| Bending Strength | ≥14 | Mpa | ||
| Impact resistance | Oven dry | No Continuous Cracking After An Impact | / | |
| REMARK: Please contact our technical department if you need more technical index. | ||||
