Quick Details
-
Weight (KG):
-
0.3 KG
-
Shell Material:
-
Aluminum
-
SIze:
-
33x33x75mm
-
Wavelength:
-
450nm
-
Output power:
-
<1.6w
-
Divergence Angle:
-
<110degrees
-
Operating Voltage(DC):
-
12V
-
Lens:
-
Glass
-
Line Width:
-
<4mm at 10M
-
Circuit Model:
-
CW
-
Service Life:
-
>10,000Hours
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Spare Parts Type:
-
PMMA and Glass lens, Aluminum alloy shell
-
Brand Name:
-
MZLASER
-
Weight (KG):
-
0.3 KG
-
Shell Material:
-
Aluminum
-
SIze:
-
33x33x75mm
-
Wavelength:
-
450nm
-
Output power:
-
<1.6w
-
Divergence Angle:
-
<110degrees
-
Operating Voltage(DC):
-
12V
-
Lens:
-
Glass
-
Line Width:
-
<4mm at 10M
-
Circuit Model:
-
CW
-
Service Life:
-
>10,000Hours
Products Description
|

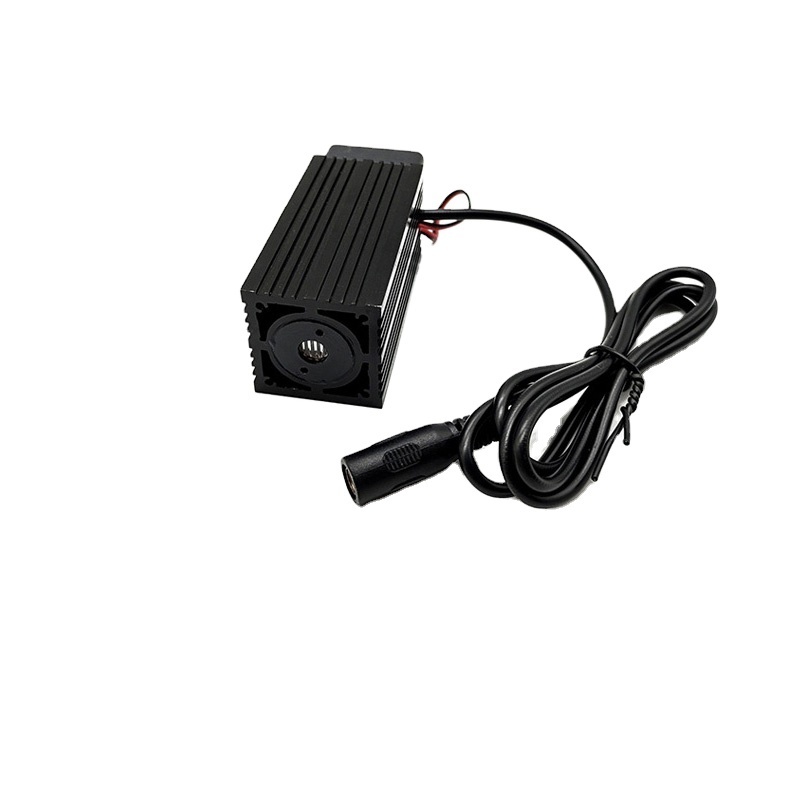

Laser Module
|
|
|
|
|
||||
|
Specifications(T=25℃)
|
|
|
|
|
||||
|
Model
|
|
MZHXB4501600L110-DC
|
|
|
||||
|
Shape Parameter
|
|
|
|
|
||||
|
Shell Material
|
|
Aluminum
|
|
|
||||
|
Overall Dimensions
|
|
33x33x75mm
|
|
|
||||
|
Cord Length
|
|
1M DC
|
|
|
||||
|
Optical Parameters
|
|
|
|
|
||||
|
Wavelength
|
|
450nm
|
|
|
||||
|
Line Width
|
|
﹤4mm at 10m
|
|
|
||||
|
Divergence Angle
|
|
＜110degrees
|
|
|
||||
|
Lens material
|
|
Glass
|
|
|
||||
|
Output Power
|
|
﹤1600mw
|
|
|
||||
|
Laser Safety
|
|
Class ⅢB
|
|
|
||||
|
Environmental parameters
|
|
|
|
|
||||
|
Operating Temperature
|
|
-20℃~ +60℃
|
|
|
||||
|
Storage Temperature
|
|
-40℃~ +80℃
|
|
|
||||
|
Power Stability
|
|
﹤8%
|
|
|
||||
|
Wavelength Drift(nm/ºC）
|
|
0.25nm
|
|
|
||||
|
Electronic parameters
|
|
|
|
|
||||
|
Circuit Model
|
|
CW
|
|
|
||||
|
Operating Voltage
|
|
12V
|
|
|
||||
|
Operating Current
|
|
﹤800MA
|
|
|
||||
|
Drive Type
|
|
ACC
|
|
|
||||
|
Service Life
|
|
﹥10000H
|
|
|
||||
|
|
|
|
|
|
||||
|
|
|
|
|
|
||||
Mechanical Dimension
Pattern
