Quick Details
-
Brand Name:
-
BIOBASE
-
Model Number:
-
BK-EA201
-
Power:
-
/
-
Material:
-
/
-
Product name:
-
Automobile Exhaust Analyzer
-
Stability:
-
Moment drift≤±3%
-
Repeatability:
-
≤±2%
-
Response Time:
-
95% response is not more than 10 seconds
-
Preheating Time:
-
8min (preheating 3min emergency detection)
-
Indicating Error:
-
HC±12*10-6(ppm)vol CO±0.06*10-2(%)vol
-
Measuring Range:
-
HC:0~10000*10-6(ppm)vol CO:0~10*10-2(%)vol
-
Power Supply:
-
AC110/220V±10%, 50/60Hz; Optional DV12V
-
Package Size(W*D*H):
-
610*415*295mm
-
Gross Weight:
-
13kg
Quick Details
-
Type:
-
Car Emissions Analyzer
-
Warranty:
-
1 year
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
BIOBASE
-
Model Number:
-
BK-EA201
-
Power:
-
/
-
Material:
-
/
-
Product name:
-
Automobile Exhaust Analyzer
-
Stability:
-
Moment drift≤±3%
-
Repeatability:
-
≤±2%
-
Response Time:
-
95% response is not more than 10 seconds
-
Preheating Time:
-
8min (preheating 3min emergency detection)
-
Indicating Error:
-
HC±12*10-6(ppm)vol CO±0.06*10-2(%)vol
-
Measuring Range:
-
HC:0~10000*10-6(ppm)vol CO:0~10*10-2(%)vol
-
Power Supply:
-
AC110/220V±10%, 50/60Hz; Optional DV12V
-
Package Size(W*D*H):
-
610*415*295mm
-
Gross Weight:
-
13kg
Product Description

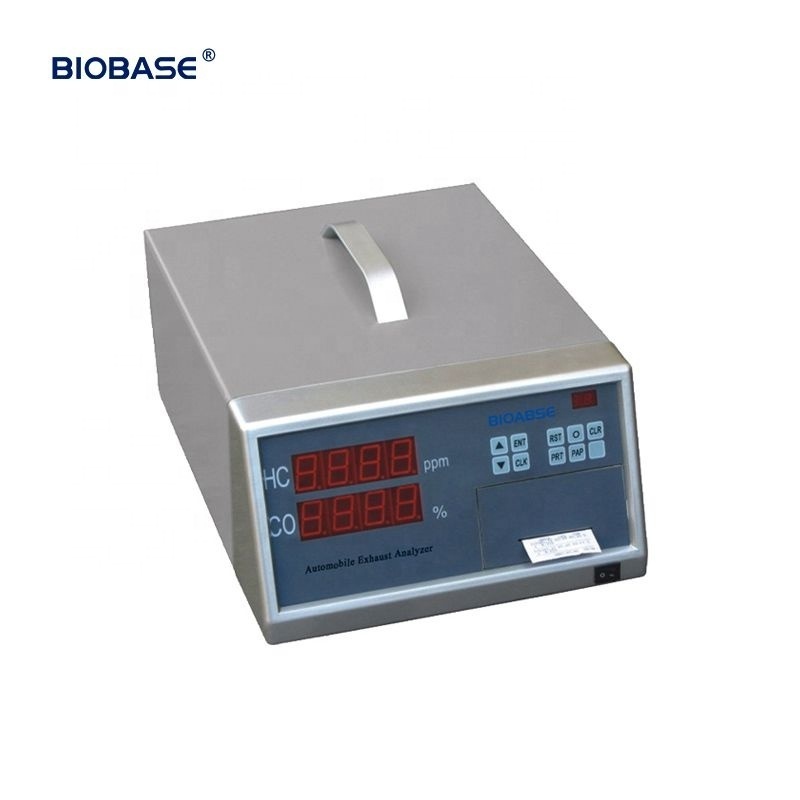

Automobile Exhaust Analyzer
Application
Used to measure vehicle emissions of gas concentration.
Features
* With built-in printer
* With a high-brightness digital display
* Automatic zero, linear automatic data processing, auto-alarm when the gas line blocking
* With a high-brightness digital display
* Automatic zero, linear automatic data processing, auto-alarm when the gas line blocking
Product Parameters
|
Model
|
BK-EA201
|
BK-EA301
|
BK-EA401
|
BK-EA501
|
|||
|
Measuring Range: |
HC 0~10000×10-6(ppm)vol
CO: 0~10×10-2(%)vol |
HC 0~10000×10-6(ppm)vol
CO: 0~10×10-2(%)vol NOx: 0~5000×10-6(ppm)vol |
HC 0~10000×10-6(ppm)vol
CO: 0~10×10-2(%)vol CO2: 0~20×10-2(%)vol O2: 0~25×10-2(%)vol |
HC 0~10000×10-6(ppm)vol
CO: 0~10×10-2(%)vol CO2: 0~20×10-2(%)vol O2: 0~25×10-2(%)vol NOx: 0~5000×10-6(ppm)vol |
|||
|
Indicating Error |
HC±12×10-6(ppm)vol
CO±0.06×10-2(%)vol |
HC±12×10-6(ppm)vol
CO±0.06×10-2(%)vol NOx±25×10-6 (ppm)vol |
HC±12×10-6(ppm)vol
CO±0.06×10-2(%)vol CO2±0.5×10-2(%)vol O2±0.1×10-2(%)vol |
HC±12×10-6(ppm)vol
CO±0.06×10-2(%)vol CO2±0.5×10-2(%)vol O2±0.1×10-2(%)vol NOx±25×10-6 (ppm)vol |
|||
|
Stability
|
Moment drift≤±3%
|
|
|
|
|||
|
Repeatability
|
≤±2%
|
|
|
|
|||
|
Response time
|
95% response is not more than 10 seconds
|
|
|
|
|||
|
Preheating time
|
8min ( preheating 3min emergency detection )
|
|
|
|
|||
|
Power supply
|
AC 110/220V±10%,50/60Hz
|
|
|
|
|||
|
Packing Size
|
680 (L )×385(W)×265(H)mm
|
|
|
|
|||
|
Gross Weight
|
12kg
|
|
|
|
|||
