Quick Details
-
Brand Name:
-
Baoxin
-
Product name:
-
M12*1.5 plastic Screw Protective Vents
-
Size:
-
M12*1.5
-
Color:
-
Black/Light Grey/Red/ Green
-
Material:
-
PP/PC/PA
-
MOQ:
-
10pcs
-
Medium:
-
Gas
-
Item No:
-
BX-POVM12*1.5
-
Pressure:
-
High pressure
-
Standard:
-
RoHS
Quick Details
-
Port Size:
-
M12*1.5
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
BX-POVM12*1.5
-
Brand Name:
-
Baoxin
-
Product name:
-
M12*1.5 plastic Screw Protective Vents
-
Size:
-
M12*1.5
-
Color:
-
Black/Light Grey/Red/ Green
-
Material:
-
PP/PC/PA
-
MOQ:
-
10pcs
-
Medium:
-
Gas
-
Item No:
-
BX-POVM12*1.5
-
Pressure:
-
High pressure
-
Standard:
-
RoHS

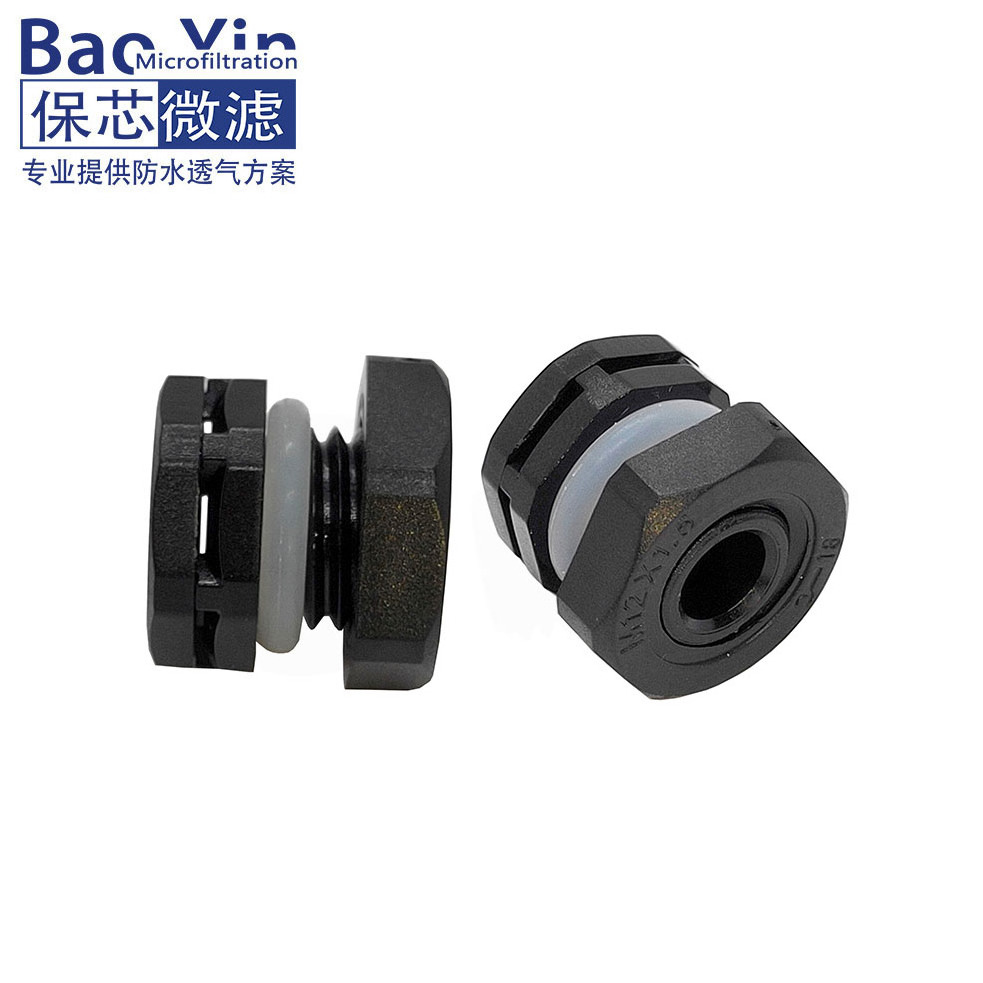

waterproof electrical plug plastic type vent plug
| Model No | BX-POVM12*1.5 | Temperature | -40-150℃ |
| Size | M12*1.5(1.0) | IP rate | IP67 |
| MOQ | 10pcs | Fire proof | UL94V0 |
| Material | PP/PC/PA | Power | Hydraulic |
| Membrane | e-ptfe | Water blocking pressure | -120mbar(>1M) |
| C olor | White/Black/Grey/Red | Application: outdoor cabinet, chassis shell, heavy industries and all kinds of outdoor sealed component. | |
| Airflow | 800ml/min at Kpa=7kpa | ||
Plastic vent plug catalogue
1. H is the thickness of housing.
2. When the housing thickness H ≥3MM, please choose the left schematic diagram to make aperture size, when housing thickness is <3mm, please choose the right schematic diagram.
3. Do not exceed torque test standardl, you can install with the help of wrench.
4. Installed on the smooth vertical surface that water or other pollutants can not be gathered.
5. Install protective vents on the outer side of the housing.
Baoxin protective vent increase reliability by protecting sensors, motors, hybrid, electronic control units and many other components from automotive fluids, salt spray, dirt and various other contaminants to achieve the goal of e qualize pressure, p revent contamination, r educe condensation, e xtend the service life.
1.Reduce the pressure of the casing seal by balancing the pressure.
2.Resist UV, resist salt and spray as well as waterproof and oleophobic.
2. It greatly reduces fog and condensation.
3. Prolong the products lifetime and ensure the product operate trouble-free and maintenance-free in the extreme environments.
