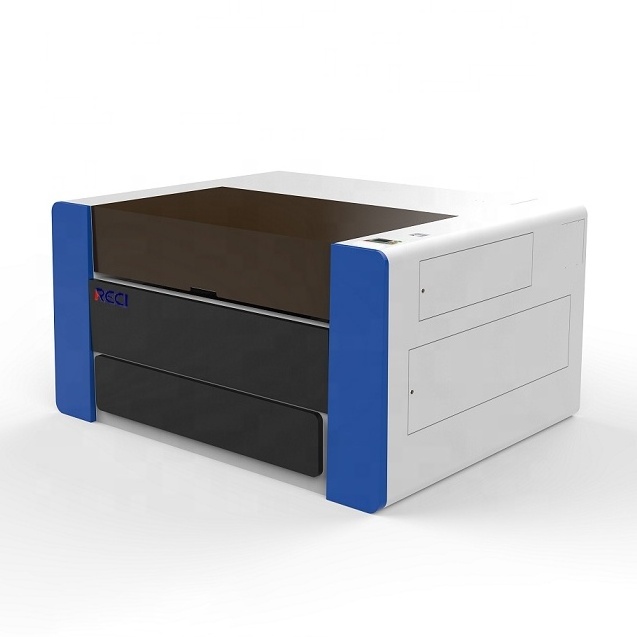

Direct Sales 1390 80W 100W 150W Non-Metal CO2 Laser Cutting And Engraving Machines

Direct Sales 1390 80W 100W 150W Non-Metal CO2 Laser Cutting And Engraving Machines

FOB Reference Price: Get Latest Price

≥1 Sets

US $2800

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Control System Brand:: RuiDa

Cutting Area:: 1300*900mm

Cutting Thickness:: 1-50mm

Control Software:: Ruida

Place of Origin:: Shandong, China

Brand Name:: RECI

Weight (KG):: 450 KG

Products handled:: non metal

After-sales Service Provided:: Engineers available to service machinery overseas

Model:: RC-1390C

Laser power:: 60W/80W/100W/130W/150W/180W/300W

Working area:: 1300*900mm

Cutting materials:: Acrylic Wood Plywood Plastic

Power supply:: AC110V/220V+10%,50HZ/60HZ

Driving system:: High-precision 3-phase Stepper Motor

Working platform:: honeycomb or blade

Quick Details

Laser Type:: CO2

Cutting Speed:: O-60000mm/min

Cooling Mode:: WATER COOLING

Control System Brand:: RuiDa

Cutting Area:: 1300*900mm

Cutting Thickness:: 1-50mm

Control Software:: Ruida

Place of Origin:: Shandong, China

Brand Name:: RECI

Weight (KG):: 450 KG

Products handled:: non metal

After-sales Service Provided:: Engineers available to service machinery overseas

Model:: RC-1390C

Laser power:: 60W/80W/100W/130W/150W/180W/300W

Working area:: 1300*900mm

Cutting materials:: Acrylic Wood Plywood Plastic

Power supply:: AC110V/220V+10%,50HZ/60HZ

Driving system:: High-precision 3-phase Stepper Motor

Working platform:: honeycomb or blade

Product Description

Direct Sales 1390 80W 100W 150W Non-Metal CO2 Laser Cutting And Engraving Machines

RC-C laser cutting machine provides an efficient solution for general-purpose laser processing. It is widely used in high-precision cutting and engraving of acrylic, cardboard, wood, textiles, two-color plates and stone.

Specifications
Model	Working Size	Z Axis Stroke	Dimension	Weight	Remarks
RC3020	300*200mm	/	1100660400mm	30kg	linear guide rail
RC3050	300*500mm	/	1320750470 mm	40kg	linear guide rail
RC6040	600*400mm	optional	14009001300mm	240kg	linear guide rail
RC6090	600*900mm	optional	170012001800mm	300kg	linear guide rail
RC1390	1300*900mm	optional	196014901340mm	400kg	linear guide rail
RC1325	1300*2500mm	optional	375022201200mm	750kg	linear guide rail
RC1610	1600*1000mm	optional	238015301210mm	480kg	linear guide rail
Series			RC Series Cutting & Engraving Machine
Laser Power			60W/80W/100W/130W/150W
Engraving Speed			0-1000mm/s
Min Engraving Size			Chinese:2.0mm2.0mm,English Letter:1.0mm1.0mm
Highest Scanning Precision			4000DPI
Cutting Speed			0-800mm/s
Cutting thickness			0-50mm
Positioning Accuracy			<0.1mm
Control System			Ruida RDC6445G+Rdworks
File Format			DST/DXF/AI/PLT/BMP/CDR,etc
Cooling Way			Water cooling
Drive System			Stepper Motor+Stepper Driver
Machine Accessories			Industrial Chiller,550W Fan,Air Compressor
Machine Structure			Covered and protected
Power supply			110V/220V,50HZ/60HZ
Total power			2KW-3KW
Working Environment			Temperature:0-45,Humidity 5-95%

CUTTING ABILITY

40w

50w

60w

80w

100w

130w

150w

wood

1.5mm

3.5mm

5.5mm

8.5mm

10.5mm

11.5mm

13.5mm

plywood

0.5mm

2.5mm

4.5mm

8.5mm

10.5mm

11.5mm

13.5mm

class

leather

0.5mm

1.5mm

2.5mm

3.5mm

4.5mm

5.5mm

6.5mm

acrylic

1mm

3.5mm

9mm

13mm

17mm

20mm

23mm

pvc

0.5mm

1.5mm

2.5mm

3.5mm

4.5mm

5.5mm

6.5mm

pleixglass

0.5mm

1.5mm

3.5mm

7.5mm

9.5mm

11.5mm

14.5mm

plastic

0.5mm

1.5mm

2.5mm

3.5mm

4.5mm

5.5mm

rubber

1mm

1.5mm

2.5mm

3.5mm

4.5mm

5.5mm

crystac

clothing

1mm

1.5mm

2.5mm

3.5mm

4.5mm

6.5mm

bamboo

0.5mm

1mm

1.5mm

2.5mm

3.5mm

4.5mm

5.5mm

paper

0.5-5mm

Applicable Materials

MATERIALS	Engrave	Cut
Wood	√	√
Acrylic	√	√
Cloth	√	√
Leather	√	√
Mat Board	√	√
Melamine	√	√
Paper	√	√
Mylar	√	√
Pressboard	√	√
Rubber	√	√
Wood Veneer	√	√
Fiberglass	√	√
Plastic	√	√
Cork	√	√
Corian	√	√
Twill	√	√
Painted Metals	√
Tile	√
Glass	√
Coated Metals	√
Ceramics	√
Marble	√

The advantages of our co2 laser engraving cutting machine:

1. High-profile models use servo motors from the world's top suppliers. With a moving step of only 6.25 microns and a resolution of more than 4000 DPI, they can still run at high speeds with cutting accelerations up to 2m / s2 (0.2 G), the scanning acceleration is up to 20m / s2 (2G). 2. Adopts imported high-precision balanced guide rail, which has high strength, durability and reliability, and guarantees long-term stable operation of the motion system. 3. All use high-quality optical lenses imported from the United States, with low absorption rate, durable and reliable, to ensure the consistency of the focused spot in the full processing format to obtain the industry-leading processing quality. 4.Reflector frame has a sturdy structure.

It adopts special fine-threaded screw adjustment screws and high-strength coil springs with adjustable elasticity to provide stable support for the reflection lens. The structure of the three adjustment screws can move the reflecting lens as a whole, and can easily adjust the light path to the ideal state passing through the center of all lenses. 5. Safety and reliability run through the entire process of RC-C design. In accordance with international standards, we use the components of the world's leading suppliers to build the entire equipment and improve product reliability from the source. Sensors are provided for detection and protection at all locations that pose a safety risk, including upper cover opening sensor, laser tube box opening sensor, water cooler flow sensor, etc. When a dangerous situation is detected, the equipment will automatically stop to avoid accidents. In addition, there is an emergency stop switch on the top of the man-machine interface. When a human being judges that a dangerous situation may occur, the button can be photographed, and the device will be immediately powered off to protect personal and property safety.

Product Details

Cutting-edge design and high-quality accessories ensure the RC-C's leading position in the industry, providing you with high-speed, high-precision, high-reliability laser equipment.

Other Optional

Double heads laser cutting machine.

If you need the highest possible efficiency, you can choose to have dual laser heads to double the efficiency.

The operation is very simple and can be done with the tools that came with the machine.

Auto feeding laser cutting machine.

Automatic cutting leather laser cutting machine with smooth and fine cuts to meet the cutting and processing of the entire cloth; Imported linear guides and high-speed stepper motors and drivers to make cutting edges smooth and burr-free;

Quality Control

We are the reliable manufacture and have been in this field since 2009,you will get the best quality and after-sale service if you choose us,cause long time cooperation and business are what we want,we won't leave any customer who bought machine from us.INTEGRITY&QUALITY&RESPONSIBILITY are our company rule),and you will know about our quality,after-sale service after you build the cooperation with us)

It's our honor that you can choose our products！

Our services

---Pre-Sales Service:

Free Pre-Sales Consulting / Free Sample Marking

Reci Laser offer 12 hours quick pre-sales response and free consulting.

Any kind of technical support are available for users.

Free Sample Making is available.

Free Sample Testing is available.

We offer progressing solution design to all the distributor and users.

---After-sales Services :

1. 2 year guaranteefor fiber laser cutting machine .

2. Full technical support\ by e-mail, call and video

3. Lifelong maintenance and spare partssupply.

4. Free design of fixtures as customers required.

5. Free training installation and operation for the staffs.

Packing&Shipping

1. Anti-collision package edge: All parts of the machine are covered with some soft materials, mainly the use of pearl wool. 2. Fumigation wooden box: Our wooden box is fumigated, do not need to check the wood, saving the transport time. 3. Whole film packaging machine: Avoid all damage that may occur during delivery. Then we will cover the plastic package tightly to ensure that the soft material is covered intact, also avoiding water and rust. The outermost is a wooden box with a fixed template. 4.Wooden box at the bottom of a solid iron socket for easy handling.

Company Introduction

Jinan Reci CNC Machine Co.,Ltd is a professional direct manufacturer of fiber laser cutting machine, co2 laser engraving &cutting machine , fiber laser marking machine , co2 laser martking machine , Laser cleaning machine , 3d robot cutting machine , etc advertising equipment .not vendor. So good price, complete after sale service, technical support and full set of available accessories is our advantage.

We have many other models.If you have special requirement, such as need double laser heads, need water chiller or rotary attachment, pls contact with us for quotation.

We are looking for distributor from all over the world. If you are interested in, please contact with us.

FAQ

Q1:What material can co2 laser machine apply to ? A:It can be used for engraving and cutting all non-metal materials like acrylic cutting, acrylic engraving machine, wood cutting,wood engraving, fabric /leather /cloth /textile engraving and cutting . as it's non-contact way so it not bring any harm tomaterials surface which widely used in the fields of AD, garment industry ,decoration industry ,etc . Q2 :What's the working size do you supply ? A:small size laser engraving machine with 300×210mm,600×400mm, 900×600mm, 1300×900mm, 1600×1000mm working areas. Another is flat bed laser size type fabric cutting machine with 1300×1800mm, 1300×2500mm, 1600×2600mm ,1600×2600mm working areas Q3:What's the laser power for co2 laser engraving machine ? A:About power , we supply power from 60w-150w 40W-60w :Mainly for engraving 80W-100W:Mainly for engraving and cutting 120w-180w:Mainly for cutting Q4:What's the laser tube brand do you use and guarantee ? A:For laser tube above 80w we adopt Top China Brand Reci or EFR brand ((lifetime :10000 hours ) For small power like 50w / 60w we adopt Yongli brand (lifetime :3000-4000 hours ). Q5:What's the consumables for co2 laser machine ? any parts need to change after some usage ? A:The only fitting parts and consumable for co2 laser machine is laser tube and mirrors , To save shipping fare and urgent usage, we recommend you order some with machine together by sea shipment Q7:If I don't know how to use the machine, can you teach me? A:) We offer worldwide installation, training and aftersales services(optional). Our professional and experienced technicians will come to your local warehouse to install, train or check machine or solve the aftersales problem. B:1) There is a DVD disc including machine user manual and software user manual c/w machine. 2) Online (skype & phone) 3) Remote desktop software (Teamviewer) 4) Demo Video

Pls feel free to contact us if you have any questions, our sales manager are 24/7 on-line for receiving your question or requesting, Providing solution within 12 hours!

Reci Laser, Great Laser!
