Quick Details
-

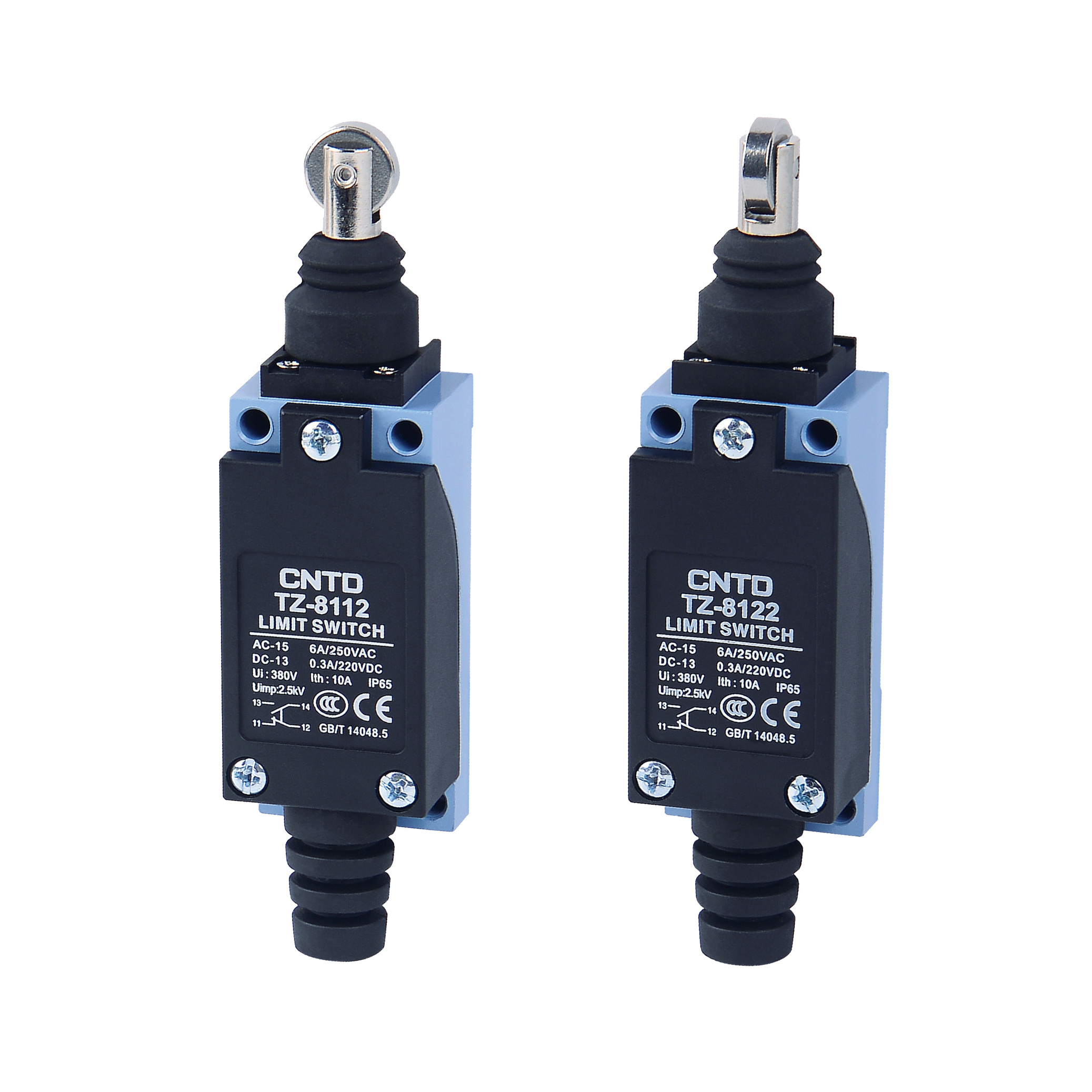

Model Number:
-
TZ-8112, TZ-8122
-
Protection Level:
-
IP65
-
Operating Temperature:
-
-20~+70℃(With no icing)
-
Max. Current:
-
10A
-
Name:
-
limit switch
-
Operating Speed:
-
5mm-0.5m/s
-
Operating Frequency:
-
Electical:30 operations/min
-
Contact Resistance:
-
25mΩ max.(initial value)
-
Insulation Resistance:
-
100mΩ min.(below 500VDC)
-
Vibration:
-
10~55Hz,1.5mm double amplitude
-
Humidity:
-
<95%RH
-
Electrical life:
-
500,000 operations above
-
Inrush Current:
-
N.C:below 24A, N.O:below 12A
-
Certification:
-
TUV, ISO9001, CCC, CE
Quick Details
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CNTD
-
Model Number:
-
TZ-8112, TZ-8122
-
Protection Level:
-
IP65
-
Operating Temperature:
-
-20~+70℃(With no icing)
-
Max. Current:
-
10A
-
Name:
-
limit switch
-
Operating Speed:
-
5mm-0.5m/s
-
Operating Frequency:
-
Electical:30 operations/min
-
Contact Resistance:
-
25mΩ max.(initial value)
-
Insulation Resistance:
-
100mΩ min.(below 500VDC)
-
Vibration:
-
10~55Hz,1.5mm double amplitude
-
Humidity:
-
<95%RH
-
Electrical life:
-
500,000 operations above
-
Inrush Current:
-
N.C:below 24A, N.O:below 12A
-
Certification:
-
TUV, ISO9001, CCC, CE
Features
:
Double circuit type of limit switch
High mechanical strength, consists of intensive plastic and aluminum cast
Small size, water-proof and oil-proof construction
Built-in contact box has double-spring and long mechanical life
Smooth operation with larger over travel distance
Conduit design for convenient cabling
Various actuators for convenient applications
Ratings:
|
Rated Voltage
|
Noninductive Load (A)
|
|
|
|
Inductive Load (A)
|
|
|
|
|||||||
|
|
resistance Load
|
|
Lamp Load
|
|
Inductive Load (A)
|
|
Motor Load
|
|
|||||||
|
|
NC
|
NO
|
NC
|
NO
|
NC
|
NO
|
NC
|
NO
|
|||||||
|
125VAC
|
5
|
5
|
1.5
|
0.7
|
3
|
3
|
2
|
1
|
|||||||
|
250VAC
|
5
|
5
|
1
|
0.5
|
3
|
3
|
1.5
|
0.8
|
|||||||
|
8VDC
|
5
|
5
|
3
|
3
|
5
|
4
|
3
|
3
|
|||||||
|
14VDC
|
5
|
5
|
3
|
3
|
4
|
4
|
3
|
3
|
|||||||
|
30VDC
|
5
|
5
|
3
|
3
|
4
|
4
|
3
|
3
|
|||||||
|
125VDC
|
0.4
|
0.4
|
|
|
|
|
|
|
|||||||
|
250VDC
|
0.2
|
0.2
|
|
|
|
|
|
|
|||||||
|
Inrush Current
|
N.C:below 24A,N.O:below 12A
|
|
|
|
|
|
|
|
|||||||
NOTES:
1. Inductive load has a power factor of 0.4 min. (AC) and a time constant of 7 msec. max. (DC).
2. Lamp load has an inrush current of 10 times the steady-state current, while motor load has an inrush current of 6 times the steady-state current.
3. Product with spring, its usable range of operating part is within one third of whole spring length from the front end of spring.
