Quick Details
-
Shape:
-
Equal
-
Head Code:
-
round
-
Place of Origin:
-
China
-
Brand Name:
-
AIRWORK
-
Model Number:
-
TKN-PH
-
Product name:
-
brass fitting
-
Body Material:
-
Brass/Stainless Steel SS304
-
Port size:
-
4,6,8,10,12,14,16
-
Thread size:
-
m5, 1/8, 1/4, 3/8, 1/2, 3/4
-
Thread type:
-
BSP, PT, NPT
-
Working medium:
-
Air Water Oil Gas
-
Certificate:
-
CE/ISO9001
-
Working Pressure:
-
2.5MPa
-
Working Temp:
-
-30℃~100℃
-
Color:
-
sliver
Quick Details
-
Type:
-
ELBOW
-
Material:
-
Copper
-
Technics:
-
Forged
-
Shape:
-
Equal
-
Head Code:
-
round
-
Place of Origin:
-
China
-
Brand Name:
-
AIRWORK
-
Model Number:
-
TKN-PH
-
Product name:
-
brass fitting
-
Body Material:
-
Brass/Stainless Steel SS304
-
Port size:
-
4,6,8,10,12,14,16
-
Thread size:
-
m5, 1/8, 1/4, 3/8, 1/2, 3/4
-
Thread type:
-
BSP, PT, NPT
-
Working medium:
-
Air Water Oil Gas
-
Certificate:
-
CE/ISO9001
-
Working Pressure:
-
2.5MPa
-
Working Temp:
-
-30℃~100℃
-
Color:
-
sliver

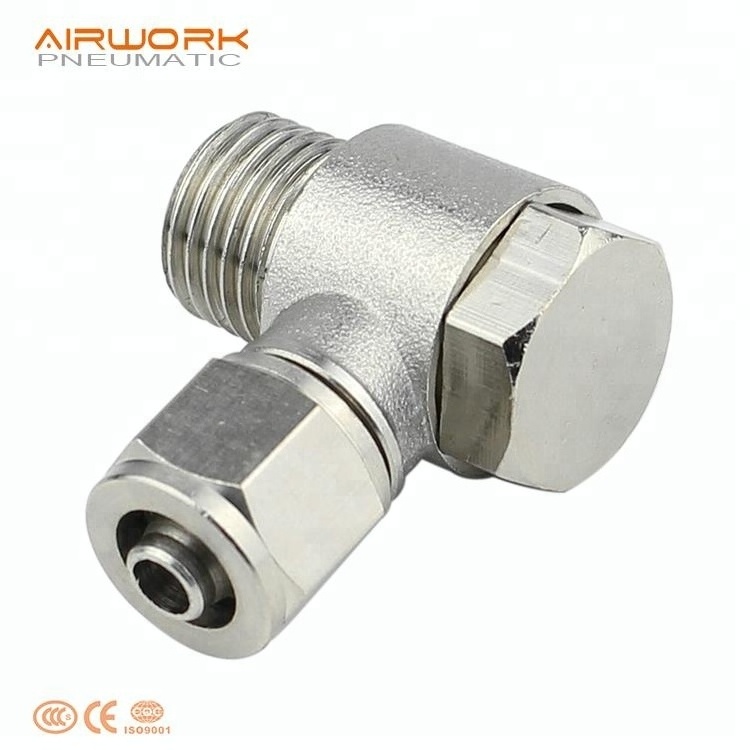

PH 3/4 thread brass air oil and gas pipe hose rotating swivel connector fitting
Product Description
|
Tube Diameter |
Φ4 Φ6 Φ8 Φ10 Φ12 |
| Working Medium |
Air |
| Working Pressure | 0.095-2.5 MPa |
| Proof Pressure | 1.6 Mpa |
| Proof Vacuum Pressure | -100Kpa(10Torr) |
| Working Temp | -30 ℃~ 100 ℃ |
| Material | Brass with nickle plated |
| Model | L | L1 | S1 | S2 | T | H | DXd |
| 4-M5 |
17 |
10 |
8 | 8 | M5 | 3.6 | 4X2.5 |
| 4-01 |
20 |
15 |
8 | 12 | 1/8 | 7 | 4 X2.5 |
| 4-02 |
22 |
18 | 8 | 15 | 1/4 | 9 | 4 X2.5 |
| 6-M5 |
21 |
11 | 10 | 8 | M5 | 3.6 | 6X4 |
| 6-01 |
23 |
15 | 10 | 12 | 1/8 | 7 | 6 X4 |
| 6-02 | 24 | 18 | 10 | 15 | 1/4 | 9 | 6X4 |
| 6-03 | 25 | 20 | 10 | 19 | 3/8 | 9.5 | 6X4 |
| 6-04 | 28 | 22.5 | 10 | 22 | 1/2 | 11.5 | 6X4 |
| 8-01 | 25 | 15 | 14 | 12 | 1/8 | 7 | 8X5 |
| 8-02 | 26 | 18 | 14 | 15 | 1/4 | 9 | 8X5 |
| 8-03 | 28 | 20 | 14 | 19 | 3/8 | 9.5 | 8X5 |
| 8-04 | 30.5 | 22.5 | 14 | 22 | 1/2 | 11.5 | 8X5 |
| 10-01 | 27 | 16 | 15 | 12 | 1/8 | 7 | 10X6.5 |
| 10-02 | 28 | 19 | 15 | 15 | 1/4 | 9 | 10X6.5 |
| 10-03 | 30 | 20 | 15 | 19 | 3/8 | 9.5 | 10X6.5 |
| 10-04 | 30 | 22.5 | 15 | 22 | 1/2 | 11.5 | 10 X6.5 |
| 12-01 | 28 | 17 | 17 | 12 | 1/8 | 7 | 12X8 |
|
12-02 |
29 | 20 | 17 | 15 | 1/4 | 9 | 12 X8 |
|
12-03 |
31 | 21 | 17 | 19 | 3/8 | 9.5 | 12 X8 |
|
12-04 |
32 | 22.5 | 17 | 22 | 1/2 | 11.5 | 12 X8 |
| 14-04 | 39 | 25.5 | 19 | 22 | 1/2 | 11.5 | 14X10 |
| 16-04 | 39 | 25.5 | 21 | 22 | 1/2 | 11.5 | 16X12 |
