Quick Details
-
Model Number:
-
SD
-
Name:
-
Rubber vibration isolator
-
Material:
-
Rubber+Aluminum
-
Color:
-
Customer's Request
-
Application:
-
Industrial
-
Size:
-
Drawing Dimensions
-
Usage:
-
Industrial Shock Absorber
-
Feature:
-
Eco-friendly
-
Certification:
-
ISO9001
-
Function:
-
Vibration Attenuation
Quick Details
-
Processing Service:
-
Moulding
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Jiufu
-
Model Number:
-
SD
-
Name:
-
Rubber vibration isolator
-
Material:
-
Rubber+Aluminum
-
Color:
-
Customer's Request
-
Application:
-
Industrial
-
Size:
-
Drawing Dimensions
-
Usage:
-
Industrial Shock Absorber
-
Feature:
-
Eco-friendly
-
Certification:
-
ISO9001
-
Function:
-
Vibration Attenuation

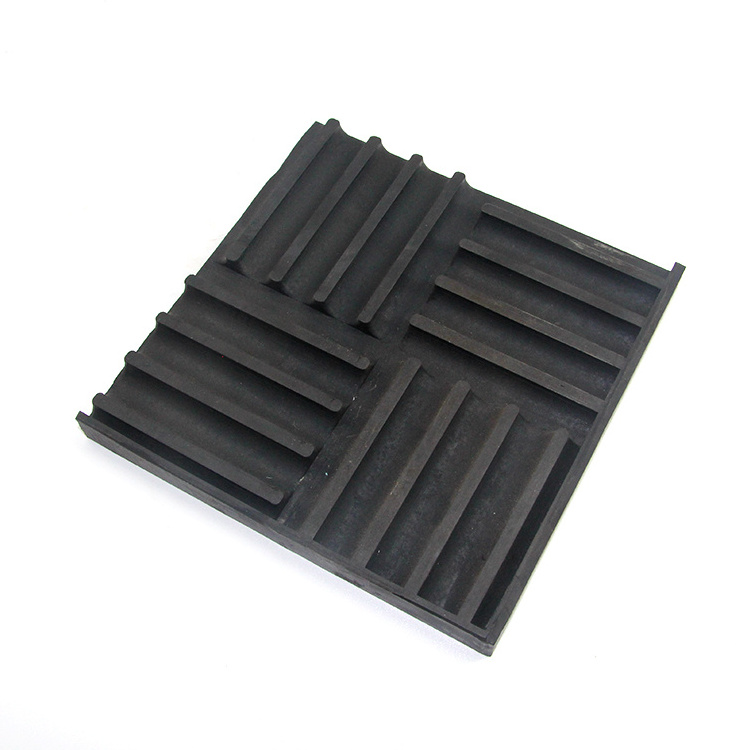

Description of rubber vibration isolation pads
R
ubber vibration isolation pads is of excellent shock absorbing performance. The body is made of high quality rubber, Rubber Shock Absorber Pad can be applied to all kinds of mechanical equipment, with good damping performance.Rubber Shock Absorber Pad is of low natural frequency, simple structure and convenient use.
|
Rubber hardness of shock isolation pad
|
Number of shock isolation cushions
|
Insertion loss (dB) acceleration
|
|
Vertical load
|
|
|
|
|
31.5-4000Hz
|
Linear
|
|
|
|
40°
|
1
|
11-30
|
31
|
0.05-0.12
（0.5-1.2）
|
|
|
|
2
|
11-28
|
26
|
|
|
|
|
3
|
7-38
|
26
|
|
|
|
|
4
|
11-34
|
31
|
|
|
|
60°
|
1
|
10-32
|
31
|
0.2-0.3
（2.0-3.2）
|
|
|
|
2
|
6-32
|
31
|
|
|
|
|
3
|
10-33
|
26
|
|
|
|
|
4
|
8-33
|
31
|
|
|
|
80°
|
1
|
5-22
|
8
|
0.1-0.8
（4.0-8.0）
|
|
|
|
2
|
9-22
|
22
|
|
|
|
|
3
|
12-29
|
20
|
|
|
|
|
4
|
7-29
|
23
|
|
|
|
Model
|
Dimension
|
|
|
Elasticity
(Kg/mm)
|
Load range
(Kg)
|
||
|
|
L
|
W
|
H
|
|
|
||
|
SD340
|
340
|
170
|
30
|
268
|
1000-2000
|
||
|
SD170
|
170
|
170
|
30
|
134
|
500-1000
|
||
Features：
1，The body material is high-strength,aluminum alloy
2，Lightweight and firm appearance, easy to install: suitable for all kinds of mechanical internal shock absorbers
3，All springs are treated with heat treatment,ED rusting, baking varnish or plastic spraying procedures
4，Load deflection of 25mm can effectively eliminate mechanical structure vibration
Rubber raw material
Oil-resistant and shock-proof rubber layer is used inside, which has strong impact resistance and good shock absorption effec
t
High elasticity
Widely used to install fans, electric motors, air conditioners, machine tools, water pumps and other vibrating mechanicalequipment and other vibrating equipment, etc.
Good folding resistance
It is arbitrarily bent during use, and it is not easy to break without creases. Longer service life
Well-made
The surface is smooth and flat, with insulation, waterproof, anti-vibration, sealing and other performance
Application
Rubber vibration isolation pads is widely used in pump, fan, compressor, cold water unit, punch, forging bed,textile machinery and other mechanical equipment of the active vibration isolation and all kinds of precision instruments and meters vibration protection.
Shanghai Songjiang Jiufu Shock Absorber Co., Ltd. products are mainly used for the basic vibration isolation of various types of horizontal pumps, vertical pumps, pipeline pumps, fans, chillers, heat pump units, generator sets, diesel units, engine test benches and other vibration machinery, as well as fan coils, fresh air units, and transformers. Air volume air conditioning boxes, axial fans,mixed flow fans, air ducts, water pipes and other hoisting vibration isolation; widely used in high-rise residential buildings, hotel buildings, industrial and mining buildings, plumbing, heating and ventilation pipes, water supply and drainage,petrochemical and industrial pipelines, metallurgy, industrial automation, Shipping, aviation and other fields.
Contact Us
1. 24 hours all day service, tel/whatsapp/wechat: 86 18203719911
2. Can be customized according to customer needs
3. check again before we send the goods
4. send the goods on time
5. The more you need, the cheaper the unit price is
FAQ
Q:Are you trading company or manufacturer?
A:We are manufacturer of rubber expansion joint, bellow expansion joint,,flexible metal hose, shock absorber , flange adaptor and flange with more than 20-years experience.
Q:Do you have products catalog?
A:Yes, we have. Please tell me your email or instant messager, we will send our catalog.
Q:Can you provide drawings and technical data?
A:Yes, our professional technical department will design and provide drawings and technical data.
Q:Do you provide samples? Is it free or charged?
A:Yes, we can offer sample free but shipping charges covered by customer.
Q:Can the products be manufactuered by customer's requirement?
A:Yes, the specifications stated above are the standard ones, we can design and manufacture as requirement.
