Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Mounting hole diameter:
-
12mm
-
Head Shape:
-
Domed Head
-
Switch combination:
-
1NO
-
Operation type:
-
Momentary/Latching
-
Terminal type:
-
4 Pin terminals
-
Material:
-
Blacken
-
Illuminated type:
-
Ring Led
-
Led color:
-
Blue/Red/Orange/White/Green/Yellow Led
-
Led voltage:
-
0-250V
-
Connector Customized:
-
/
Quick Details
-
Protection Level:
-
IP65
-
Max. Current:
-
3A
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Zhejiang, China
-
Mounting hole diameter:
-
12mm
-
Head Shape:
-
Domed Head
-
Switch combination:
-
1NO
-
Operation type:
-
Momentary/Latching
-
Terminal type:
-
4 Pin terminals
-
Material:
-
Blacken
-
Illuminated type:
-
Ring Led
-
Led color:
-
Blue/Red/Orange/White/Green/Yellow Led
-
Led voltage:
-
0-250V
-
Connector Customized:
-
/

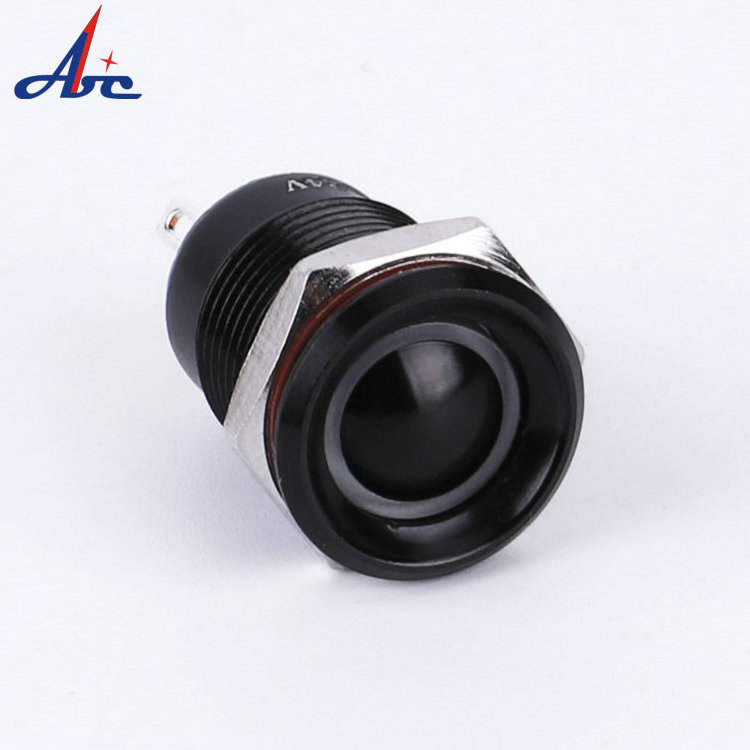

4pin 12mm momentary blacking housing illuminated mini push button switch
Product Description
| Product Name | Push Button Switch |
| Model | IB12B-Q10F-E/A |
| Mounting Hole | 12mm |
| Operation Type | Momentary/Latching |
| Switch Combination | 1NO |
| Head Type | Domed head |
| Terminal type | 4 Pin Terminals |
| Illuminanted or not | With |
| Led Voltage | 0-250V |
| Led Color |
Blue/Red/Orange/White/Green/Yellow Led |
| Illuminated Type | Ring Led |
| Enclosure Material | Blacken |
| Delivery Days | 1-3 days |
| Contact Resistance | 50 mΩ max |
| Insulation Resistance | 1000MΩ Min |
| Dielectric Intensity | 2000VAC |
| Operating Temperature | -20°C ~+55°C |
| Customized symbol,colored housing or Connector | Acceptable and with fast shipping |
| Accessories | Nut, Rubber Gasket,Resistor |
| Order Confirm | / |
