Quick Details
-
Power (kW):
-
5.5kw
-
Weight (KG):
-
2000 KG
-
Product name:
-
iron nail making machine
-
Wire diameter:
-
1.8-5.0mm
-
Voltage:
-
380V 50Hz 3Phase/Customized
-
Raw material:
-
Q195/Q235
-
Auxiliary equipment:
-
Cutter Grinder
-
Color:
-
as your request
-
type:
-
Automatic
-
keyword:
-
automatic high speed nail making machine
-
Weight:
-
2000kg
-
Application:
-
Nail Making machine
Quick Details
-
Production Capacity:
-
150-350pcs/min
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
GST
-
Power (kW):
-
5.5kw
-
Weight (KG):
-
2000 KG
-
Product name:
-
iron nail making machine
-
Wire diameter:
-
1.8-5.0mm
-
Voltage:
-
380V 50Hz 3Phase/Customized
-
Raw material:
-
Q195/Q235
-
Auxiliary equipment:
-
Cutter Grinder
-
Color:
-
as your request
-
type:
-
Automatic
-
keyword:
-
automatic high speed nail making machine
-
Weight:
-
2000kg
-
Application:
-
Nail Making machine
Product Description

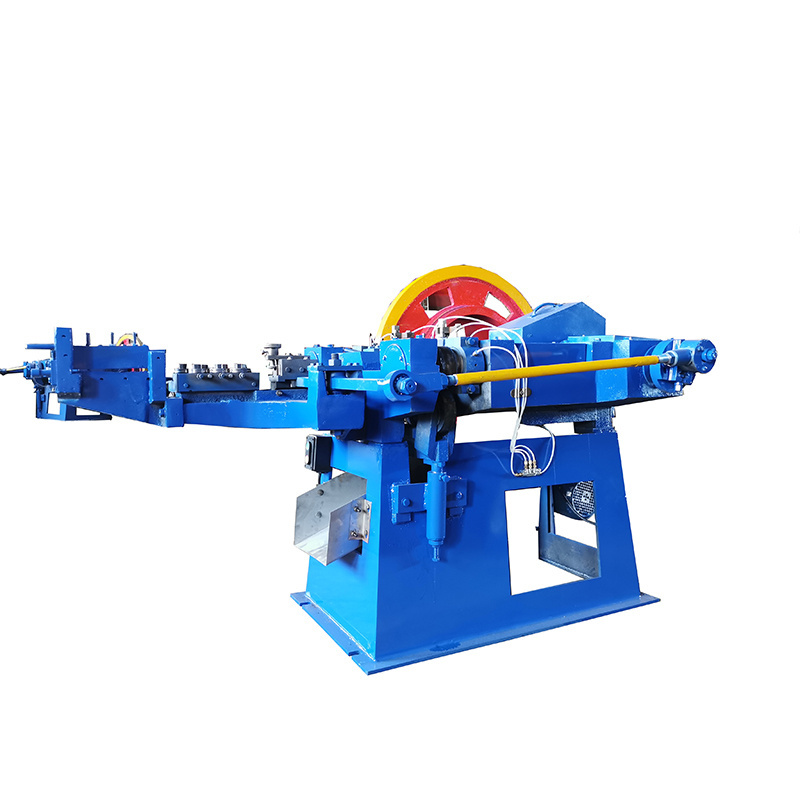

Z94 series automatic screw nail making machine concrete nail making machine
4c nail making machine
adopts plunger type structure so as to ensure the features such as high speed, low noise and less impact. The machine can make the high quality of oil rivet nail and other shaped nails used for high speed welding nailer and nail gun.
Features for construction nail making machine :
Using plunger type structure to ensure the high working speed, low noise, and less chance of impact. advanced design, compact conformation, and good type. It is easy and safe to operate.
Features for construction nail making machine :
Using plunger type structure to ensure the high working speed, low noise, and less chance of impact. advanced design, compact conformation, and good type. It is easy and safe to operate.
Specification
Specifications of
nail making machine germany
:
There are 5 type of nail making machine. Different type machine produce different nail length range. What nail length you want to produce? Here we will recommend the suitable types machines.
|
Machine type
|
1C
|
2C
|
3C
|
4C
|
5C
|
|
Dia (max)
|
1.4mm
|
2.5mm
|
3.2mm
|
5mm
|
5.5mm
|
|
Length (max)
|
25mm
|
50mm
|
80mm
|
128mm
|
180mm
|
|
Capacity
(pcs/h)
|
480
|
320
|
280
|
200
|
180
|
|
Power (kw)
|
1.5
|
2.2
|
3.0
|
5.5
|
7.5
|
|
Weight (kg)
|
820
|
1100
|
1350
|
1900
|
2200
|
|
Dimension
(mm)
|
1350*950*1000
|
1600*1150*1000
|
1900*1200*1250
|
2200*1400*1300
|
2700*1550*1500
|
More details of nail making machine manual:
The whole production process is below:
Scrap or new steel wire→ wire drawing machine→nail making machine→ nail polishing machine → finishing nails
Scrap or new steel wire→ wire drawing machine→nail making machine→ nail polishing machine → finishing nails
machine nails making fully automatic moulds
Packing & Delivery
wooden box or as your requirement.
