Quick Details
-
Model Number:
-
16/6/8 18/7/8 21/8/9 23/9/10
-
Tire Size:
-
16X6-8 18X7-8 21X8-9 23X9-10
-
Size:
-
16/6/8 18/7/8 21/8/9 23/9/10
-
Pattern:
-
Forklift Solid Tyre
-
Standard Rim:
-
4.33R
-
Section Width:
-
154MM
-
Overall Diameter:
-
457MM
-
Static Radius Under Load:
-
214MM
-
Load Capacity:
-
2350/1880KGS
-
Weight:
-
25KGS
-
Size 1:
-
16X6-8 18X7-8 21X8-9 23X9-10
-
Size 2:
-
16*6-8 18*7-8 21*8-9 23*9-10
Quick Details
-
OE NO.:
-
40119200
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LEINA
-
Model Number:
-
16/6/8 18/7/8 21/8/9 23/9/10
-
Tire Size:
-
16X6-8 18X7-8 21X8-9 23X9-10
-
Size:
-
16/6/8 18/7/8 21/8/9 23/9/10
-
Pattern:
-
Forklift Solid Tyre
-
Standard Rim:
-
4.33R
-
Section Width:
-
154MM
-
Overall Diameter:
-
457MM
-
Static Radius Under Load:
-
214MM
-
Load Capacity:
-
2350/1880KGS
-
Weight:
-
25KGS
-
Size 1:
-
16X6-8 18X7-8 21X8-9 23X9-10
-
Size 2:
-
16*6-8 18*7-8 21*8-9 23*9-10

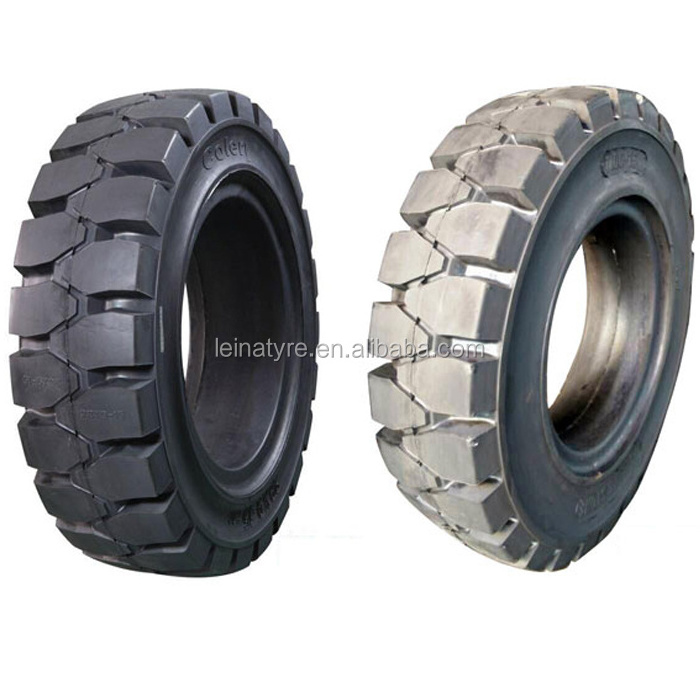

Solid Rubber Tyre 16/6/8 18/7/8 21/8/9 23/9/10 bias industrial forklift tire
Solid Rubber Tyre 16/6/8 18/7/8 21/8/9 23/9/10 bias industrial forklift tire:
1. This bias forklift solid tyre character:
1). Deep tread pattern, high load, large ground contact acreage, strong traction, excellent wear-resistance
2). Litter rolling resistance, low heat generating, little energy conservation, strong rockfall resistance; High quality raw material support and unique formula design.
3). The tyre enjoys outstanding performance at all aspects. It's the best choice for balanced forklift and other industrial vehicles
| SIZE |
STANDARD
RIM |
OVERALL
DIAMETER(MM) |
SECTION
WIDTH(MM) |
WEIGHT (KG) |
LOAD CAPACITY(KG) | |
| DRIVE | STEER | |||||
| 15X4 1/2-8 | 3.00D/3.25I | 380 | 106 | 10.0 | 905 | 725 |
| 16X6-8 | 4.33R | 418 | 156 | 16.8 | 1500 | 1200 |
| 18X7-8 | 4.33R | 457 | 154 | 20.7 | 2350 | 1880 |
| 21X8-9 | 6.00E | 535 | 189 | 35.0 | 2810 | 2250 |
| 23X9-10 | 6.50F | 595 | 211 | 52.0 | 3420 | 2735 |
| 23X10-12 | 8.00G | 597 | 230 | 52.0 | 4005 | 3205 |
| 27X10-12 | 8.00G | 683 | 236 | 73.0 | 4465 | 3570 |
| 200/50-10 | 6.50F | 458 | 198 | 25.3 | 2370 | 1900 |
|
28X9-15 (8.15-15) |
7.00 | 706 | 230 | 69.0 | 4090 | 2370 |
| 250-15 | 7.00/7.50 | 735 | 235 | 68.0 | 4365 | 3490 |
| 300-15 | 8.00 | 838 | 256 | 106.0 | 5990 | 4790 |
| 355/65-15 | 9.75 | 823 | 301 | 134.0 | 7120 | 5700 |
| 8.25-16 | 6.50H | 855 | 235 | 96.0 | 4940 | 3950 |
| 9.00/10.00-16 | 6.50 | 884 | 218 | 115.0 | 5135 | 4110 |
| 11.00/12.00-16 | 6.50 | 884 | 218 | 115.0 | 5135 | 4110 |
| 8.25-20 | 6.50T/7.00 | 1038 | 238 | 120.0 | 6450 | 5160 |
| 9.00-20 | 6.50T/7.00 | 1038 | 238 | 132.0 | 6450 | 5160 |
| 10.00-20 | 7.50/8.00 | 1073 | 252 | 195.0 | 7240 | 5795 |
| 11.00-20 | 7.50/8.00 | 1058 | 277 | 208.0 | 7560 | 6050 |
| 12.00-20 | 8.00/8.50 | 1146 | 290 | 240.0 | 8445 | 6755 |
| 12.00-24 | 8.50 | 1247 | 309 | 246.0 | 9575 | 7655 |
| 14.00-20 | 10.00 | 1260 | 332 | 246.0 | 10800 | 8640 |
| 14.00-24 | 10.00 | 1368 | 335 | 346.0 | 11865 | 10680 |
| 33*8-20 | 8.00 | 815 | 183 | 72.0 | 4570 | 4280 |
| 36*12.5-20 | 8.00 | 900 | 295 | 143.0 | 6530 | 6070 |
| 41X14-20 | 11.50 | 1040 | 352 | 256.0 | / | / |
2. More forklift solid tyre sizes for your choice:
| 3.50-5 | 3.20-8 | 4.00-8 | 4.50-12 | 5.00-8 | 6.00-15 |
| 6.00-9 | 6.50-10 | 6.50-16 | 7.00-9 | 7.00-12 | 7.50-15 |
| 7.00-16 | 7.00-15 | 7.50-16 | 8.25-12 | 8.25-15 |
1). Packaging Details: As per buyer's requirement
2). Delivery Details: Within 15 days after receiving the deposit
1). Wide range of tires
2). Top quality
3). Fast delivery
4). Competitive price
5). Super warranty and service
6). Certificates: ISO9001, DOT, INMETRO, SONCAP, SNI, NOM, GCC etc
